Black PVC adhesive tape electrical insulator tape
- 100000 Roll / Rolls per Month
- xingang ningbo shanghai etc.
- T/T Credit Card
You May Like
-
PVC Electrical Insulation Vinyl Adhesive Tape
-
Good Quality Multicolor PVC Electrical Insulation Tape
-
PVC Electrical Insulation Tape with Good Resistant
-
PVC Electrical Insulation Tape High Adhesive for Insulating Wrapping
-
PVC Adhesive Tape PVC Electrical Insulation Wrapping Tape
-
Black PVC Electrical Insulation Adhesive Tape
Product Details
Place of Origin | Hebei, China | Brand Name | hangteng | |
Model Number | HT-P-285 | Type | Insulation Tape | |
Material | PVC | Application | High Voltage | |
Rated Voltage | 600V | Tensile Strength | 18N/cm |
Product Description

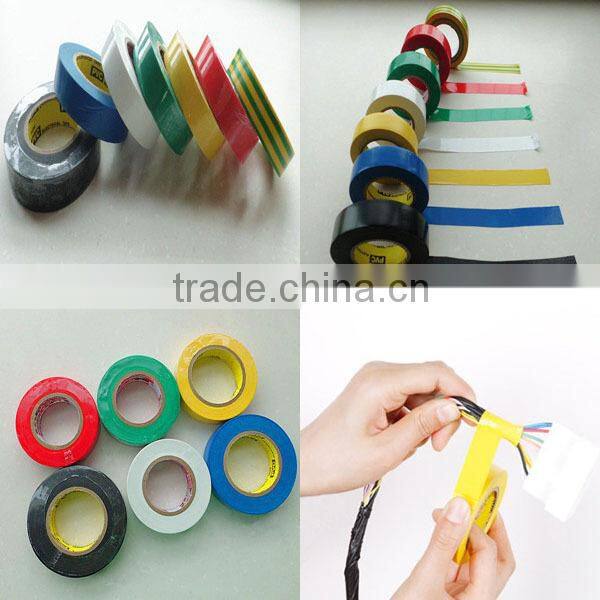

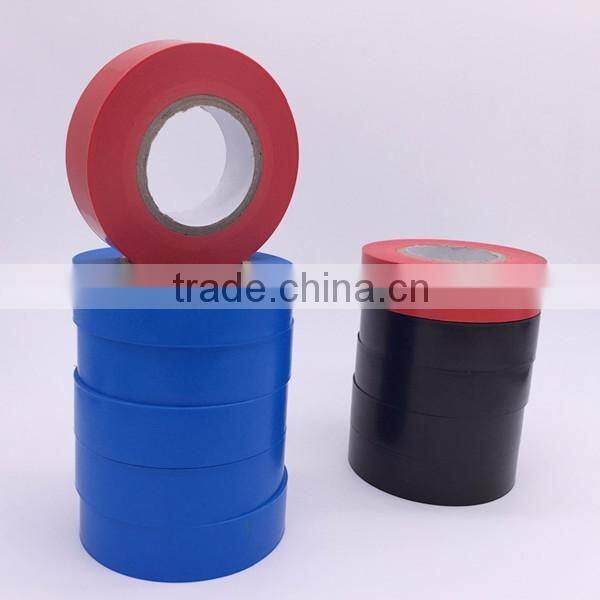

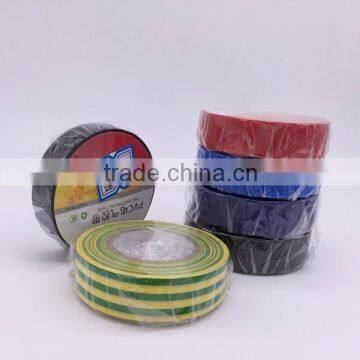

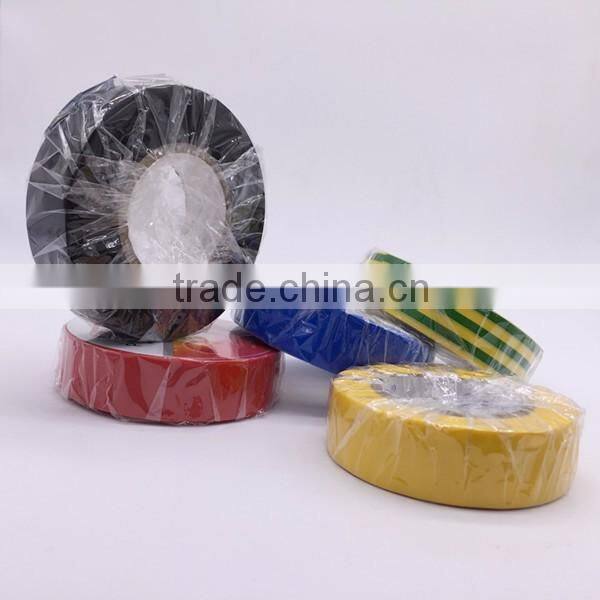

Black PVC adhesive tape electrical insulator tape
PVC tape,electrical quality(600V), is made from soft pvc film as backing material,
coated with rubber pressure-sensitive adhesive which allows it to be streched for easier application. Working temperature from -18°C to +80°C. It is specially conceived for professional electrical insulating applications where environmental safety is concerned.
PVC Tape Characteristics:
• Length: 5m-20m
• Width: 15mm-50mm
• Thickness: 0.12mm-0.20mm

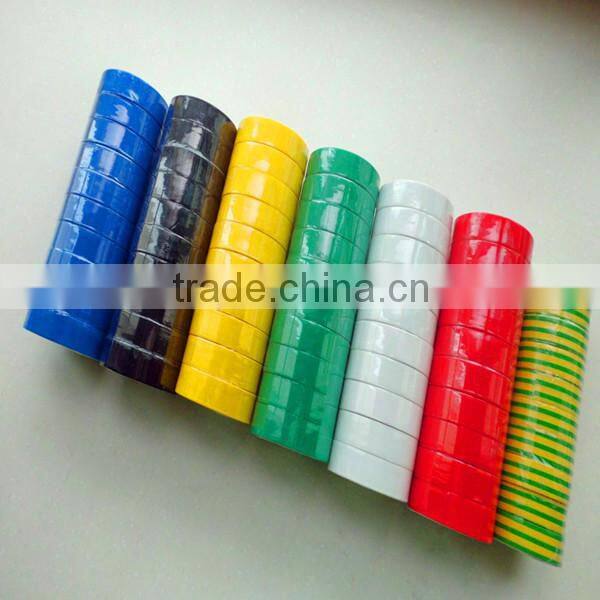

• Color: black,white,yellow,blue,green,red,yellow-green.
PVC Tape Technical Data:
Property | Unit | HT12 | HT13 | HT15 | HT18 | Testing method |
Total thickness | mm | 0.12 | 0.13 | 0.15 | 0.18 | ASTM D1000 |
Tensile strength | N/cm | 18 | 20 | 22 | 26 | ASTM D1000 |
Elongation | % | 160 | 180 | 190 | 200 | ASTM D1000 |
Adhesion to steel | N/cm | 1.5 | 1.5 | 1.5 | 1.5 | ASTM D1000 |
Temperature rating | °C | 80 | 80 | 80 | 80 | ASTM D1000 |
PVC Tape Marks: Different sizes and OEM service are available. Pls Inquiry for more information.

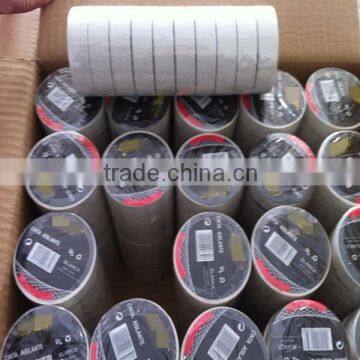

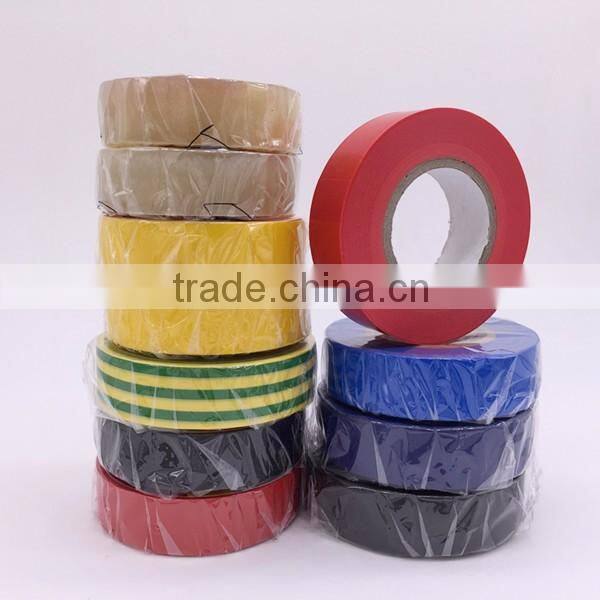

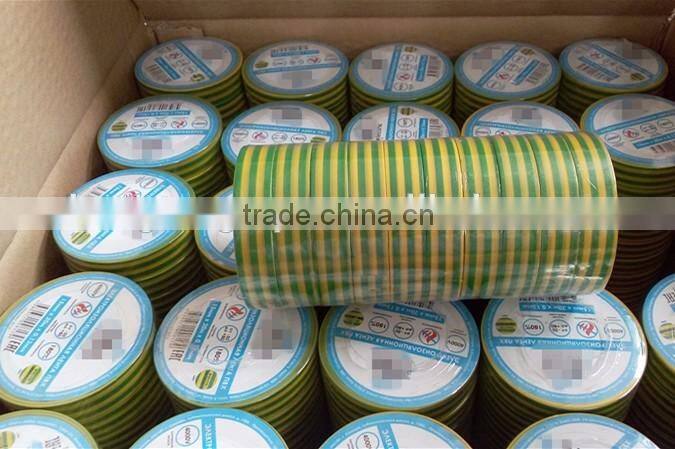

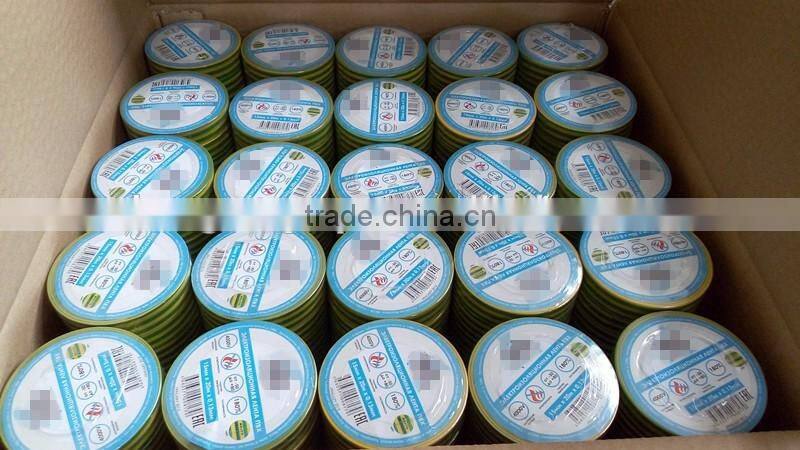

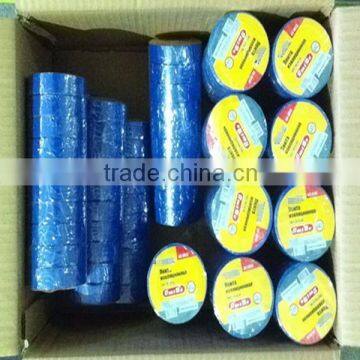

PVC Tape Packing: Each roll shrink or wrap individually, 10rolls per tower,250/ 500rolls per box. or as your request.
PVC Tape workshop:
PVC Tape warehouse:
1. Different sizes and OEM service are available.
2. Reply your inquiry in 2 hours.
3. Exclusive and unique solution can be provide to our customer by our well-trained, professional
engineers and staffs.
4. Free sample can be provided for your check.
5.Special discount and protection of sales area provided to our distributor.
6.Timely delivery.
7.Good after-sale service.
1.Payment Terms?
Contact : Bobo
Skype: ht.bobo206 QQ: 2073207551 Whatsapp/We-chat: +86-18932904206
Email: bobo at
Web: , http://hangtengtape.en.china.cn/ .
