Monel 400/UNS N04400/NiCu30Fe Woven Wire Mesh Screen

FOB Price

US$ 19.40 - 26.30 / Square Meter

1 Square Meter(Min. Order)

Port Tianjin
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Material	Stainless Steel Wire
Type	Weave Wire Mesh	Application	Filters
Weave Style	Plain Weave	Wire Diameter	0.025-2.03mm
Technique	Woven	Model Number	BOLIN-s580061
Brand Name	Bolin

Product Description

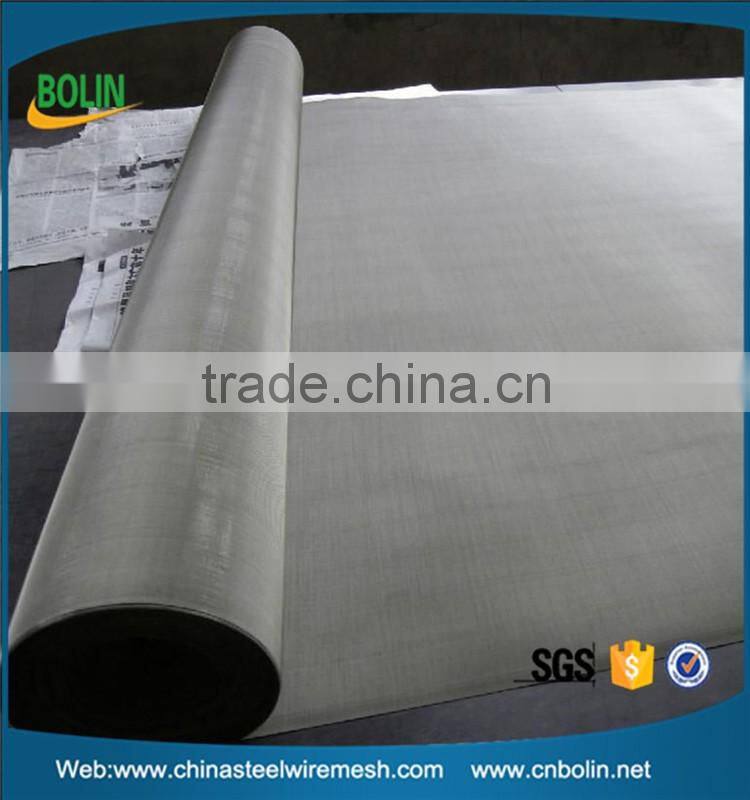

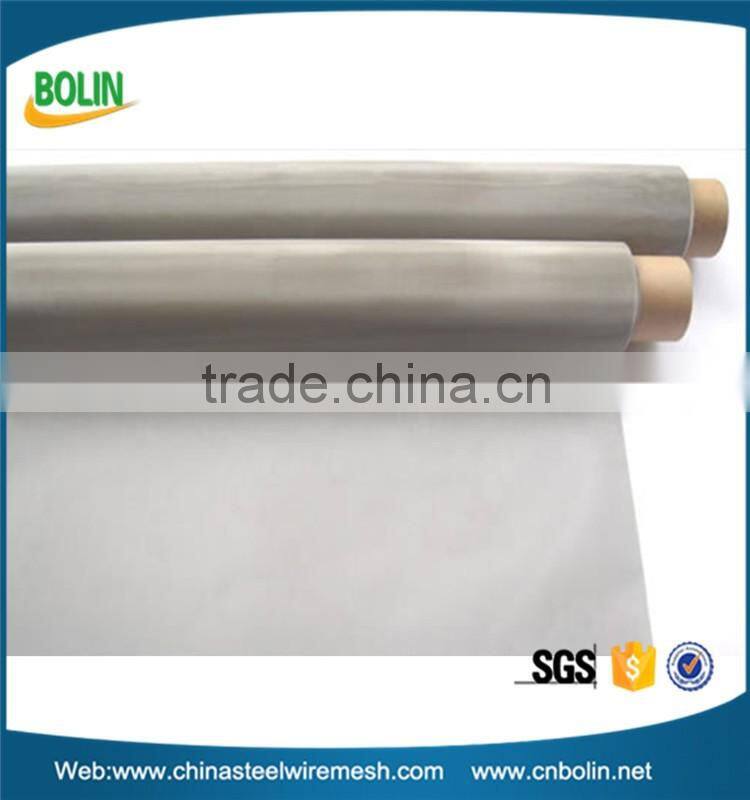

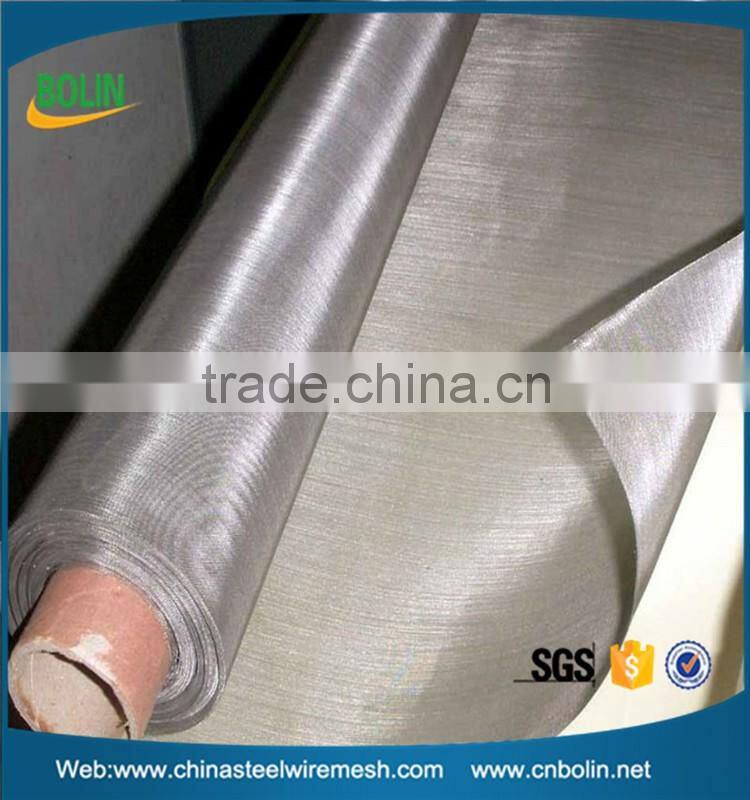

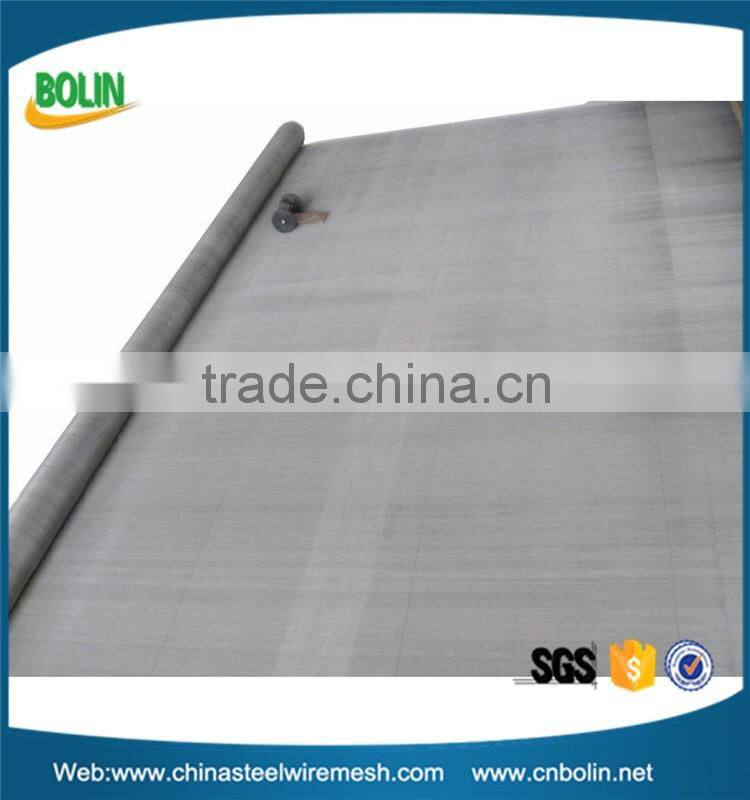

Monel 400/UNS N04400/NiCu30Fe Woven Wire Mesh Screen

Product Description

1. Details

Monel wire cloth is a kind of nickel based material woven wire mesh, containing minimum 63% Nickel and 28% Copper.

material of the monel wire cloth/mesh:monel 400 k500

mesh counts:from 1-200mesh/inch

micron size:10-1000microns,also we can customize weaving.

feature of the monel wire mesh/cloth

Nickel Alloy 400- Copper alloy, containing minimum 63% Nickel and 28% Copper
Corrosion resistance and strength
Marine and chemical environments
"Exclusive"-Monel Insect Screen

usage of the monel wire mesh/cltoh:

used for sea water evnironments

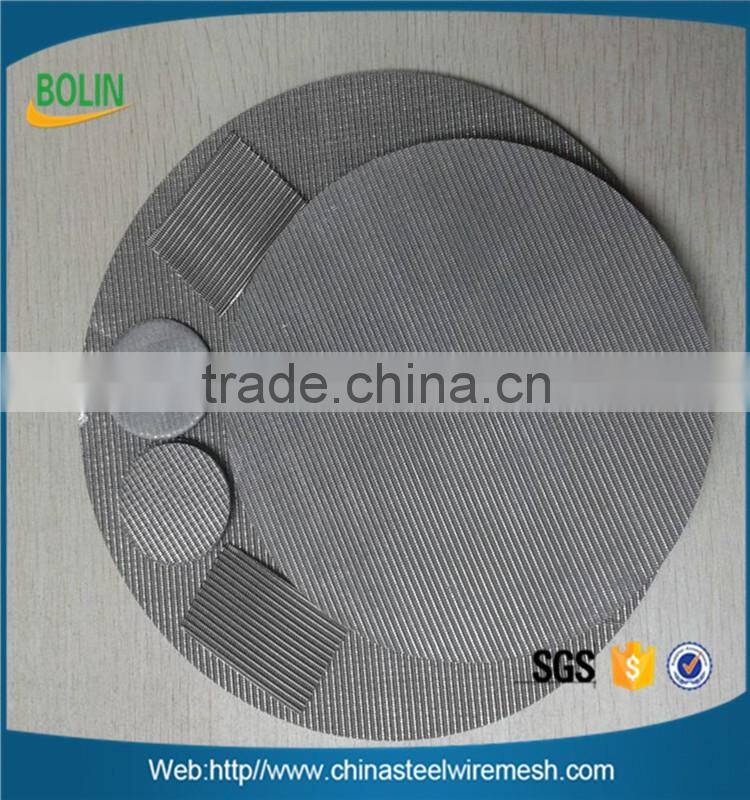

used for filters:like dintered filter disc, filter cylinder, filter disc etc
used in acid and alkali conditions

material	monel 400 k500
wire diameter	0.025-2.03mm
weaving type	plain weave,twill weave,dutch weave,etc.
mesh counts	1-200mesh
technique	woven wire mesh
mesh rolls size	1x30m 2x30m 1.524x30m 0.914x30m etc.
surface	smooth
hole shape	square
feature	acid resistance,alkali resistance,temperature resistance
Delivery Detail	7-20 days after receiving the 30% deposit or as required

2.Size

stainless steel wire mesh
Mesh/Inch	Wire diameter (mm)	Aperture (mm)	Mesh/Inch	Wire diameter (mm)	Aperture (mm)
1 mesh	5.00×5.00	20.40	18 mesh	0.35×0.35	1.06
2 mesh	1.80×1.80	10.90	20 mesh	0.30×0.30	0.97
3 mesh	1.60×1.60	6.87	30 mesh	0.25×0.25	0.60
4 mesh	1.20×1.20	5.15	40 mesh	0.21×0.21	0.43
5 mesh	1.00×1.00	4.08	50 mesh	0.19×0.19	0.32
6 mesh	0.80×0.80	3.43	60 mesh	0.15×0.15	0.27
7 mesh	0.70×0.70	2.93	70 mesh	0.14×0.14	0.22
8 mesh	0.65×0.65	2.53	80 mesh	0.12×0.12	0.20
10 mesh	0.60×0.60	1.94	100 mesh	0.10×0.10	0.154
12 mesh	0.50×0.50	1.62	120 mesh	0.08×0.08	0.132
14 mesh	0.45×0.45	1.36	150 mesh	0.065×0.065	0.104
15 mesh	0.40×0.40	1.29	200 mesh	0.050×0.050	0.077
16 mesh	0.40×0.40	1.19	250 mesh	0.040×0.040	0.062

3. Weave Type

Detailed Images

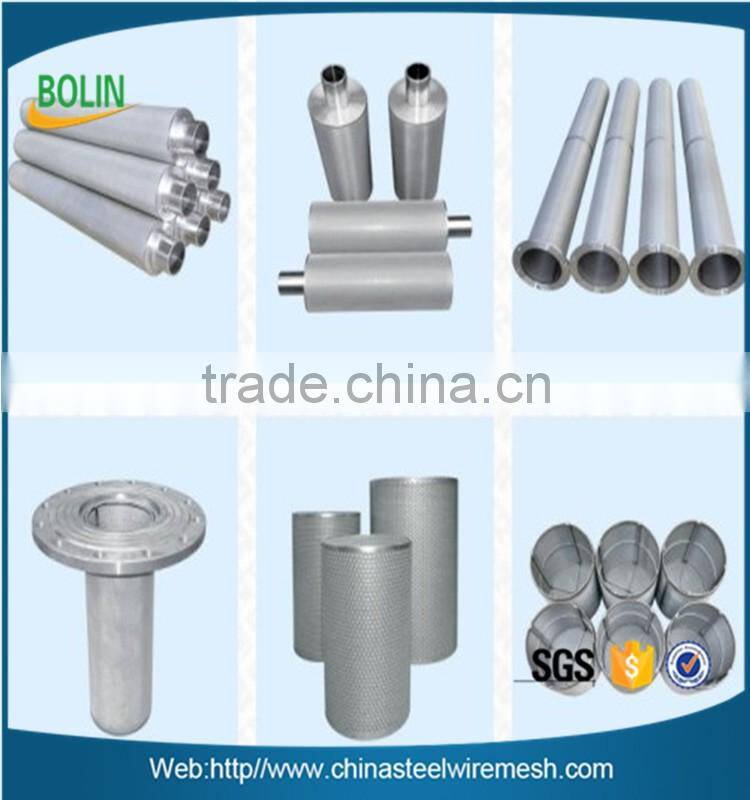

Deep-processing products

Production Process

Packaging

Certifications

Our Services

OEM	Yes
Special Sizes or Shape	Yes
Customized packing	Yes
Sample	Can be offered or Made
Delivery time	7-20 days after received the advance payment
Payment terms	T/T, Western Union, PayPal, Escrow, L/C,etc
Optional Way of Transportation	Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS
