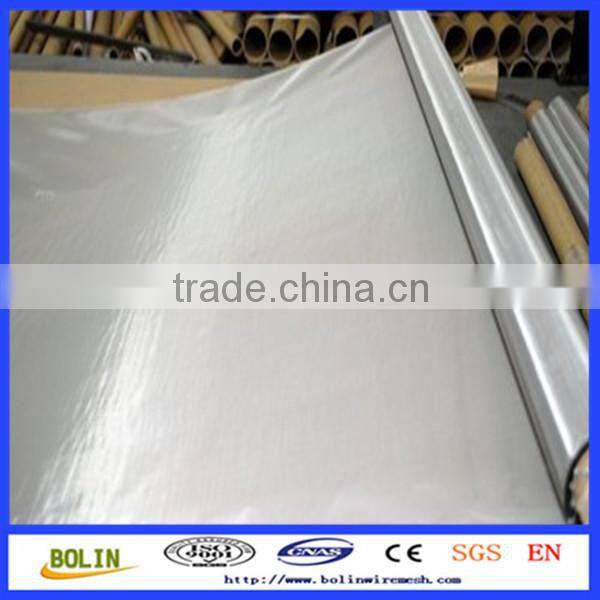

Cr20Ni35 nichrome square metal wire mesh fabric (free sample)
|
Material
|
Nichrome wire Cr20Ni80, Cr15Ni60, Cr20Ni35 |
|
Mesh counts
|
2-100 |
|
Wire diameter
|
0.07-2.0mm |
|
Common width
|
0.1-1.5m |
| Length | 30m |
| Feature |
Nichrome wire mesh has following features: Good ductility. High tensile strength. Oxidation resistance. Sulfur resistance. Permeability resistance. Superior elongation. Non-magnetic. High temperature resistance.
|
| Application |
Nichrome wire mesh is widely used in the aerospace, shipbuilding, war industry, chemical machinery, electric power, desalination, medical apparatus and instruments.
|
Nichrome Wire Mesh(NiCr wire mesh) | ||
Mesh/Inch |
Wire Gauge(SWG) |
Aperture(mm) |
3 |
14 |
6.27 |
4 |
16 |
4.27 |
5 |
18 |
3.86 |
6 |
18 |
3.86 |
8 |
20 |
2.26 |
10 |
20 |
1.63 |
20 |
30 |
0.95 |
30 |
34 |
0.61 |
40 |
36 |
0.44 |
50 |
38 |
0.36 |
60 |
40 |
0.30 |
80 |
42 |
0.21 |
100 |
44 |
0.172 |
OEM |
Yes |
Special Sizes or Shape |
Yes |
Customized packing |
Yes |
Sample |
Can be offered or Made |
Delivery time |
Usually within 7-15 working days |
Payment terms |
T/T, Western Union, PayPal., Escrow, L/C |
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,FEDEX,UPS,EMS |

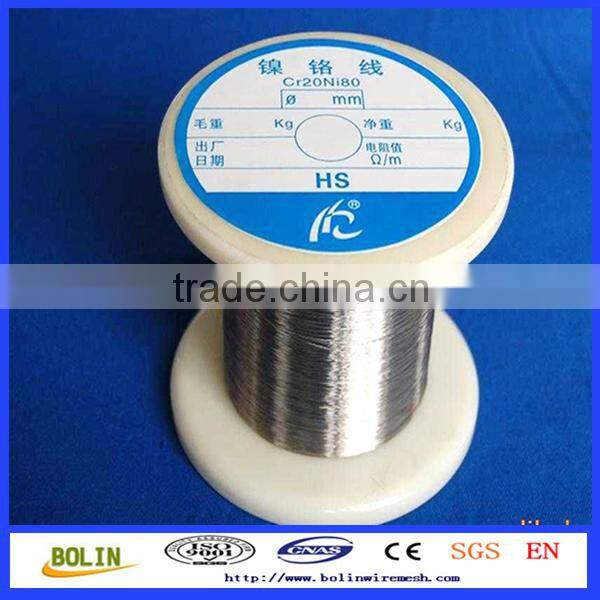

Material picture
Production process picture

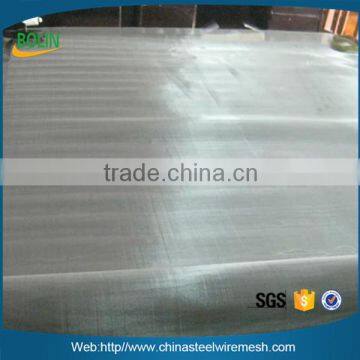

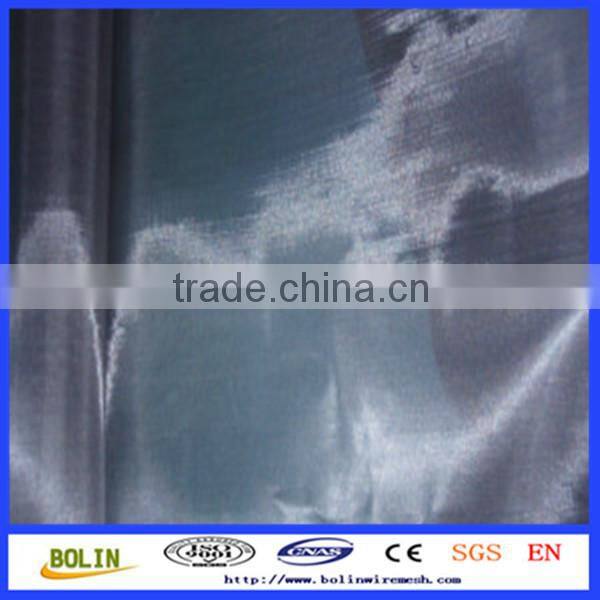

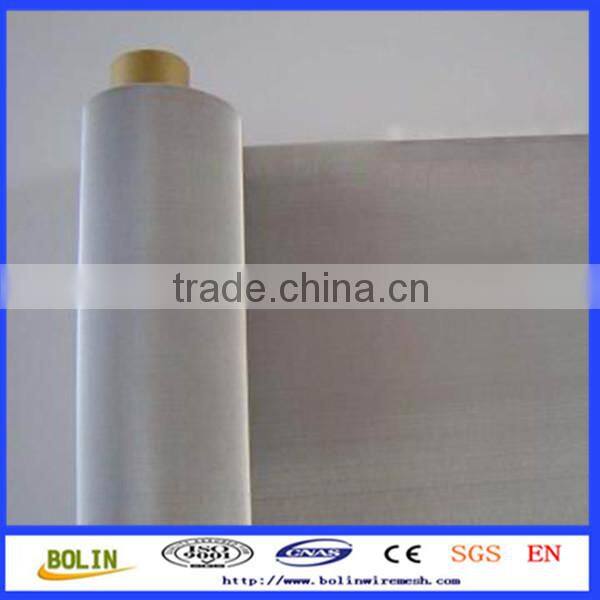

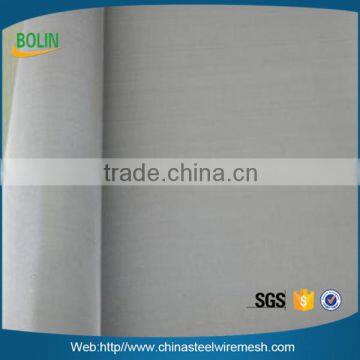

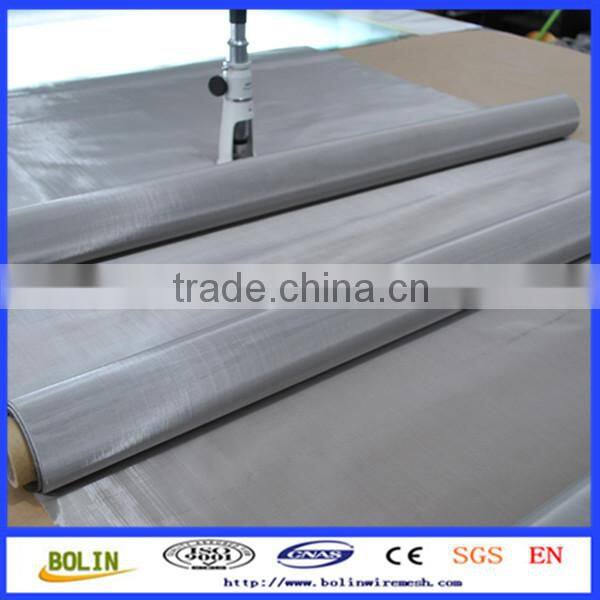

Finished product pictures

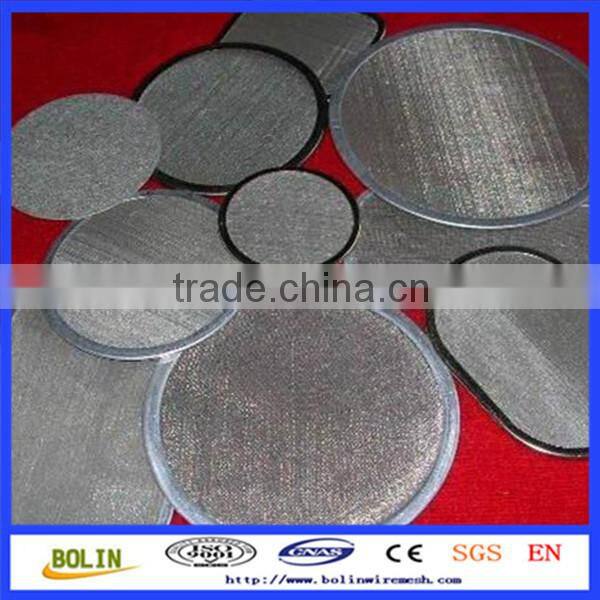

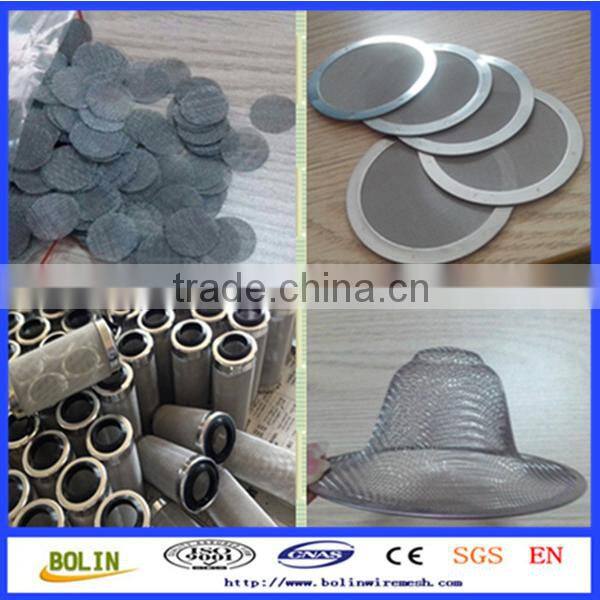

Product usage pictures

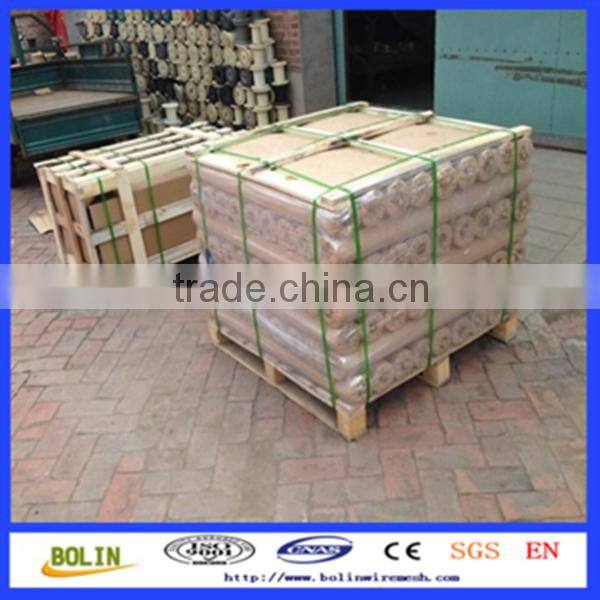

Product packing picture
Company profile : Anping County Bolin Metal Wire Mesh Co.,Ltd is located in Anping ,which is home to wire mesh .It is a comprehensive factory of manufacturing , marketing, importing and exporting with more than 10 years’history .Our products are exported to Europe,Asia,Africa and hot selling in many other countries and regions.
Company feature : With advanced equipment ,abundant technology,scientific processing and perfect quality inspection system,our product are made according to GB11953-89 internation JISG and other standards .Our product passed ISO9001 internation quality control systems authentication.
Main products:Stainless steel wire mesh ,Copper wire mesh,Pure nick wire mesh,Nichrome wire mesh,Monel wire mesh,FeCrAl wire mesh,Inconel wire mesh,Titanium wire mesh,Sintered wire mesh and so on.
Our tenet :Quality first,credit standing paramountcy,price in reason, delivery in time.We are willing to know more and more customers based on mutual benefit.
Professional & experienced factory(over 20 years)
Professional design team& excellent sales team for your service;
Quick delivery& superior quality
Alibaba golden supplier& SGS report
Thanks for your time to visit us, any of your kind inquiry will be highly appreciated all
the time.
