automatic terminal crimping machine tool

Specifications

1.HT automatic terminal crimping machine
2.Power of main motor: 4KW
3.Width of machine: 1.3m
4.Payment: T/T
5.Control system



 automatic terminal crimping machine





Technical specification about the hydraulic roof curving machine:



Thickness of middle plate	20mm
Diameter of shaft (solid shaft)	70mm
Material of shaft (solid shaft)	(high grade) 45# Steel,quenching and tempering treatment
Material of roller	45# Steel
Reducer	3# cycloid reducer (high grade)
Power of main motor	4KW
Line speed	about 9 m/min
Voltage	380V/50Hz/3phase
Appearance size	2.1m(length)*0.8m (width) *1.4m (height)

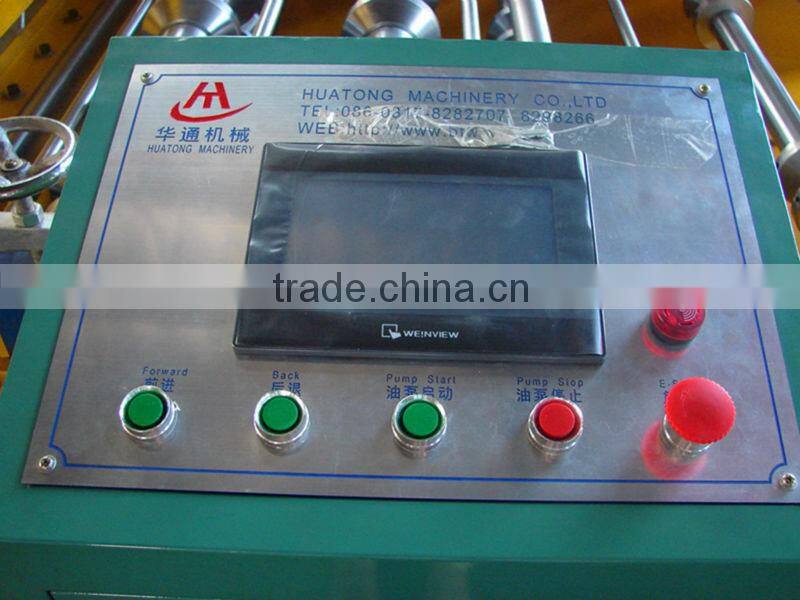

Electrically controlled system	entire machine controlled by PLC
Electrical parts	DELTA

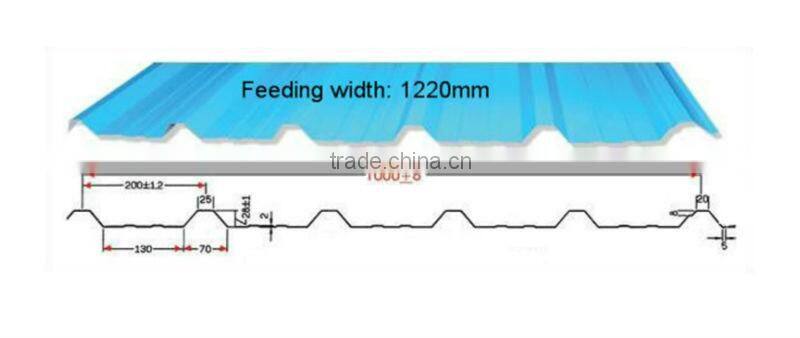

profile of hydraulic curving machine









1)        Wave height : 28mm

2)        Centre to centre distance between two waves : 200mm

3)        Effective width : 1000mm

4)        Feeding width : 1220mm

5)        Thickness of formed steel : 0.3mm-0.8mm

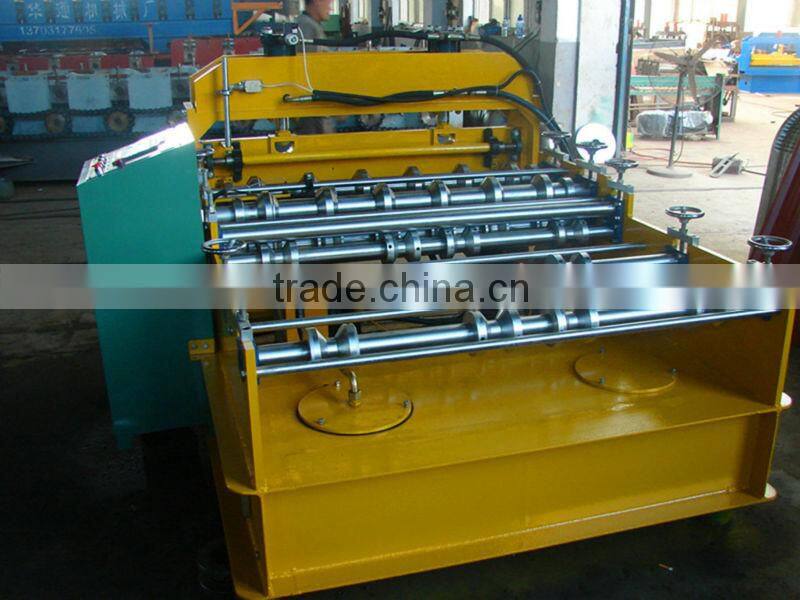

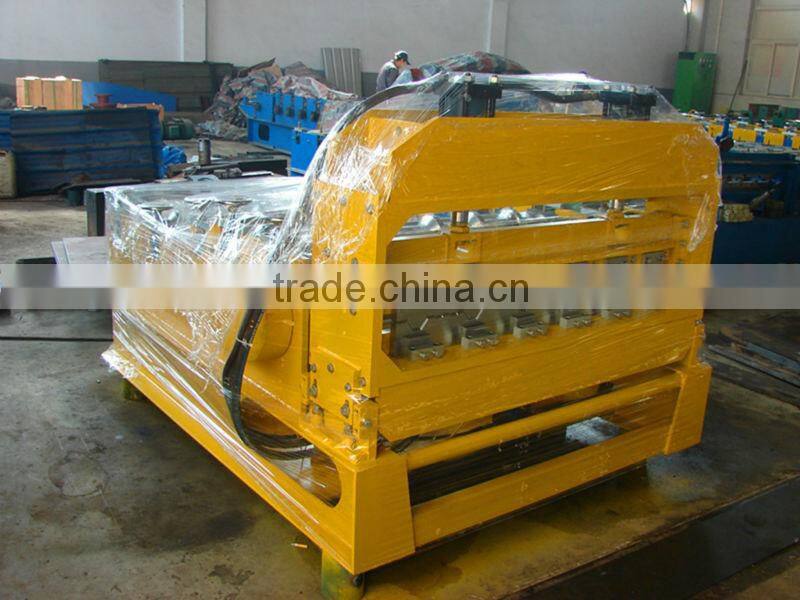

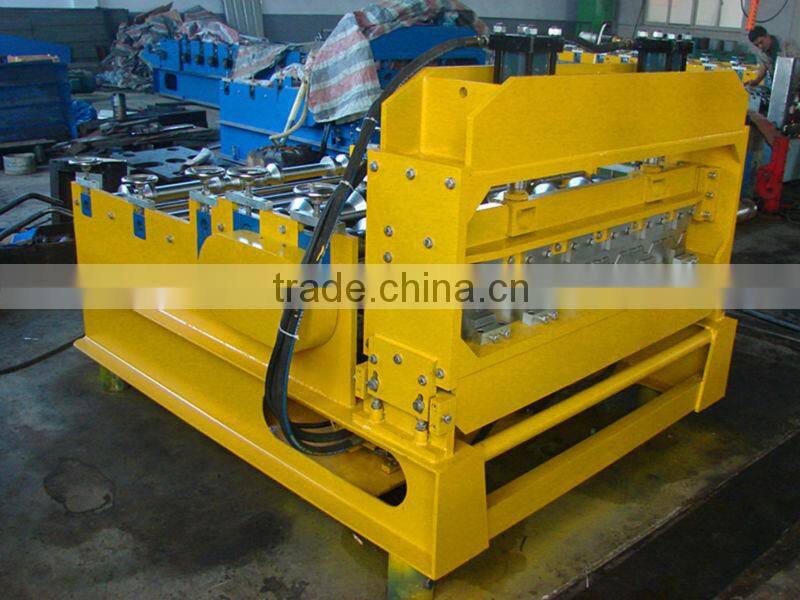

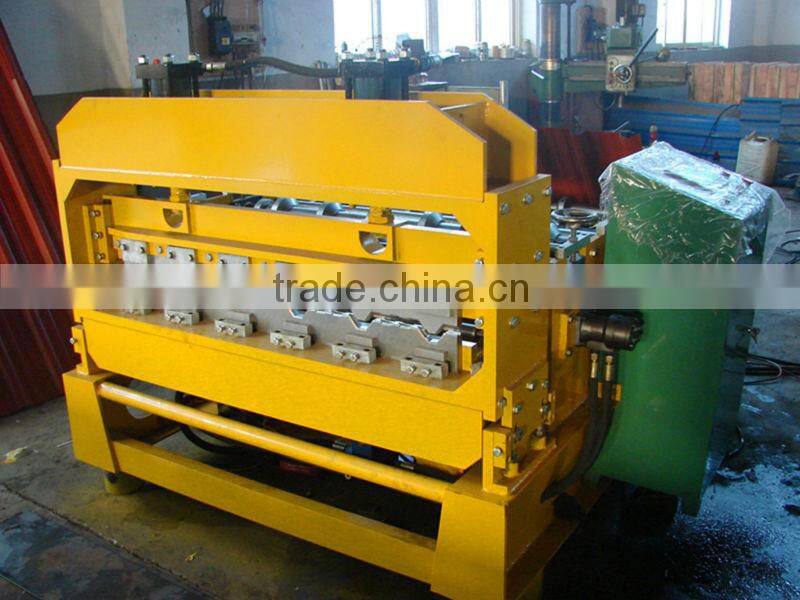

Picture of  hydraulic roof curving machine





























About Huatong roll forming machine factory





Picture 1



Picture 2





Picture 3





Picture 4

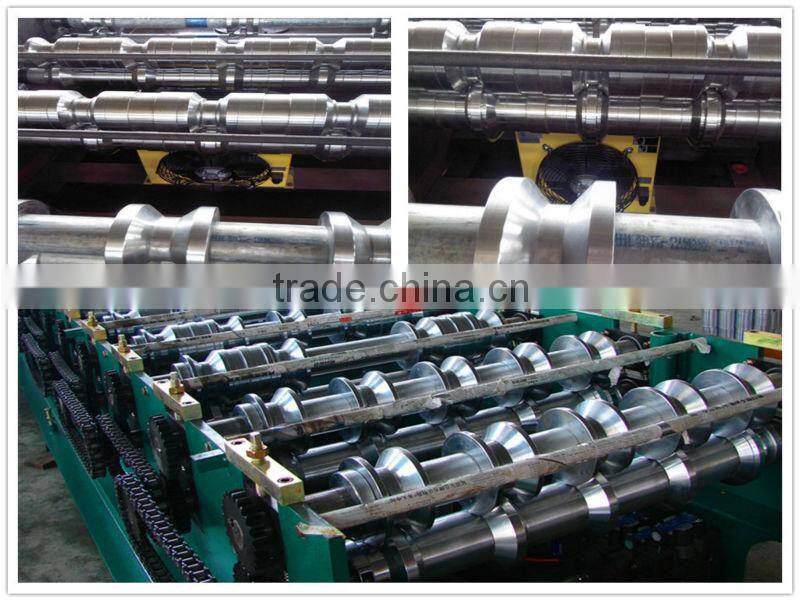

Details production about our roll forming machine:

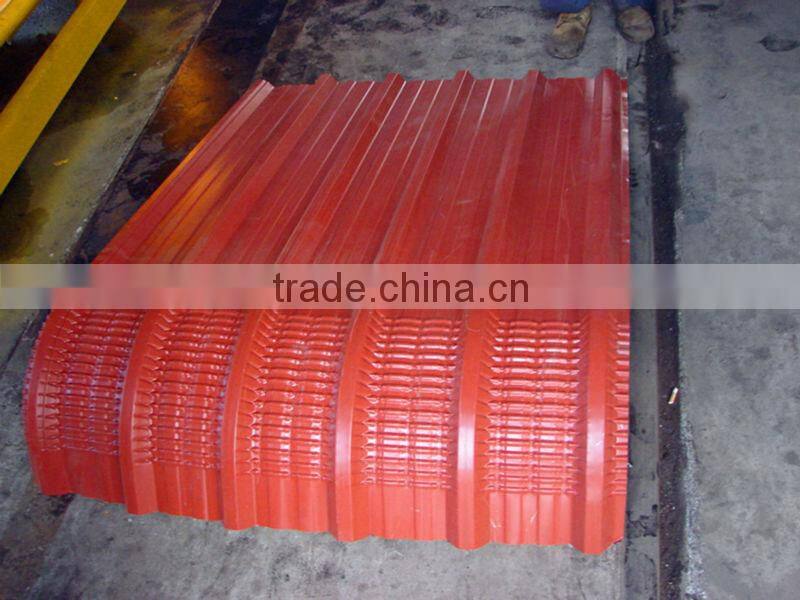

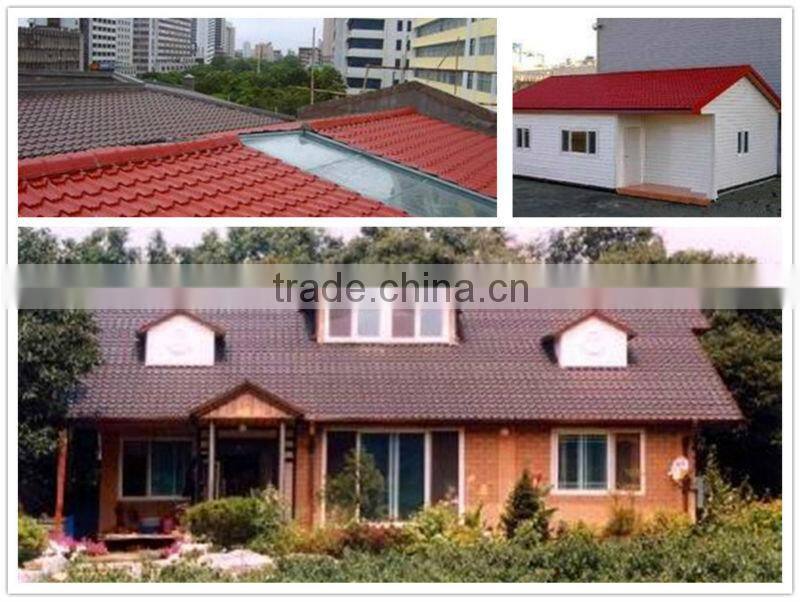

Usage about all kinds roof panel produced by roll forming mahcine:





Hot sales roll forming machine for your reference;









 Note : we can customize the design and fabrication on the particular type of machine according to the request of customer.
