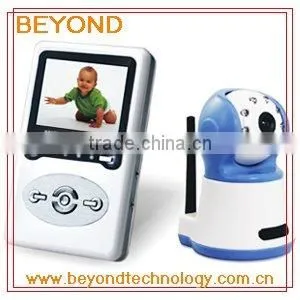

4 Channel 2.4ghz Wireless Baby Monitor With 2.4" LCD Receiver Rechargeable Battery

4 Channel 2.4ghz Wireless Baby Monitor With 2.4" LCD Receiver Rechargeable Battery thumbnail-1
4 Channel 2.4ghz Wireless Baby Monitor With 2.4" LCD Receiver Rechargeable Battery photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Beyond
Model Number:
CX-B386D1
Contact Supplier Request Quote Chat Now
Shenzhen Beyond Security Technology Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Beyond
Model Number CX-B386D1
Style Mini Camera
Sensor CMOS
Technology Infrared
Type Other, Wireless Camera

Specifications

Baby monitor
1. 4 Channel
2. Auto Awake and Sleeping function
3. Two way speaker
4.200M transmitting range in open area

4 Channel 2.4ghz Wireless Baby Monitor with 2.4" LCD Receiver Rechargeable Battery

Model:CX-B386D1



>Digital wireless security kit
>High resolution picture
>Stable signal and anti-jamming technology
>200M transmitting range in open area
>Receiver and camera talk to each other
>Built-in rechargeable Li-battery lasts for 3 hours



Product Function:

1. 4 Channel 2.4ghz digital wireless baby monitor
2. Auto Awake function
3. Sleeping function
4. Two way speaker
5. 200M transmitting range in open area
6. Remotely Zoom in&out camera
7. For perfect view from handheld receiver
8. Handheld receiver with Zoom in&out controller.
9. No interference!
10.Including large 2.4" full Color LCD display.
11.8 LED lights with 10m night vision range,
12.Transmission distance is up to 200 meters without block,
13.Two-way speaker

14.Up to 4 cameras baby monitor.

15,4 channel 2.4ghz digital wireless camera CX-B386D1

16.If the product is out of the distance of transmission,antenna indication will blink for connecting adapter circumscribe or useing the battery.It will show low power or charge indication.



Technical parameter:

Project
Parameter
 Receiving Frequency
 2.400GHz~2.483GHz
 TV System
 PAL/NTSC(AUTO SWITCH)
 Modulation Model
 FSK
 Working Temperature
 -20~60°C / -10~50°C
 View angel(U/D/L/R) (CR>10)
 10 / 30 / 45 / 45(Min)
 Valid Pixel(dot)
 480(W) x 240(H)
   Camera
 TV System
 PAL
 NTSC
 Valid Pixel
 628(H) x 82(V)
 510(H) x  492(V)
 Image Device
 1/4" CMOS Picture Sensor
 Horizontal Definition
 380TV  Line
 Transmission Signal
 Video & Audio
 Minimum Illumination
 3Lux/F1.2
 Scan Frequency
 PAL/CCIR: 50Hz       NTSC/EIA:60Hz
 Transmission Distance
 200M
 Power Supply
 DC5V/800mA
 Transmission Power
 17dBm
 Transmission Frequency
 2.400GHz~2.483GHz
   Receiver
 Sensitivity
 ≤-85dBm
 LCD
 2.4' TFT LCD
 Power Off
 when battery is below 3.3V,it will be off automatically
 Power Supply
 DC5V/800mA
 Size
 123 x  72 x 24mm
 Weight
 200g
 Transmission Signal
 Video & Audio
 Battery
 Build-in 3.7V/350mAh Li-Battery
 Power Consumption
 ≤3W



Package include:

  • 1pc Camera
  • 1pc Receiver
  • 1pc earphone
  • 2pcs power adapters
  • 1pc user manual
