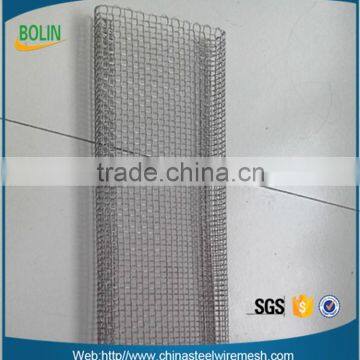

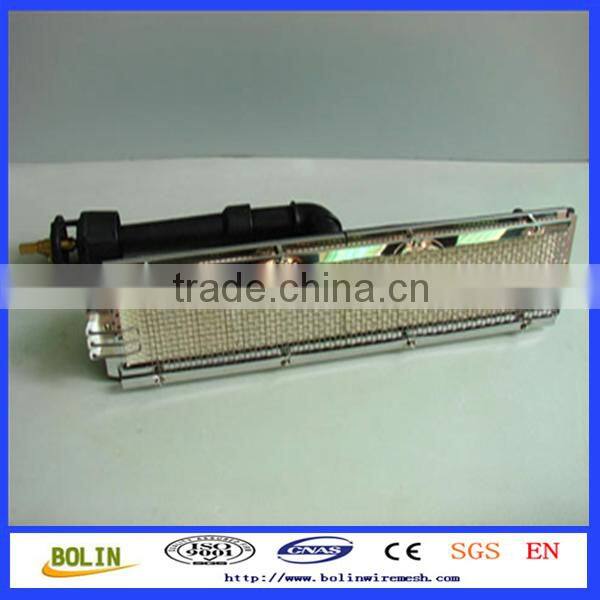

8 mesh plain woven FeCrAl wire mesh screen (free sample)
|
Material type
|
1Cr13AL4, 1Cr12AL4, 0Cr21AL6, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb, 0Cr27AL7Mo2 |
|
Wire diameter
|
0.06-2.53mm |
|
Mesh counts
|
1-200 mesh |
|
Weave style
|
plain weave ,twill weave |
| Feature |
FeCrAl wire mesh is also called FeCrAl alloy woven wire mesh, heating resistance alloy woven wire mesh, electro thermal alloy mesh. It has features of Heating resistance; Oxidation resistance; Sulfur resistance; Anti-penetration; High surface load; High electrical resistivity; Long lasting and durable
|
| Application |
The FeCrAl wire mesh is mainly used as the drying and heating equipment in metallurgy, colliery, dyeing, food factory, hospital, high density board factory and so on. The FeCrAl wire mesh is an ideal heating resistance material in the industry electric furnace, household appliances, gas burners and infrared device.
|
1Cr13Al4 - 950°
1Cr21Al4 - 1100°
0Cr21Al6 - 1250°
0Cr23Al5 - 1250°
0Cr25Al5 - 1250°
0Cr21Al6Nb - 1350°
0Cr27Al7Mo2 - 1400°
Specification
|
Aperture mm
|
Wire Diameter mm
|
Roll Width m
|
Weight kg/m2
|
|
Mesh
|
Wire Gauge
|
||||
8(T)
|
21
|
2.375
|
0.8
|
1.0
|
2.5
|
8(T)
|
22
|
2.475
|
0.7
|
1.0
|
1.84
|
10(T)
|
23
|
1.94
|
0.6
|
0.6
|
1.69
|
12(T)
|
24
|
1.557
|
0.559
|
1.0
|
1.8
|
17(T)
|
24
|
0.94
|
0.55
|
0.6
|
2.57
|
20(P)
|
33
|
1.02
|
0.25
|
1.0
|
0.587
|
20(P)
|
32
|
1.0
|
0.27
|
1.0
|
0.685
|
20(P)
|
30
|
0.97
|
0.30
|
1.0
|
0.846
|
25(P)
|
30
|
0.71
|
0.30
|
1.0
|
1.125
|
30(P)
|
38
|
0.69
|
0.15
|
1.0
|
0.30
|
34(P)
|
33
|
0.49
|
0.25
|
1.0
|
1.06
|
40(P)
|
35
|
0.425
|
0.21
|
1.0
|
0.83
|
40(T)
|
35
|
0.425
|
0.21
|
1.0
|
0.83
|
44(T)
|
35
|
0.367
|
0.21
|
1.0
|
0.88
|
60(T)
|
38
|
0.273
|
0.15
|
1.0
|
0.66
|
80(P)
|
43
|
0.227
|
0.09
|
1.0
|
0.324 |
OEM |
Yes |
Special Sizes or Shape |
Yes |
Customized packing |
Yes |
Sample |
Can be offered or Made |
Delivery time |
Usually within 7-15 working days |
Payment terms |
T/T, Western Union, PayPal., Escrow, L/C |
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,FEDEX,UPS,EMS |

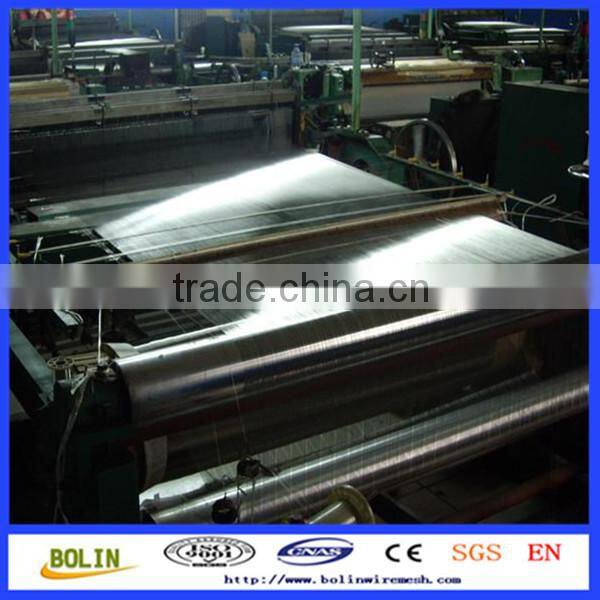

Production process picture

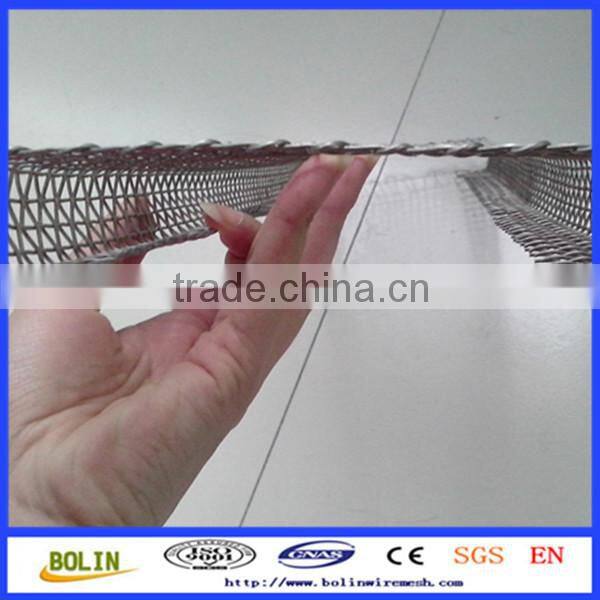

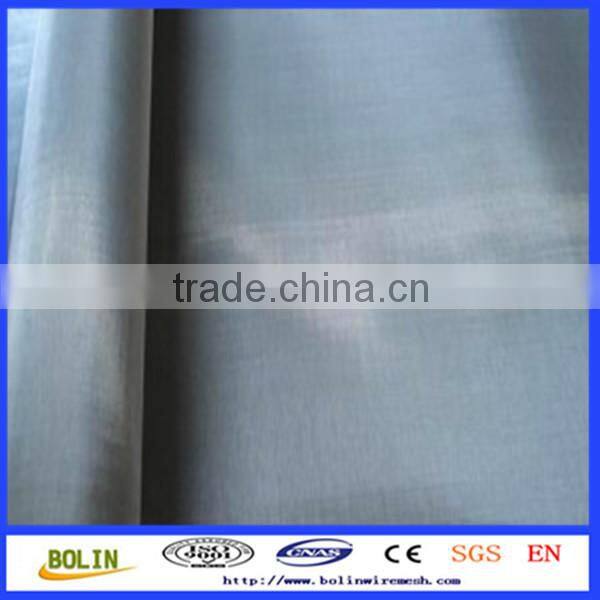

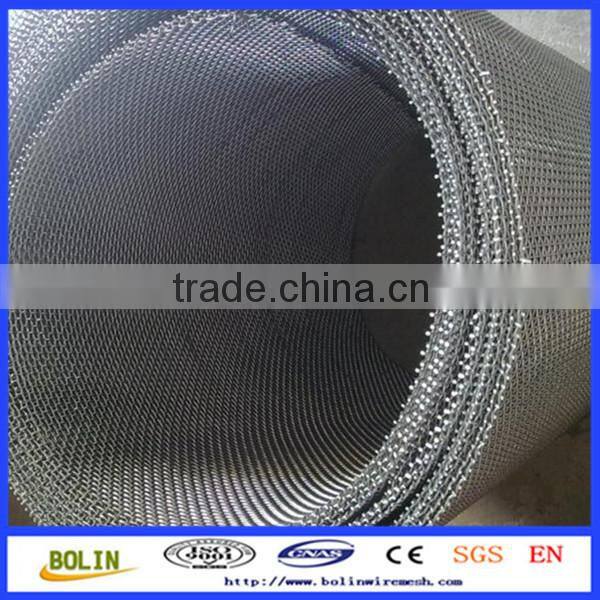

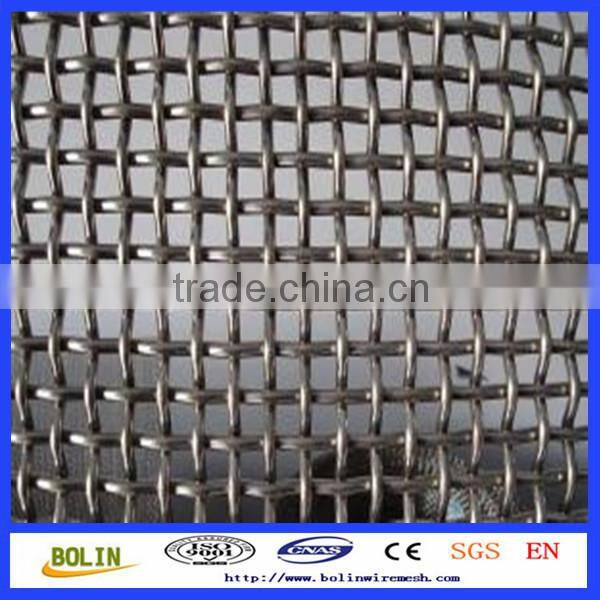

Finished product picture

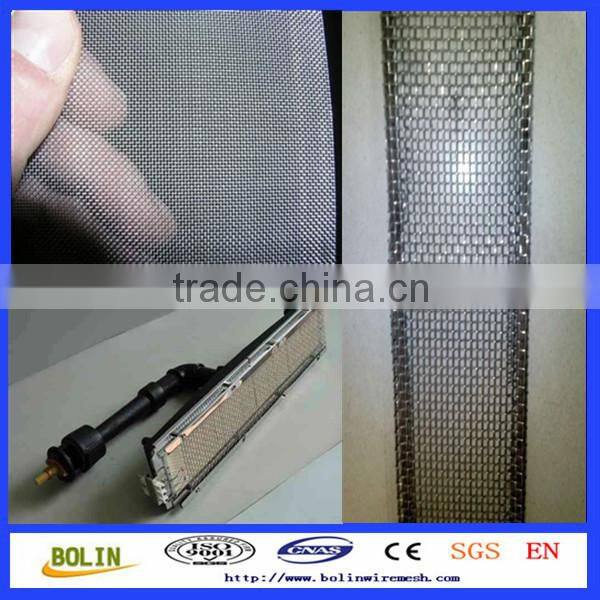

Product usage picture

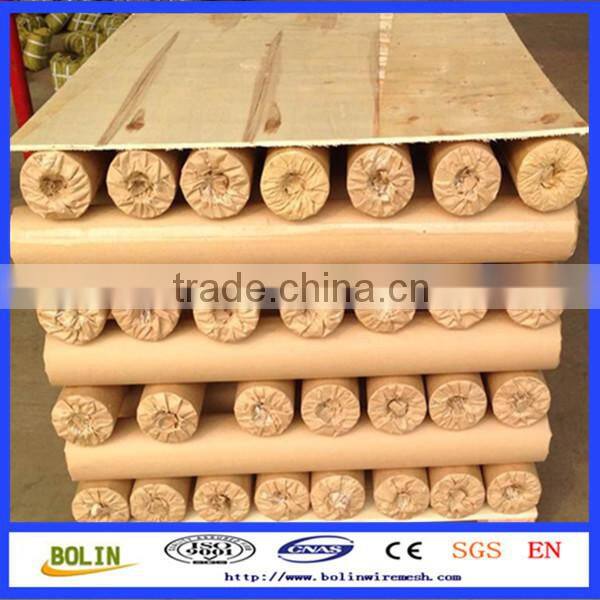

Product packing picture
Company profile : Anping County Bolin Metal Wire Mesh Co.,Ltd is located in Anping ,which is home to wire mesh .It is a comprehensive factory of manufacturing , marketing, importing and exporting with more than 10 years’history .Our products are exported to Europe,Asia,Africa and hot selling in many other countries and regions.
Company feature : With advanced equipment ,abundant technology,scientific processing and perfect quality inspection system,our product are made according to GB11953-89 internation JISG and other standards .Our product passed ISO9001 internation quality control systems authentication.
Main products:Stainless steel wire mesh ,Copper wire mesh,Pure nick wire mesh,Nichrome wire mesh,Monel wire mesh,FeCrAl wire mesh,Inconel wire mesh,Titanium wire mesh,Sintered wire mesh and so on.
Our tenet :Quality first,credit standing paramountcy,price in reason, delivery in time.We are willing to know more and more customers based on mutual benefit.
We are specialized in kinds of woven wire mesh and related deep processing products since 2004, such as stainless steel wire mesh, copper wire mesh, nickel wire mesh, filter tube, filter cap and so on. Want to know our quality and service, Want to seize more market shares, please contact us now.
Thanks for your time to visit us, any of your kind inquiry will be highly appreciated all the time.
