Home > Security & Protection > Alarm & Security Systems > Alarm > Cheap Quartz Battery Alarm Clock Movement

Cheap Quartz Battery Alarm Clock Movement

Name: Cheap Quartz Battery Alarm Clock Movement
Brand: Beyond
SKU: 119230983

Cheap Quartz Battery Alarm Clock Movement thumbnail-1

Cheap Quartz Battery Alarm Clock Movement photo-1

US$ 66 - 85 MOQ: 2 Sets

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Beyond

Model Number:

CX-GEA4

Contact Supplier Request Quote Chat Now

Shenzhen Beyond Security Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Beyond

Model Number CX-GEA4

Usage Other, Home,Shops, Supermarkets, Engineering security etc

Cheap Quartz Battery Alarm Clock Movement

Model:CX-GEA4

Product Description

Basic Functions

1. LED Screen display looks nice and upgraded.
2. One-key arm function. Learning sensors to alarm host, very easy operation.

3. 4 Band GSM net-work. Support phone call alarm and SMS alarm.
4. 15 wireless zones (Each zone supports up to 4 sensors) + 1 dedicated zones for remote (Each zone supports up to 4 remotes or wireless keypad). 8 wired zones (each zone can be separately programmed, armed and disarmed) can be extended.
5. Upto 6 groups of telephone numbers can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.

6. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.

7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed via SMS.

8. Non-volatile chip, information stored automatically when off power.
9. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.

10.Built-in Li-Ion backup batter, available in ACDC. System self-check, alert of phone line disconnection, low backup battery power and no external power.
11. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call.
12. Supports CID uploading to CMS(Center monitoring Station),can user our GSM CID connector to have this function.
13. "Black Box" date record function. Can store up to 100 alarm event information and 100 arm/disarm history.

14.Wireless or wired siren are optional for louder alarming sound.

15.More functions can be realized with more optional accessories(Note: consultation in advance is necessary).

16.Featured Cheap Quartz Battery Alarm Clock Movement Provider: Beyond Technology Industrial Ltd

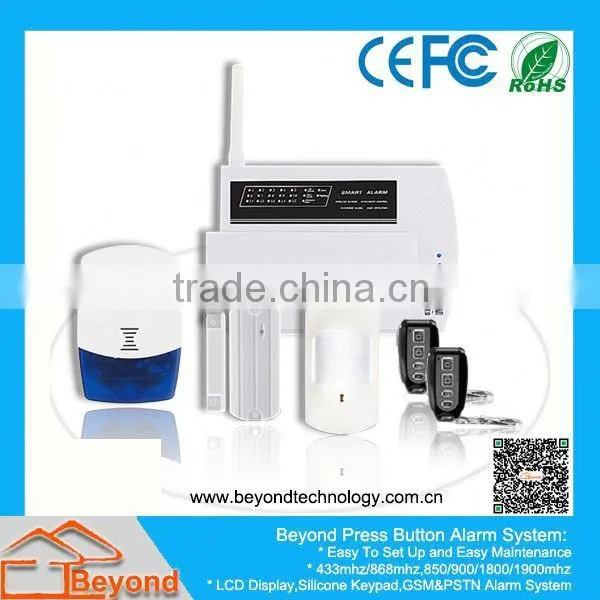

Host Panel Description

Working Principle

Technical Parameters

	Main Panel Specifications: Network: GSM Working Power: AC=110~230V, DC=12V 1A Stactic Current: <50mA (when not charging) Alarm Current: < 500mA Built-in Backup Battery:3.7V 800mAH(rechargeable) Standby: around 24 hours Full Charging time: 12 hours 4-band GSM: GSM 850/900/1800/1900MHz GSM Transmit Power:2W Receiving and emitting frequency: 433MHz Working Condition: Temperature:-10°C~50°C Humidity:<80% Product dimension:18012038 (mm)
	Wireless Door/Window Detector Features: Generally set as Perimeter zone If any door or window is opened, it will transmit the alarm signals to the alarm host Specifications: Operating power: 23A 12V alkaline battery Emission Frequency: 433MHz Static Current: ≤20 mA Transmission Current: ≤15mA Transmission Distance: 30m Internal Distance: 15 mm Working Condition: Temperature -10°C~+ 40 °C Humidity ≤ 90% rh
	Wireless PIR Detector Features: Mainly monitor and control indoor space, generally set as Motion zone When human body enters into detecting area, the sensor will transmit alarm signals to the alarm host Specifications: Opeation Power: 9V alkaline battery Static Current: ≤100 mA Transmission Current: ≤20mA Transmission Frequency: 433MHZ±0.5MHZ Transmission Distance: 30m Detective Speed: 0.3 - 3m/s Detective Distance: Maximun 10m Detective Range: Horizontal 110° Vertical 60° Working Condition: Temperature -10 °C~+ 40 °C Humidity ≤ 90 rh
	Remote Control Features: To control the alarm host to arm and disarm With the emergency key for urgent help Specifications: Operating power: 12V 27A alkaline battery Emitting distance: 30m Emission Current:12≤15 mA Emission Frequency:f=433±0.2 MHz Emission Speed:T≤1 second Working Environment: Temperature -10°C~+40°C Humidity≤90%
	Wireless Flash Siren Specification Model: Wireless Flash Siren Function : Blue Light and sound when triggered Frequency: 433MHz Installation: Indoor and NOT waterproof Volumn: 85dB Transmission Distance: 30m Dimension: 1006234mm Note: EU UK US is Blue light (defaulted) AU is Red light (defaulted)
