Economic Touch Keypad LED Wireless security system home alarm system

Specifications

Security system home alarm system
1.LED displays,Touch keypad
2.GSM net
3.Wireless doorbell
4.Advanced, Smart Design

Economic Touch Keypad LED Wireles security system home alarm system

Model:CX-GSM3



Brief Description:

1.LED displays, Touch keypad ,Upgrade design and Easy operation
2.5-ways of arm/disarm
3. GSM net-work
4.15 wireless zones, 1 dedicated zones ,8 wired zones optional

5. Wireless “Ding dong” doorbell.(optional)

6.One-key arm function, easy operation

7.Upto 6 groups of telephone numbers

8.Supports CID uploading to CMS

9.Low voltage indicators

10.Intelligent logic analysis technology

11.Built-in Li-Ion backup battery



Extended Functions:

1.Open and closed status(of door and window) mornitoring and alert.

2.Wireless “Ding dong” doorbell.

3. Wireless siren with sound and light.

4. Wireless DVR functions

5.8 wired zones

And more



Basic Functions:

1. Concise LED lights display looks nice and upgraded. More comfortable operation with touch keypad.

2. 2 /4 Band GSM net-work. Compatible with GSM network, reports alarm events by calling and SMS.
3. 15 wireless zones (Each zone supports up to 4 sensors) + 1 dedicated zone for remote (Supports up to 10 remotes)). 8 wired zones can be extended and each wired zone can be separately armed and disarmed.
4. Use SIM card, Upto 6 groups of telephone numbers (2 for management center,4 for personal) can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.

5. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call

6. Intelligent logic analysis technology, corresponding zone number can be displayed by LED lights. Corresponding zone number and sensor name can be displayed via SMS.

7. Non-volatile chip, information stored automatically when off power.
8. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.

9. Built-in Li-Ion backup battery, available in ACDC. System self-check, alert of low backup battery power.
10. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call.
11. One-key arm function. Learning sensors to alarm host, very easy operation.

12. Supports CID uploading to CMS(Center monitoring Station) , can user our GSM CID connector to have this function.
13.More functions can be realized with more optional accessories(Note: consultation in advance is necessary)

Specifications/Technical Parameters:

1. Power supply: AC=110~240V, DC=12V 1A

2. Static current: ≤50mA
3. Alarm current: ≤500mA
4. Working condition: Temperature: -10ºC ~ 50ºC Humidity: <80%
5. Wireless frequency: 315Mhz/433Mhz
6. Product dimension (Host): 150*107*26(mm)

7. Supports wireless sensors maximum at 60 purchase

8. Supports Remote maximum at 10 purchase

9. Back-up battery: Li-ion battery, 3.7V/1200MA

10. Standby: around 24 hours

11. Full charging time: 12 hours

12.GSM Frequency: Dual-Band(900/1800MHZ),Quad-Band(850/900/1800/1900HZ)

13.GSM emitting power:2W

14.Display: LED

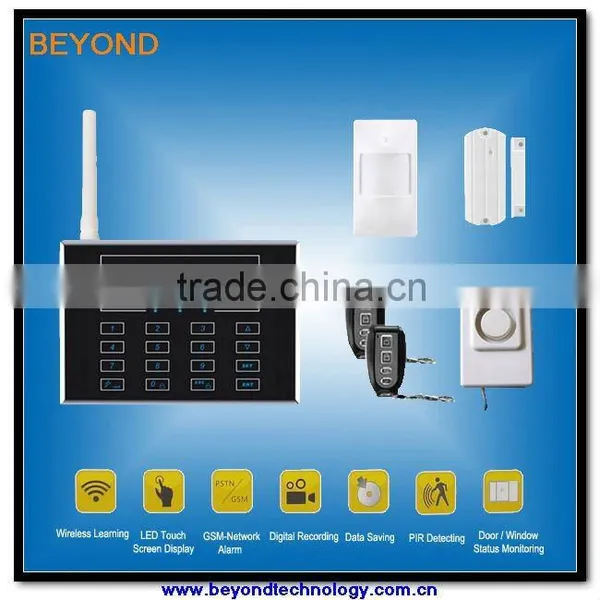

Accessories in standard package:

1. alarm host *1pc

2. wireless wide-range PIR detector *1pc

3. wireless door magnet *1pc

4. wired indoor siren *1pc

5. remote control/key chain * 2pcs

6. power adaptor *1pc



Optional Accessories:

1.Gas alarm

2.Smoke alarm

3.Out door siren with sound and light

4.indoor siren with sound and light

5.Wireless LCD/LED keypad

6.Wireless curtain PIR sensor

7.Wireless intelligent door sensor

8.Wireless doorbell



Packing Figure:
