Specifications
LCD gsm intelligent wireless alarm system1.5 ways of arm/disarm
2.8 wired optional
3.GSM network
4.One key arm function
LCD gsm intelligent wireless alarm system
Model:CX-GSM2
Brief Description:
1.LCD displays, Rubber keypad buttons ,Upgrade design
2.5-ways of arm/disarm
3.Compatible with GSM network
4.29 wireless zones, 2 dedicated zones ,8 wired zones optional
5. “Black Box” date record function
6.One-key arm function, easy operation
7.Upto 5 groups of telephone numbers
8.Supports CID uploading to CMS
9.Low voltage indicators
10.Supports multiple languages
11.Intelligent logic analysis technology
Basic Functions:
1.Blue or Green LCD looks nice and upgraded .More comfortable operation with soft rubber buttons. Concisely displays Date, Day of the week, Time, and current Armed Status
2. The screen can show the language: English, Chinese, German, Russian, French, Japanese... Trad-Chinese and more to meet different market needs.
3. Compatible with GSM network, reports alarm events by calling and SMS.
4. 29 wireless zones(Each zone supports up to 4 sensors) + 2 dedicated zones for remote (Each zone supports up to 4 remotes or wireless keypad). 8 wired zones can be extended.
5. Upto 5 groups of telephone numbers can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.
6.Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.
7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed via SMS.
8. Non-volatile chip, information stored automatically when off power.
9. Prior alarming , automatic information preservation on a sudden power cut , AC/DC power available
10. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
11.Built-in Li-Ion backup batter, available in ACDC. System self-check, alert of phone line disconnection, low backup battery power and no external power.
12. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call.
13. One-key arm function. Learning sensors to alarm host, very easy operation.
14. Supports CID uploading to CMS(Center monitoring Station),can user our GSM CID connector to have this function.
15. “Black Box” date record function. Can store up to 100 alarm event information and 100 arm/disarm history.
16.Wireless or wired siren are optional for louder alarming sound.
17.More functions can be realized with more optional accessories(Note: consultation in advance is necessary).
Extended Functions:
8 wired zone
Specifications/Technical Parameters:
1. Power supply: AC=110~240V, DC=9~15V 1A
2. Static current: ≤80mA
3. Alarm current: ≤500mA
4. Working condition: Temperature: -10ºC ~ 50ºC Humidity: <80%
5. Wireless frequency: 315Mhz/433Mhz
6. Product dimension (Host): 180*120*38 (mm)
7. Supports wireless sensors maximum at 116 purchase
8. Supports Remote maximum at 4 purchase
9. Back-up battery: Li-ion battery, 4.8V/600MA
10.GSM Frequency: Dual-Band(900/1800MHZ),Quad-Band(850/900/1800/1900HZ)
11.GSM emitting power:2W

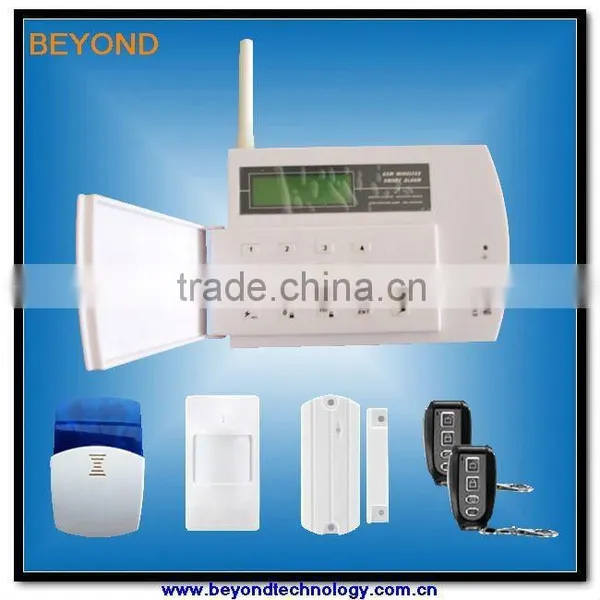

Accessories in standard package:
1. alarm host *1pc
2. wireless wide-range PIR detector *1pc
3. wireless door magnet *1pc
4. wireless indoor siren *1pc
5. remote control/key chain * 2pcs
6. power adaptor *1pc
Optional Accessories:
1.Gas alarm
2.Smoke alarm
3.Wireless out door siren
4.Wireless keypad
5.Wireless curtain PIR sensor
Packing Figure:
