868mhz PSTN GSM integrated alarm system with wireless doorbell

Specifications

868mhz PSTN GSM integrated alarm system with wireless doorbell

Model:CX-GSM4-868

Outstanding Feature:

 1.With Touch Keypad
2.Door Chime function:Check doorwindow status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast "bi bi bi").
3.READY TO ARM. Suppose you arm the system with a door/window open.No sense of protection.If a door or window was left open and user try to arm the system,system will sound a long beep(1 second) and display “SYSTEM NOT READY” for 3 seconds, Then the next screen will show: ARM ANYWAY?

Brief Description:

1.LCD displays, Touch keypad ,Upgrade design
2.5-ways of arm/disarm
3. GSM/PSTN dual net-work
4.29 wireless zones, 2 dedicated zones ,8 wired zones optional

5. “Black Box” date record function

6.One-key arm function, easy operation

7.Upto 5 groups of telephone numbers

8.Supports CID uploading to CMS

9.Low voltage indicators

10.Supports multiple languages

11.Intelligent logic analysis technology

12. Wireless “Ding dong” doorbell.

13. Check doorwindow status automatically

14. Built-in Li-Ion backup battery

Extended Functions:

1.Open and closed status(of door and window) mornitoring and alert.

2.Wireless “Ding dong” doorbell.

3. Check doorwindow status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast “bi bi bi”)

4.8 wired zones

Basic Functions:

1.Blue or Green LCD looks nice and upgraded .More comfortable operation with touch keypad. Concisely displays Date, Day of the week, Time, and current Armed Status.
2. The screen can show the language: English, Chinese, German, Russian, French, Japanese... Trad-Chinese and more to meet different market needs.

3. 2 /4 Band GSM/PSTN dual net-work. Support phone call alarm and SMS alarm, automatically switch to GSM dailing when telephone line is cut.
4. 29 wireless zones (Each zone supports up to 4 sensors) + 2 dedicated zones for remote (Each zone supports up to 4 remotes or wireless keypad). 8 wired zones (each zone can be separately programmed, armed and disarmed) can be extended.
5. Upto 5 groups of telephone numbers can be pre-stored and then dial in sequence when alarming, each number can be set as phone call alarm or SMS alarm according to actual needs.

6. Record up to a 10 second voice message in the host, then can be heard via phone when answering alarm call.

7. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed via SMS. It will automatically swift to GSM line if landline cut.
8. Non-volatile chip, information stored automatically when off power.

9. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.

10.Built-in Li-Ion backup batter, available in ACDC. System self-check, alert of phone line disconnection, low backup battery power and no external power.
11. 5-ways of arm/disarm: SMS, remote controller, built-in keypad, wireless keypad (optional device), phone call(PSTN alarm don’t support SMS).
12. One-key arm function. Learning sensors to alarm host, very easy operation.

13. Supports CID uploading to CMS(Center monitoring Station),can user our GSM CID connector to have this function.
14. “Black Box” date record function. Can store up to 100 alarm event information and 100 arm/disarm history.

15.More functions can be realized with more optional accessories(Note: consultation in advance is necessary).

Specifications/Technical Parameters:

1. Power supply: AC=110~240V, DC=9~15V 1A

2. Static current: ≤50mA
3. Alarm current: ≤500mA
4. Working condition: Temperature: -10ºC ~ 50ºC Humidity: <80%
5. Wireless frequency:868Mhz
6. Product dimension (Host): 150*107*26(mm)

7. Supports wireless sensors maximum at 116 purchase

8. Supports Remote maximum at 8 purchase

9. Back-up battery: Li-ion battery, 3.7V/1200MA

10. Standby: around 16 hours

11. Full charging time: 12 hours

12.GSM Frequency: Dual-Band(900/1800MHZ),Quad-Band(850/900/1800/1900HZ)

13.GSM emitting power:2W

14.Display:LCD

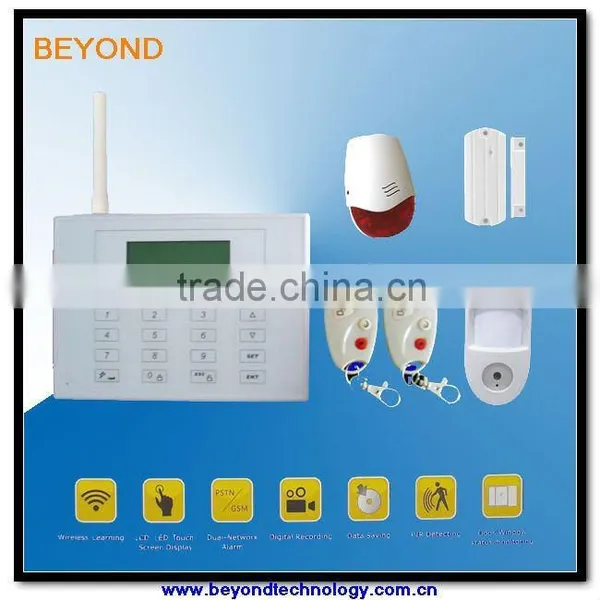

Accessories in standard package:

1. alarm host *1pc

2. wireless wide-range PIR detector *1pc

3. wireless door magnet *1pc

4. wireless indoor siren *1pc

5. remote control/key chain * 2pcs

6. power adaptor *1pc

Optional Accessories:

1.Gas alarm

2.Smoke alarm

3.Wireless out door siren

4.Wireless keypad

5.Wireless curtain PIR sensor

6.Wireless intelligent door sensor

7.Wireless doorbell

Packing Figure:
