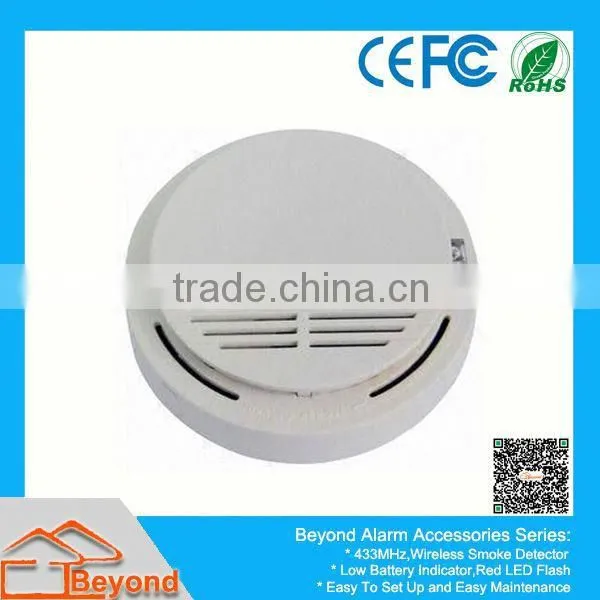

Wireless Smoke Detector Camera

Specifications

Wireless Smoke Detector Camera

Model:CX-83W

Features

• Adopting unique optical sensing chamber, the smoke detector alarm can precisely detect the smoke density and announces the fire warning
• It can be used independently or can be used with the home smoke detector
• Self-alarm when the smoke density exceed the standard density
• Test button for easy recommended monthly testing
• Photoelectric chamber for early detection from all directions
• High sensitive chips inside and strong anti-interfere
• Surveillance status led every forty seconds flash once, alarm status led every 1 SEC flash again
• The detector is suitable for detect the smoke in house, shop, hotel, restaurant, office building, school, bank, library, computer house and storehouse etc
• Featured Wireless Smoke Detector Camera Provider: Beyond Technology Industrial Ltd

Tech Specifications

Instructions

• Walk through your home and locate the areas where you want to mount smoke detectors. Detectors should be mounted only inside bedrooms, outside of bedrooms and in hallways leading to bedrooms.
• Grab your ladder and mount smoke detectors high - on a wall or on the ceiling - though the ceiling mount is preferable, as they will go off sooner.
• Be sure when attaching to the wall, place it 4-12 inches from the ceiling and in turn, mount ceiling detectors 4 inches from the wall. Smoke rises, so if you have a odd-shaped ceiling, opt for the highest point on the ceiling to place the detector.
• Avoid mounting smoke detectors near windows or doors, where smoke can escape before reaching the detector.
• Avoid mounting smoke detectors in kitchens, dining rooms or living rooms. Smoke and steam from cooking, fireplaces, and candles and so on can cause false alarms. Basements and garages should be avoided also. Water heaters, fumes from solvents, paint or gasoline, and dust from forced air heaters can set off alarms.
• Follow the directions on the package for mounting the smoke detector once you've chosen the area for the device. You'll most likely need a drill and a screwdriver.
• Make sure a qualified electrician mounts the device if you choose to go with a detector that will be hardwired to your home's electrical system.

Package

• 1 x Smoke Detector Alarm

Installation and test

• Independence or wireless type, talking the battery into battery box before installation
• Network type, connect DC 12V power red wire for anode black for cathode, white for COM orange for NO, yellow for NC
• Connect the power, the detector comes into operating state, indicating LED flashes once per 40 seconds, once per 1 second at alarm state
• Select proper place (normally mounted on the center of the ceiling), fix the mounting base, then the detector into the base and turn it
• After installation, press the test button to test the output of the detector
• LED should flash once, detector should give out (independence type)/send out RF signal (wireless type), driver relay (network type)
• You can press the test button to test the detector
