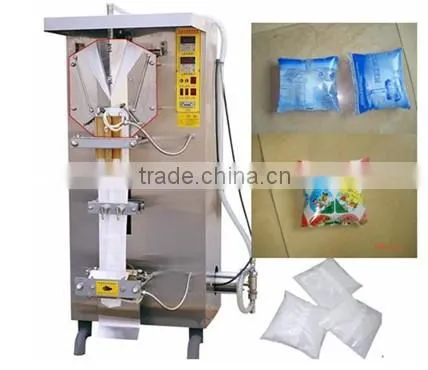

sachet plastic bag water packaging machine Liquid packing equipment
The equipment is widely used in variou kinds of liquid packing. It adopts stainless steel structure, fit the international health standard. Easy to operate and have a good quality.
Model: KN-ZF-1000
Production capacity: 1500-2200BAG/H
Filling range: 100-500ml(1000ml can be custom-made)
Voltage: AC220V/50HZ AC380V
Paper-offering motor: 250W/220V
Overall Dimension: 1000*800*2000MM
Total weight: 400KG
Automatic Liquid Packing Machine(PE film packing)
If customers want to put any company logo, pictures and text on the packing film, and hope to make every sachet water with the same logo, picture and text, so have to buy this packing machine with the photoelectrical positioning device. If don’t have this requirement, you can buy the no.1 model, such as transparent PE film or single color PE film, all in all , if you don’t like to make each sachet water with the same content(logo, picture, text etc.), so you can buy the No.1 model, this machine isn’t equipped with photoelectrical positioning device, but No.2 model is equipped with this device.
Applicable PE film in roll
Main functions
The machine can automatically complete bag-making,filling,sealing ,printing ,cutting controlled by microprocessor and automatic photocell. It can pack kinds of non-carbon liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the cold beverage makes ice bag), soy milk, mineral water, greese bean curd and liquid sack.
C, Technique parameters
3.1. production capacity:1500~2200B/H
3.2. Packing volume:100~500ml/B
3.3. Filling precision:±1%
3.4. Film width:240mm or 320mm(optional or choose others)
Power:Moter:singel phrase,three phrases 1.1KW
Vertical hot seal: 0.3KW;Horizonal hot seal: 0.5KW
UV sterilizer lamp15KW
3.5. Power supply:AC220V/Hz or AC380V(three phrases)
3.6. The weight of the machine:360kg
3.7. Dimension(L×W×H):750*700*1700mm
D,Function
1,sack molding 2,UV sterilizer 3,Vertical cutting hot seal
4,Date composed 5,beeline tows sack 6,ration filling
7,Horizonal cutting hot seal 8,Cutting sack 9,count automatically
Main Technological Data | ||
Model |
YF-1000 |
|
Production Capacity |
1500-2200BAGS/H |
|
Filing Range |
100-500ML(1000MLcan be customized) |
|
Voltage |
AC220V-380V/50-60HZ 1.8KW |
|
Paper-offering Motor |
250W/220V |
|
Power of Hot Sealing |
vertical sealing |
300W 500W |
horizontal sealing | ||
Main Motor Power |
370W/380V/220V |
|
Overall Dimension |
1000×800×2000MM |
|
Weight |
450KG |
|
Main configuration:
Num. |
Sign |
Qty. |
Item |
Spec. and model |
Memo |
1 |
FD |
2 |
screw fuse |
RFI-10A |
|
2 |
XWK |
2 |
Process switch |
JFXK1-441 |
|
3 |
K |
4 |
switch |
MK211B/n81 |
|
4 |
ZZ |
1 |
UV lamp tube |
ZWS series 15W/220V |
|
5 |
JC |
1 |
AC Contactor |
CJ46-9 |
10A/220V |
6 |
JJ |
1 |
electromagnetic counter |
LFC-5 |
AC220V |
7 |
TE |
2 |
temperature controller |
TE-2601 |
|
8 |
RE |
2 |
thermocouple |
E,EA2 |
(a set) |
9 |
SRM3 |
1 |
Tubiform Electro-heating element |
Φ20 stainless stell shell |
300W(vertical seal) |
10 |
SRM5 |
1 |
Tubiform Electro-heating element |
Φ20 stainless steel shell |
500W (horizontal seal) |
11 |
D |
|
motor |
0.37KW/1.1KW |
|
12 |
Q |
1 |
Electricity-leakage protector |
DZL18-20 |
|
Certificate
Packaging & Shipping
The products are packed with standard export wooden case as below, and it is suitable for long distance sea and land transportation.
