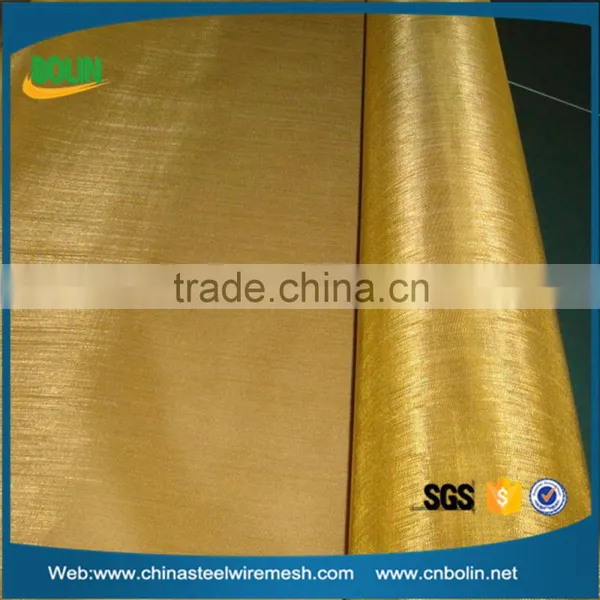

Alibaba china high quality brass wire mesh copper wire mesh fabric
1.
| material |
brass wire--purity--Cu: 65% , Zn:35% red copper wire--purity--Cu:99.8% |
| wire diameter | 0.05mm-1.80mm |
| weaving type | plain weave,twill weave,dutch weave,etc. |
| mesh counts | 1-250 Mesh |
| technique | woven wire mesh |
| mesh rolls size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| surface | smooth |
| hole shape | square |
| feature | electromagnetic shielding,good conductivity,non-magnetic |
| sample | free and avaliable |
2.Specification
| Mesh/Inch | Wire Diameter(mm) |
Aperture(mm) | Open Area % |
| 4 | 1.2 | 5.15 | 65.8 |
| 5 | 1.0 | 4.08 | 64.5 |
| 6 | 0.71 | 3.52 | 69.2 |
| 8 | 0.5 | 2.67 | 70.7 |
| 10 | 0.5 | 2.04 | 64.5 |
12 |
0.45 | 1.66 | 61.5 |
| 14 | 0.4 | 1.41 | 60.4 |
| 16 | 0.3 |
1.28 | 65.0 |
| 18 | 0.25 | 1.16 | 67.6 |
| 20 | 0.25 | 1.02 | 64.5 |
| 30 | 0.21 | 0.64 | 57.1 |
| 40 | 0.19 | 0.45 | 50.2 |
| 50 | 0.15 | 0.36 | 50.1 |
| 100 | 0.10 | 0.154 | 37.0 |
| 110 | 0.09 | 0.141 | 37.2 |
| 120 | 0.09 | 0.122 | 33.2 |
| 130 | 0.07 | 0.125 | 41.0 |
| 180 | 0.053 | 0.088 | 41.6 |
| 200 | 0.05 | 0.077 | 36.7 |
| (width of roll):0.60m-2.9m | |||
3. Weave type
Plain weave
Each wire alternates—first going under one wire,then going over the next wire.Plain weave is the most common weaving style.
Twill weave
Each wire goes over and under two wires in succession.Twill weave is often used when wire diameters are too large to allow a plain weave.

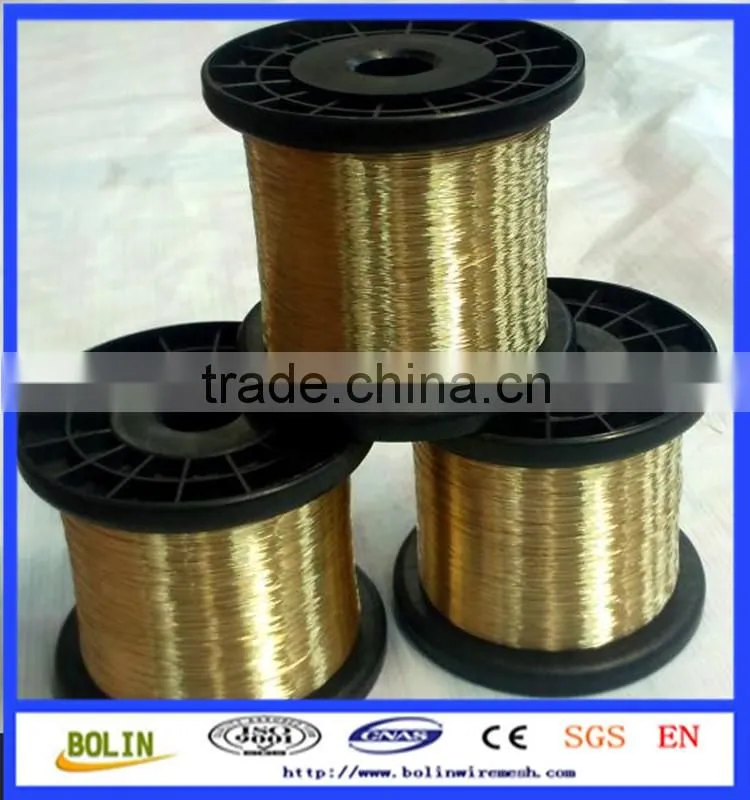

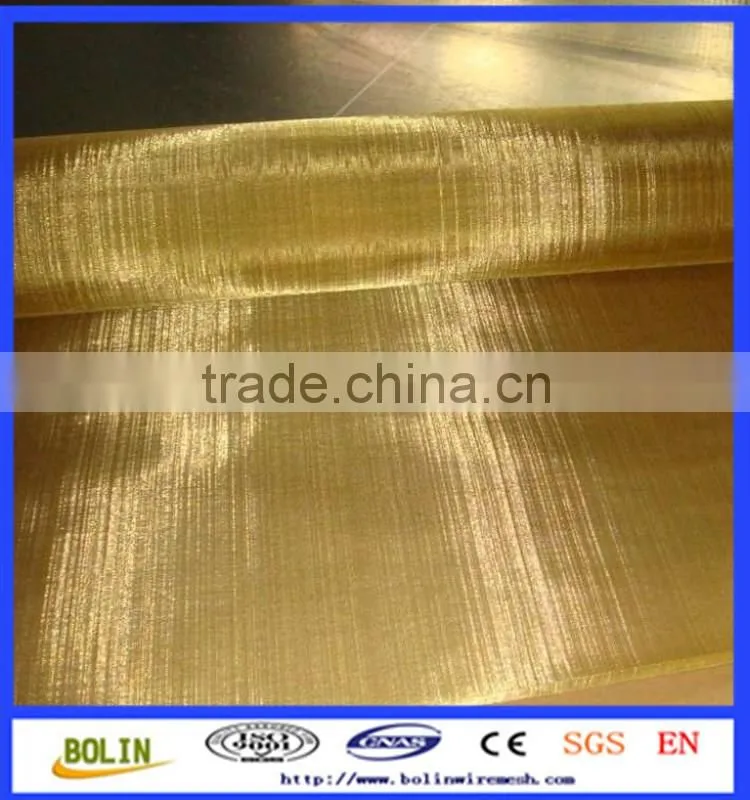

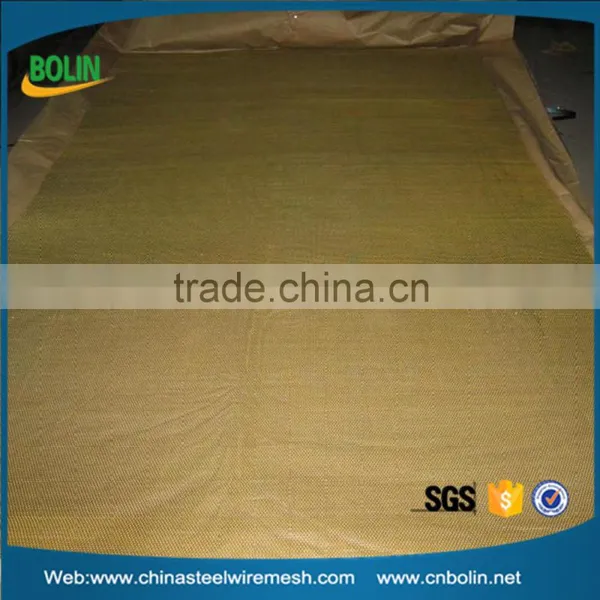

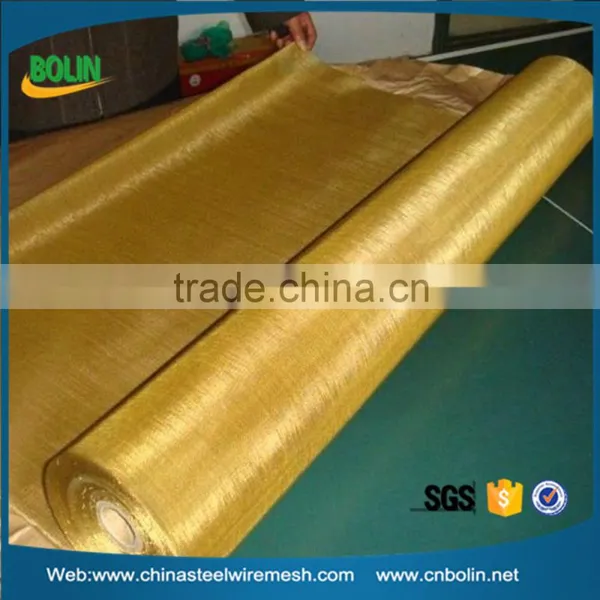

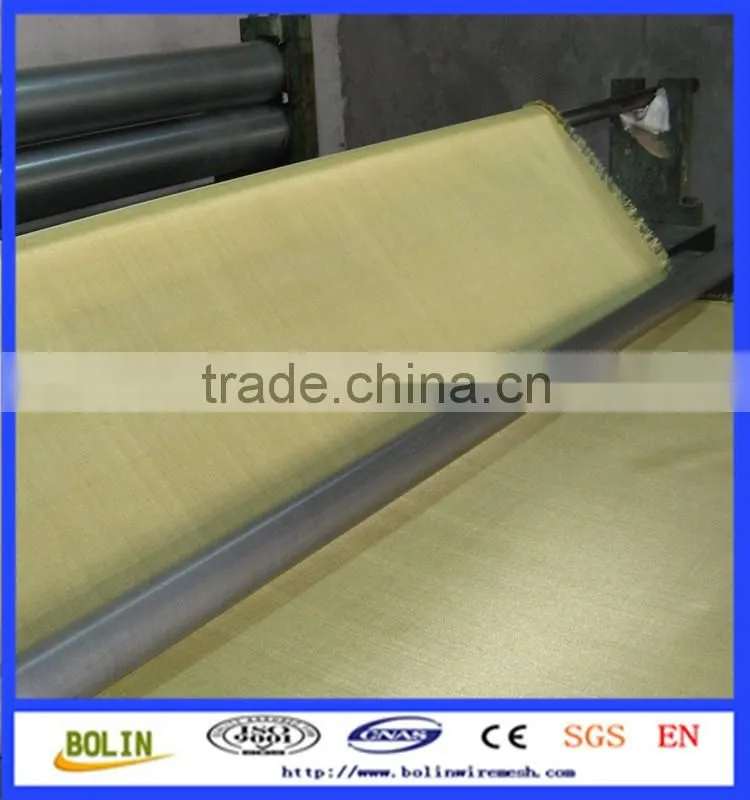

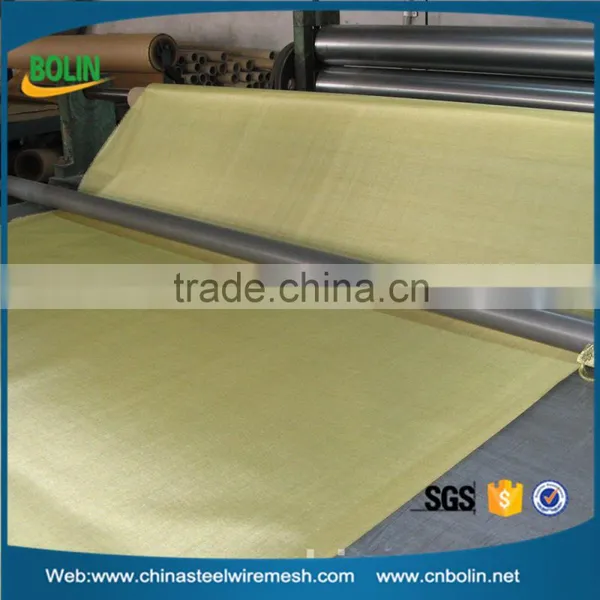

1. brass wire and brass wire mesh

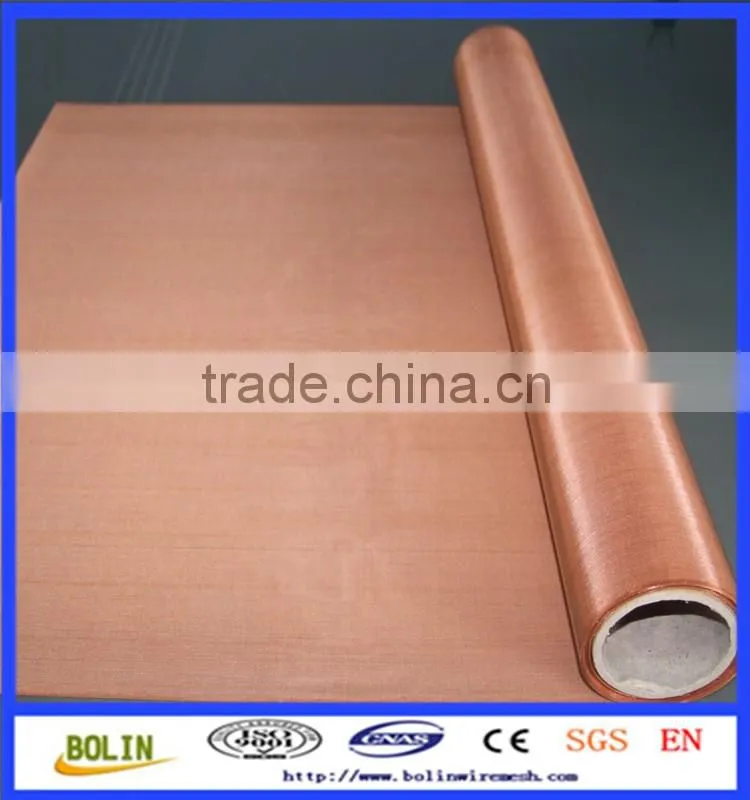

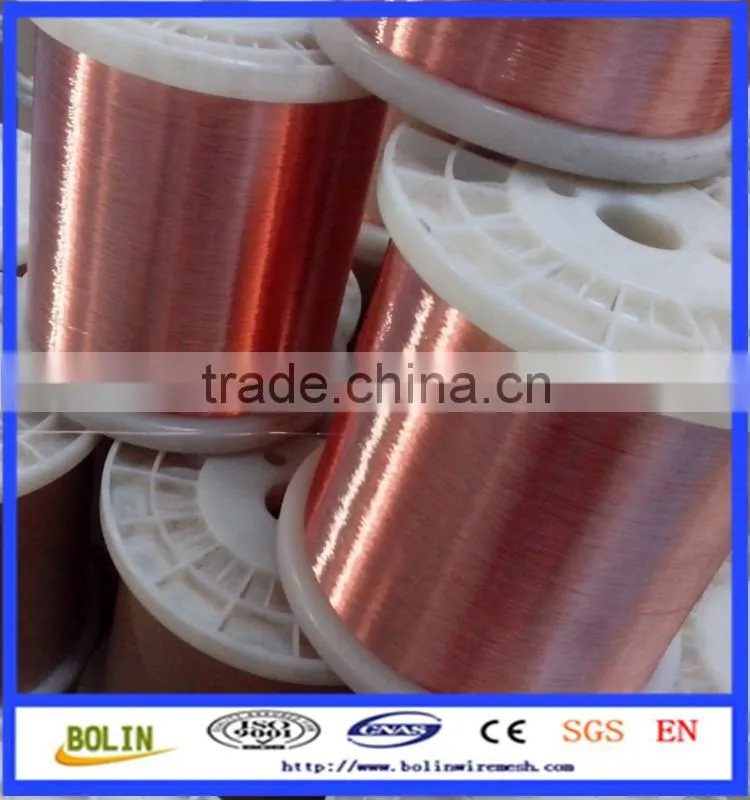

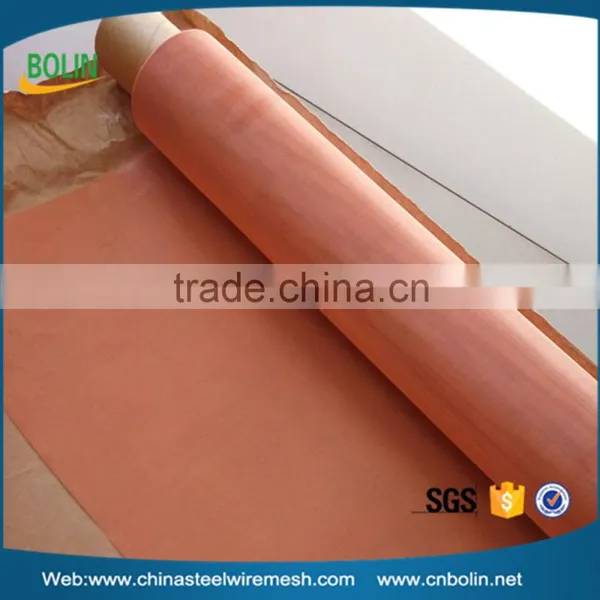

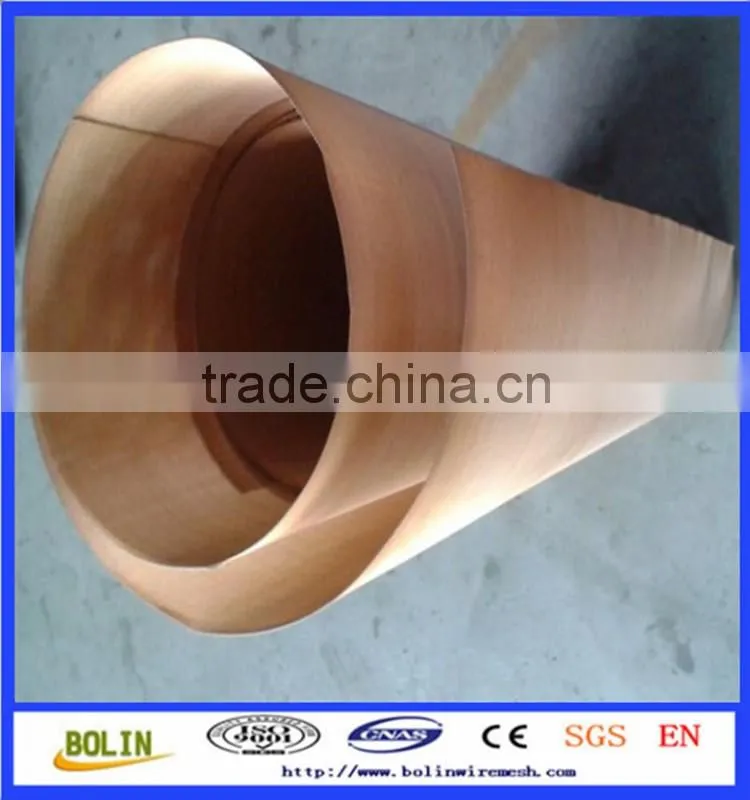

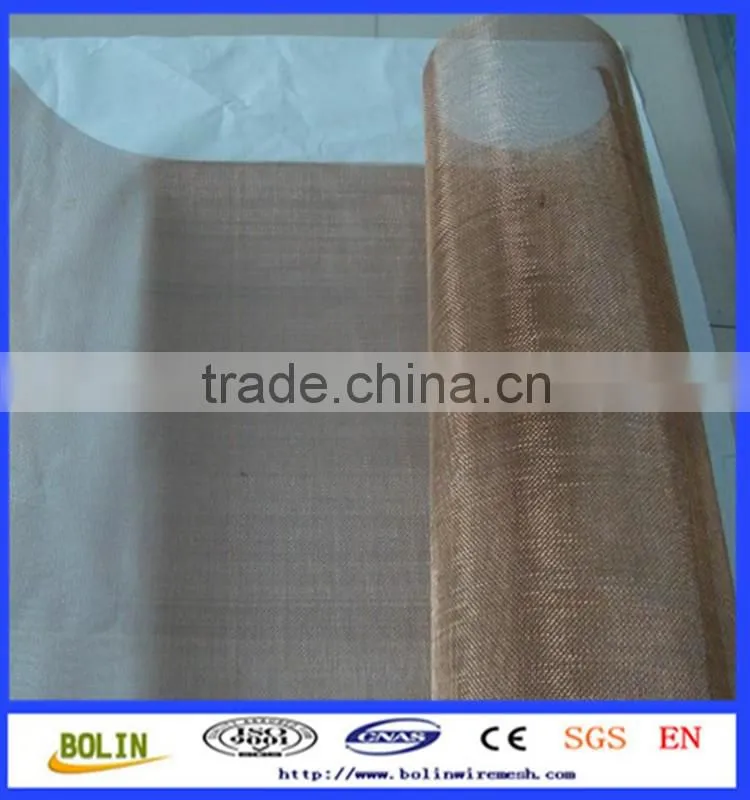

2. red copper wire and red copper wire mesh

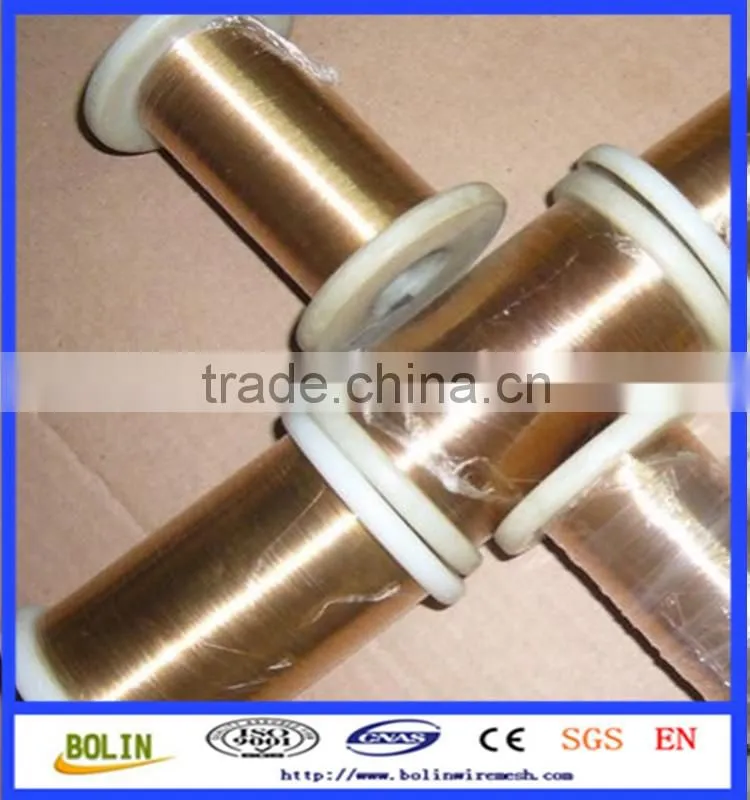

3. phoshpor bronze wire and phoshpor bronze wire mesh
OEM |
Yes |
Special Sizes or Shape |
Yes |
Customized packing |
Yes |
Sample |
Can be offered or Made |
Delivery time |
7-20 days after received the advance payment |
Payment terms |
T/T, Western Union, PayPal, Escrow, L/C,etc |
Optional Way of Transportation |
Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS |
If you are interested in our products, please feel free to contact with us!Thank you!
