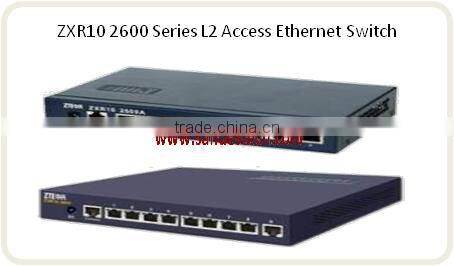

ZTE Switch ZXR10 2600 Series L2 Access Ethernet Switch RS-2600
Overview
ZTE ZXR10 2600 series L2 Access Ethernet Switches are access switches with good performance and diversified functions. A rich set of utility functions are available on ZXR10 2600 for telecom operators to provide broadband IP access services.
ZXR10 2600 adopts chipsets with leading ASIC design; the traffic forwarding is performed by hardware, ensuring wire-speed forwarding capability of the interfaces.
Advanced Features
Cost-effective and compact structure
With a 0.8U height and a compact structure, the ZXR10 2600 can be placed on desktop near the client. It supports external AC power supply, which consumes less energy and occupies less space.
Powerful security performance
ZXR10 2600 supports the restriction of broadcast storm, 802.1x authentication, port isolation, IEEE 802.1Q, VLAN based on port, hierarchical user management and password protection, etc.
QoS features
ZXR10 2600 provides 4 hardware queues to every port. This feature enables the independent assignments of priorities to different traffics. Users can assign high priority to important services to guarantee the transmission quality.
ZXR10 2600 also supports scheduling, reshaping, flow control, speed restriction, enabling user to implement more refined control to different traffics.
Port mirroring and dynamic MAC binding
Port mirroring can be used to monitor given interfaces. ZXR10 2600 can mirror the ingress and egress traffic to another port. It can do the monitoring by matching specific MAC address.
ZXR10 2600 supports the binding of MAC and PORT; the binding can be implemented automatically and immediately after the IEEE802.1X authentication, easing operation burden.
VCT (Virtual cable Test) and Loopback Test
ZXR10 2600 supports VCT, which can be used to diagnose open circuit, short circuit, mismatching of cable impedance, damaged connector, mismatching of terminator, and poor electromagnetic performance. And the port loopback test is a simple and effective way to diagnose whether the data transmission on an Ethernet port is normal or not.
About the distribution:
As a golden distributor of ZTE, all of ZTE prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The ZTE products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.
Photos:
