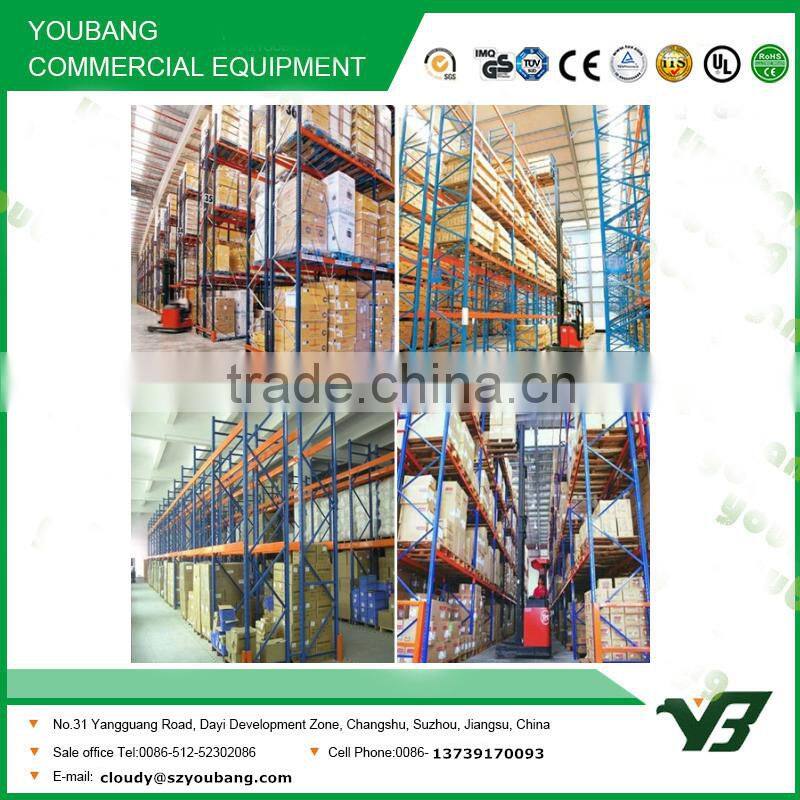

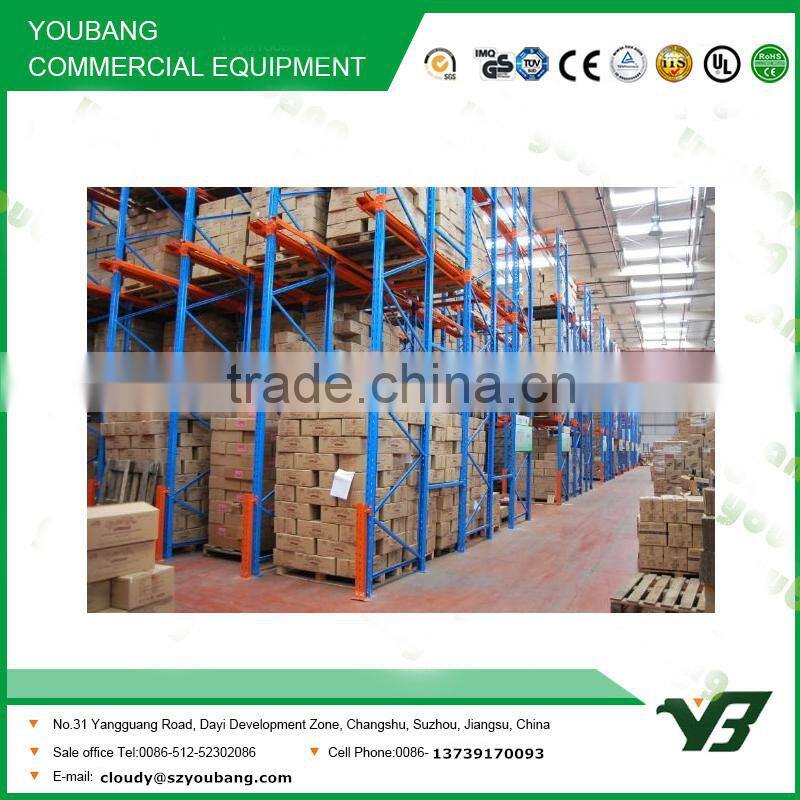

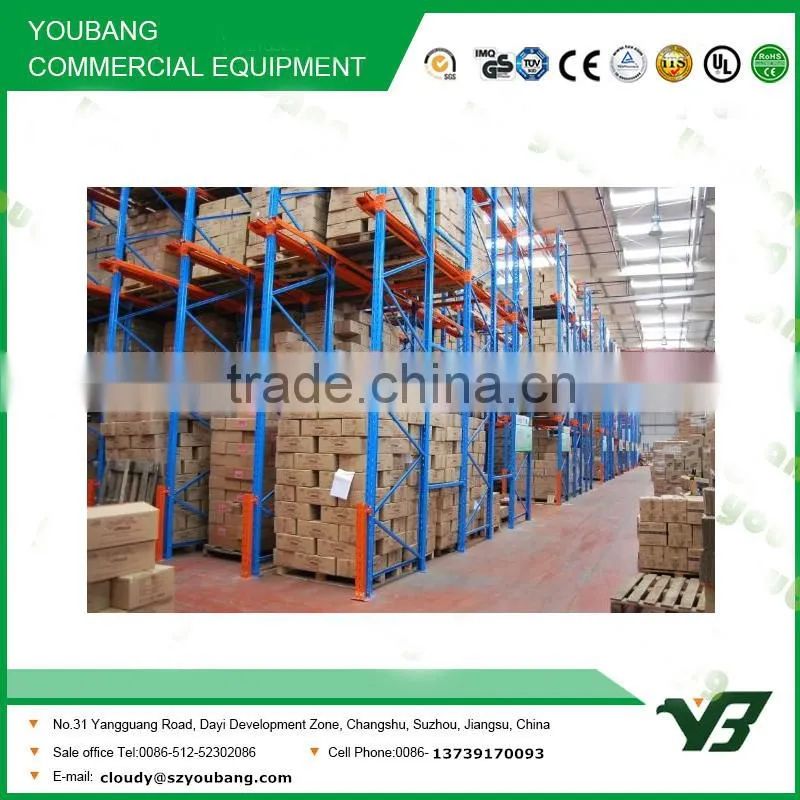

Help CenterHot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Drive Through Pallet Rack, Storage Rack (YB-WR-C33)
Related Products
-
Hot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Drive in Storage Rack, Storage Rack (YB-WR-C34)US$ 0.9 - 1.9MOQ: 20 Pieces -
Hot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Drive in Pallet Racking, Storage Rack (YB-WR-C35)US$ 0.9 - 1.9MOQ: 20 Pieces
-
Hot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Drive in Warehouse Rack, Storage Rack (YB-WR-C36)US$ 0.9 - 1.9MOQ: 20 Pieces
-
Hot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Double Side Cantilever Rack, Storage Rack (YB-WR-C37)US$ 0.9 - 1.9MOQ: 20 Pieces
-
Hot Sell Best Price Multi Level Long Span Heavy Duty Warehouse Double Side Cantilever Rack, Storage Rack (YB-WR-C38)US$ 0.9 - 1.9MOQ: 20 Pieces
Hot sell high quality best price 3 layers long span heavy duty warehouse drive through pallet rack, storage rack
(Pallet Rack, Warehouse pallet rack, Storage pallet Rack, selective storage rack, heavy duty powder rack, multi-level pallet rack, 2015 popular sell rack, 4 layer warehouae pallet rack, 2 bay long span warehouse storage rack, drive in rack , multi tier warehouse racking, rack system):
Specification of warehouse storage rack:
1. Material:High quality carton steel.
2. Length: 1.5-3.3m, Width: 0.5-1.5m, Height: 2-12m;
3. Loading capacity: 500kg-4000KG/layer of our warehouse rack;
4. ISO&BV; Resonable price, high quality & service;
5. High space storage rate;
6. Standard finishing is epoxy powder coated.
7. Layer: 2-10 layer/tier per set, layer height can adjust by hole of post of warehouse vertical racking systems.
Dimensions Unit: mm
| Drive In Rack | |
| 1. Features | 1) Beam levers are adjustable in 75mm pitch interval. |
| 2) Different sizes, various specifications and colors are available according to your different needs. | |
| 3) Maximizes space utility ratio while retaining optimum product accessibility. | |
| 4) Strength and rigidity prevents compression damage to goods. | |
| 5) Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| 2. Material: | High grade Q235B Cold Rolled Steel |
| 3. Surface Treatment: | High-quality Powder Coating Finishing. |
| 4. Load Capacity & Dimension: | 1) Loading capacity: 500-4000 kgs/pair beam. |
| 2) Height: 1500-10000mm | |
| 3) Depth: single row 800-1200mm ( decided by pallet size) | |
| 4) Length: 1500/2000/2500/2800/3000/3300/3500/3600 (1, 2 or 3 pallets per level, according to pallet size) | |
| Special sizes also available to specific storage needs. | |
| 5. Main Parts Specs(mm): | 1) Upright: 90*70*2.0 |
| 2) Beams: 100*50*1.5/120*50*1.5/140*50*1.5/160*50*1.5/140*50*2.0/160*50*2.0 | |
| 3) Horizontal & diagonal bracings: 40*24*1.5 | |
| 4) Upright Footplates: 120*120*3.0 | |
| 5) Safety locking pins, bolts, nuts, anchors etc | |
| 6. Certificates. | ISO9001, BV |
| 7. Quick Delivery. | 10-30 days |
Board in carton, upright and beam bubble foam
Please inform us the listed information in your inquiry of warehouse drive through pallet rack storage system, so we can better quote to you :
1) AUTOCAD drawings of your warehouse (If have rack position in drawing it is better). We can design your racking system position for free according to your requirements.
2) Size of your warehouse?
3) Width, depth of shelving?
4) Height of warehouse rack system?
5) How many bays you want?
6) How many layers of each set / bay?
7) Loading capacity of each layer?
8) RAL color you want.
We also can provide rack like wire rack, plate rack, pallet rack , slective pallet rack, drive in pallet rack, multi-level rack, attic shelves, steel platform shelf, mezzanine rack, cantilevel rack, light duty rack, heavy duty rack, medium duty rack etc.

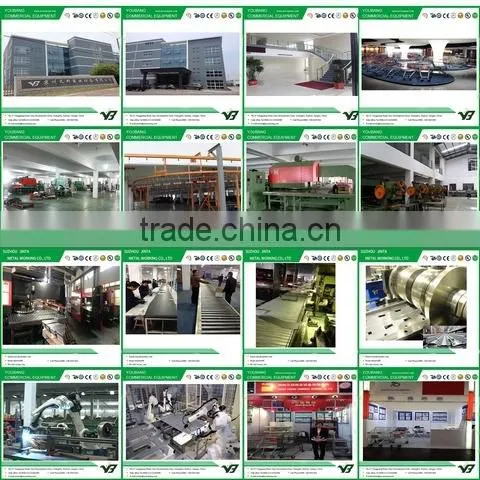

Introduction of our factory : Suzhou Youbang Commercial Equipment Co.,Ltd is build from 1999, which is one of the biggest leading professional manufacturer of supermarket equipments , storage equipments and airport trolley. Such as the supermarket shopping trolley & supermarket shopping cart , wire shelving and rack, supermarket shelving, long span heavy duty warehouse rack & drive through pallet rack, aluminum alloy airport luggage trolley, roll container, wire cage, wire container etc.
We export goods to many area and country like USA, English, Germary, Australia, Middle east area, South Africa, South amercia area, Asian area etc. And as our business devolop so in 2007 we opened SUZHOU HUIDOU IMP&EXP. CO.,LTD to make our business to all over the world.
Our company was integrating development and production together ,employs more than 200 workers,Through the efforts of our entire staffs,we have become a strong supermarket and warehouse equipment manufacturer in china. On the side,ASHIYI people still have continuously tried to improve product quality, Introducing the advanced machine to make 100% sure quality. So far we have develop to be have 4 factories,Shopping carts factory, airport trolley factory, shelf factory,wire rack factory.
Our company regards " Reasonable prices with satisfying quality,efficient production time , good after-sales service"as our tenet. We hope to cooperate with more customer for mutual development and benefits.
We export warehouse vertical racking systems to many countries like USA, Australia, French, Middle east area, Africa countries, South Amercian countries etc.
Welcome potential buyers to contact us, sincerely hope to enter into long-terms and steady business relations with you!
FREQUNT QUESTION ANSWER ABOUT DRIVE IN PALLET RACK
1. What makes us different from others?
1) Our Excellent Service
For a quick, no hassle quote just send email to ours
We promise to reply with a price within 24 hours - sometimes even within one hour.
If you need an advice, just call our export office at 0086-0512-52302086, we will answer your questions immediately
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 25 days.
3)Our Safty Design
Our Storage System is manufactured in a world class facility, designed to produce equipment of the highest quality that will deliver superior "life-cycle" value at a competitive price. They are the more stringent and industry respected standards of Europe.
4)Our Special Export Design
We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film. You will find more details which show about our considerate.
5)Our Warranty
The High Standards in the Design and Manufacturing of its pallet rack systems enables us to support its products with a limited 2-Year Warranty, the Longest Manufacturer's Warranty. But the goods usually will use more than 10 years
2. What are our company delivery times?
This depends on the product. Typically standard products are delivered within 20 days.
The delivery time of the special products is according to the time of setting up of the tooling.
3.What are the payment term?
1) 30% T/T down payment and 70% T/T payment against receipt of the copy of B/L
2) Letter of credit payment can negotiate
4. May I know the status of my order?
Yes .We will send you information and photos at different production stage of your order. You will get the latest information.
5. What are the most popular size of your products
It depends... For different market, different sizes will be popular. If you tell us where you are, we will see and give you good advices according to your market.
6. Can you send us samples for our reference?
Yes, we can send a cut of samples for your reference by express.
The samples will include a cut of upright, a cut of beam, standard base plate, bolts and nuts, along with our catalogue and disc of production photos.
7. Are we distributor or a manufacturer?
We are professional manufacturer.
We Focus on the manufacture of facilities used in stores & supermarkets, logistics & warehousing, Our products mainly include warehouse rack, wire shelving, supermarket shelf, trolleys, checkout counter and other related storage equipment.
Cloudy Wang
Export vice manager
0086-13739170093
