dustproof lamp
tri-proof led tube linear light | |||||
Dimension (mm) | 600*60*65 | 1200*60*65 | 1500*60*65 | ||
Total power(W) | 20W | 30W | 40W | 50W | 60W |
Input voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
Operating frequency | 50~60 Hz | 50~60 Hz | 50~60 Hz | 50~60 Hz | 50~60 Hz |
Power factor(PF) | >0.90 | >0.90 | >0.90 | >0.90 | >0.90 |
Power efficiency | >87% | >89% | >89% | >89% | >89% |
Led type | SMD2835 | SMD2835 | SMD2835 | SMD2835 | SMD2835 |
Chip Brand | Epistar | Epistar | Epistar | Epistar | Epistar |
Luminous Fux(LM) | >2000 | >3000 | >4000 | >4800 | >5900 |
Beam Angle | 160° | 160° | 160° | 160° | 160° |
CRI(Ra) | >80 | >80 | >80 | >80 | >80 |
Color Temperature | Warm White:2700~3200K, Pure White:4000~4500K; Cool White:6000~6500K | ||||
IP Grade | IP65 | ||||
Working Temperature | -20°C~65°C | ||||
Material | PC integrated with cover+ Aluminum board | ||||
PC cover type | milky cover ,milky plaid cover ,transparent plaid cover ,transparent cover | ||||
Installation | Under Ceiling or Wall-mounted or Pendanted | ||||
lifespan | 50000H | ||||
Certificates | CE ROHS | ||||
Warranty | 3 YEARS | ||||

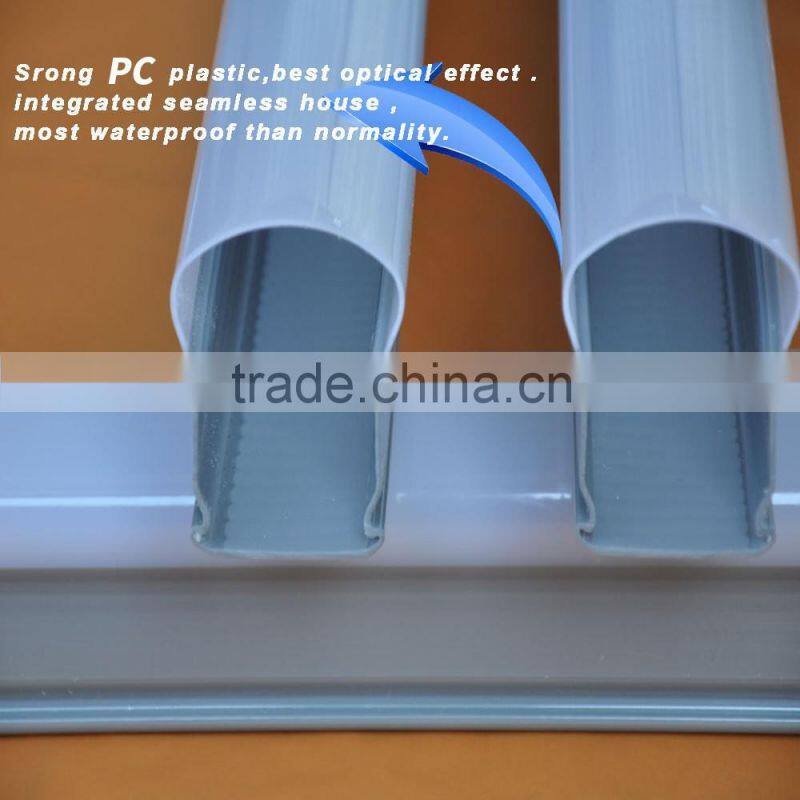

IP65 Waterproof,dust proof,corrosion proof,High intensity Integrated PC,perfect Waterproof system prevent the water,dust and other corrosive subject into lamp.

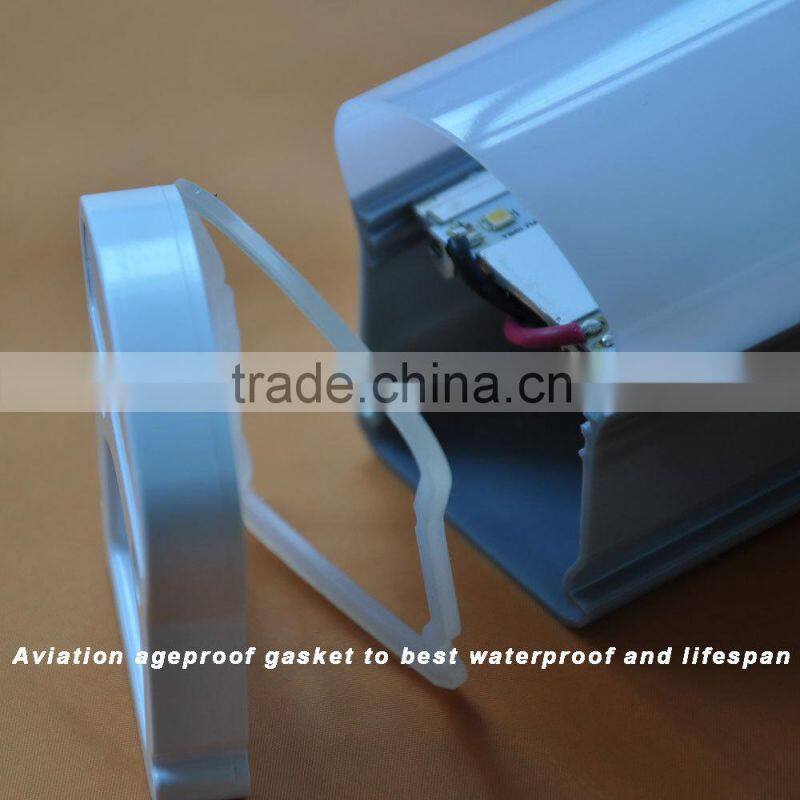

Aviation ageproof gasket to best waterproof and lifespan

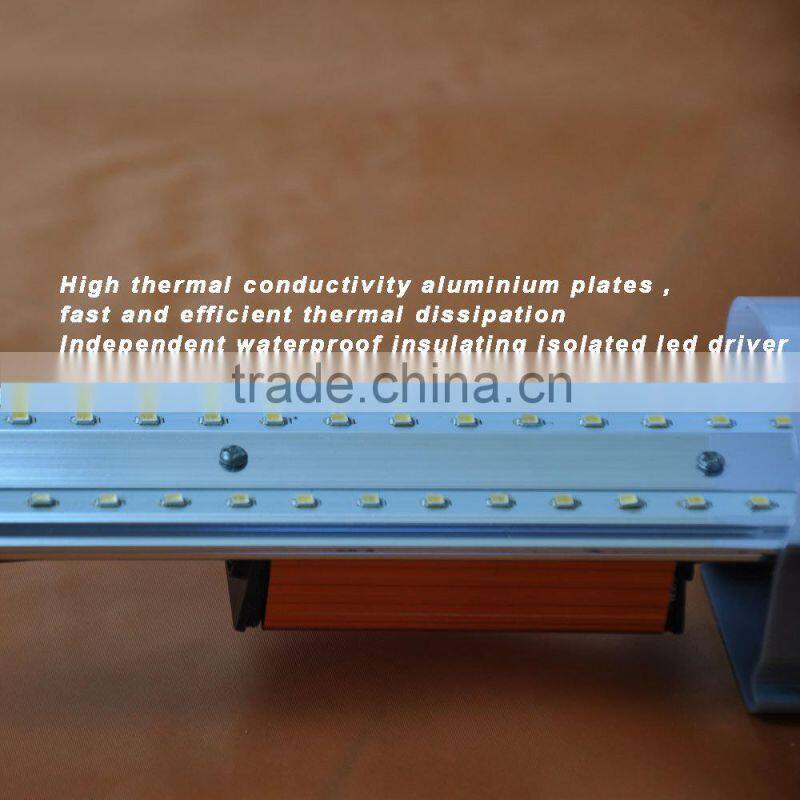

Strong and high quality isolated IC led driver to support led lifespan 50000hours,Wide operation voltage input AC 100-270v,High luminous efficiency 100 -115LM/W.Energy saving up to 80%. P.F. >0.95 .

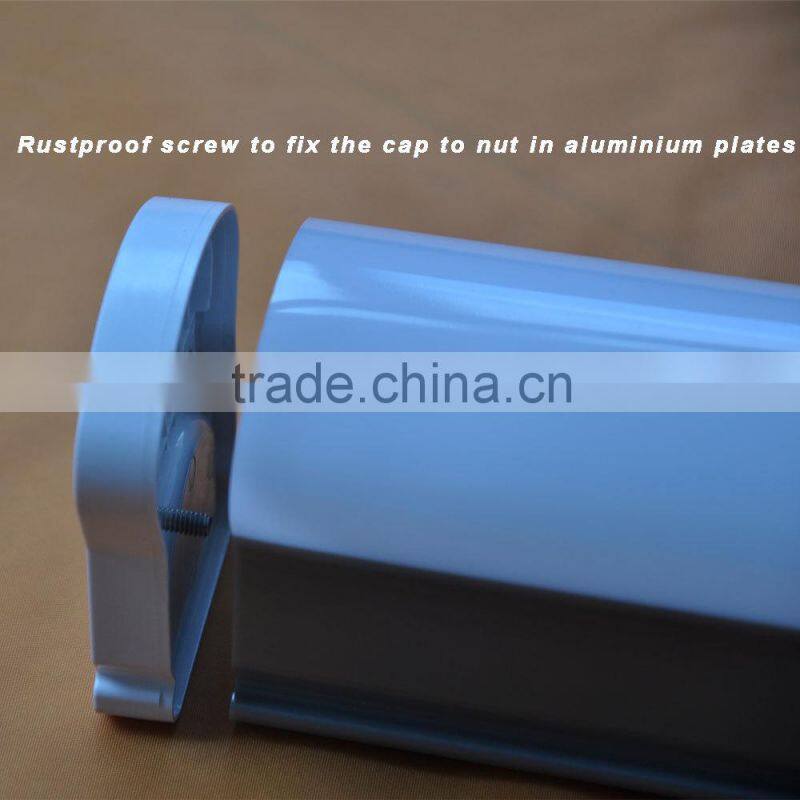

Rustproof screw to fix the cap to nut in aluminium plates

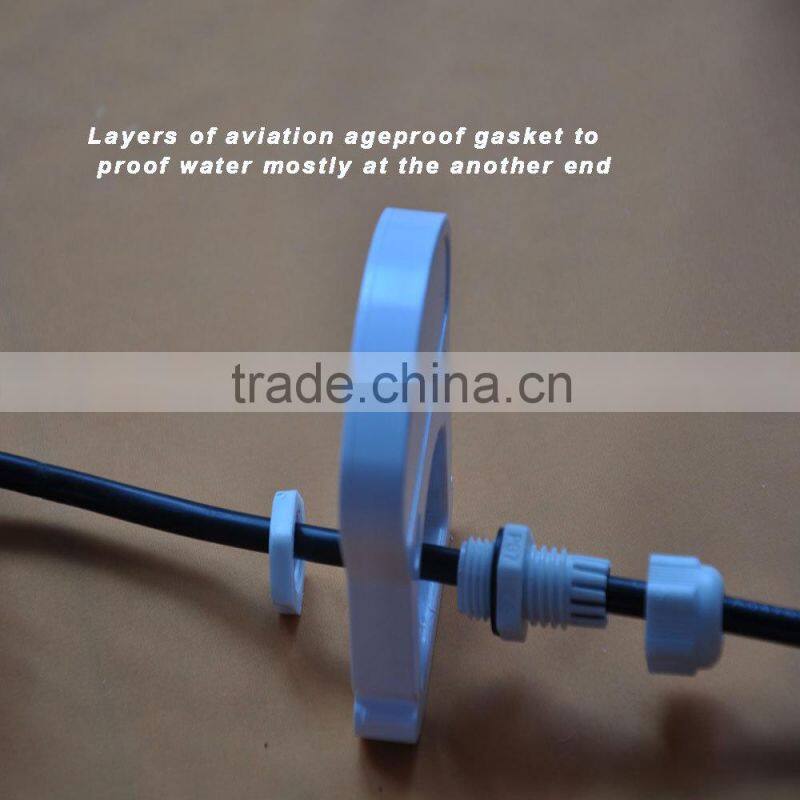

Layers of aviation ageproof gasket to proof water mostly at the another end .

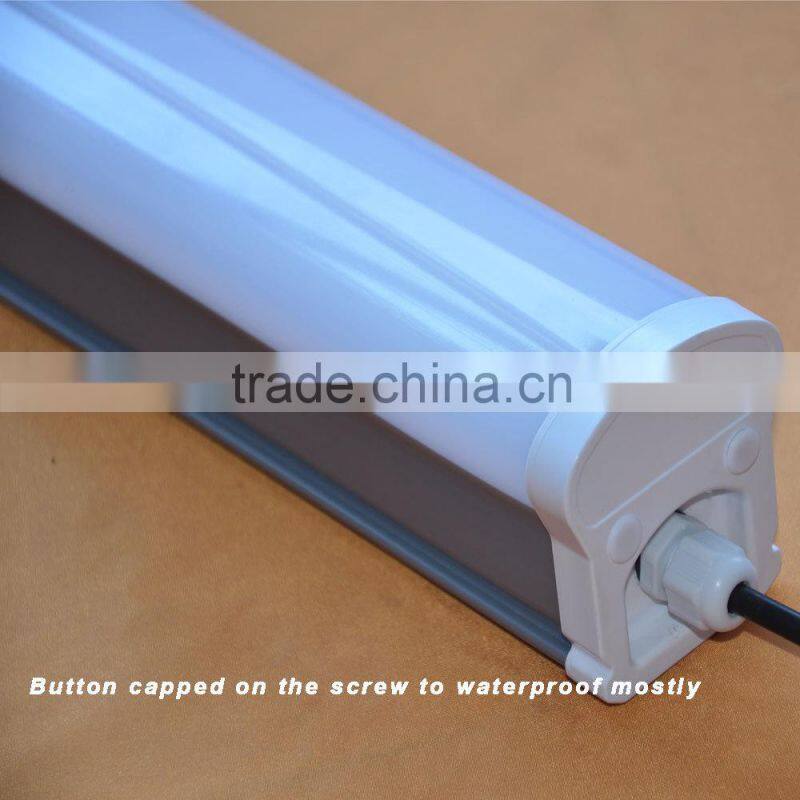

Button capped on the screw to waterproof mostly

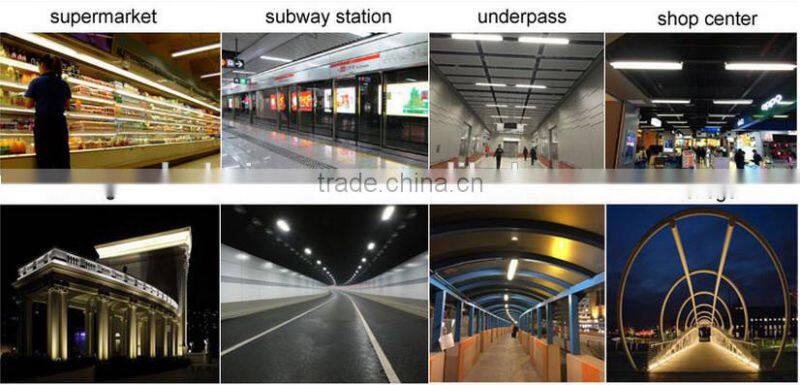

Packing place,tunnel,railway station ,warehouse ,Workshop, industrial production; Clean room, food processing, kitchen; Airport, train staion, bus station; Schools, offices, hospital, banks, hotels; Cold storage, refrigerating chamber etc.
Easy and quick to installation under ceiling or on surface
