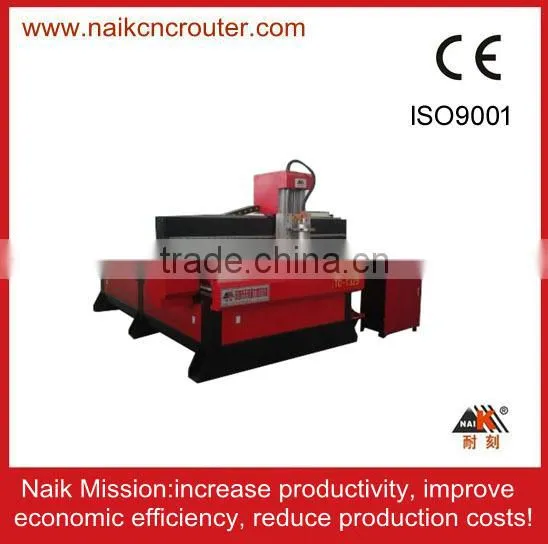

High Speed/Quality small used cnc router sale
Specifications of High Speed/Quality small used cnc router sale
| Platform Size (mm) | 1380mm* 2900mm |
| Engraving range (mm) | 1300mm* 2500mm |
| Structure options | Steel/ T-shape steel struture |
| Platform material | Aluminum/ Thickened aluminum optional |
| Table fixed type | T-clip/ Vacuum absorption optional |
| X Axis structure | 25mm linear square guide rail of HIWIN & Slanting gear rack |
| Y Axis structure | 25mm linear square guide rail of HIWIN & Slanting gear rack |
| Z Axis structure | 25mm dual screw-nut anti-gap rod |
| Z axis traveling height(mm) | 200mm |
| Working Voltage | 220V 50Hz |
| Spindle power (KW) | 1.8/ 2.2/ 3.0/ 4.5/ 5.5KW optional |
| Spindle speed | 0-24000 (r/ min) |
| Max Speed without material | 0-20000 mm/ min |
| Max working speed | 0-15000 mm/ min |
| X Axis Drive motor | Steping moter / Servo motor, optional |
| Y Axis Drive motor | Steping moter / Servo motor, optional |
| Z Axis Drive motor | Steping moter / Servo motor, optional |
| Resolution | 0.00625/ pluse |
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional |
| ATC | Yes/ No, optinal |
| Control system option | WeiHong Motion Control System of Shanghai |
| Code formats | G code, U00, mmg, nc |
| Cooling system | Water cooling/ Air cooling, optional |
Application Materials of High Speed/Quality small used cnc router sale
Suitable for wood, stone, acrylic, PVC, ABS etc
Rotary axis is for option, can engrave 2D and 3D objects
Advantages of High Speed/Quality small used cnc router sale
1. Taiwan double nuts ball screw,Germany slanting gear and linear square guide rail.
2. With heavy-duty machine frame, to ensure the structure stability, low inertia and no distortion.
3. Powerful compatibility for most of software such as: MasterCam, ProE, UG etc;
4. Suitable for various kinds of material engraving, such as wood, stone, aluminum etc.
Components of High Speed/Quality small used cnc router sale

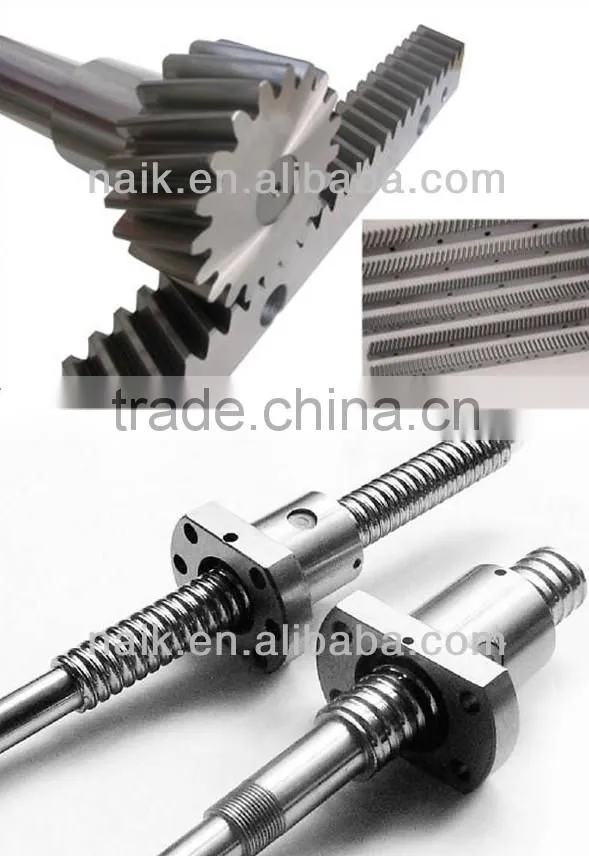

Slanting rack and ball screw (double nuts)

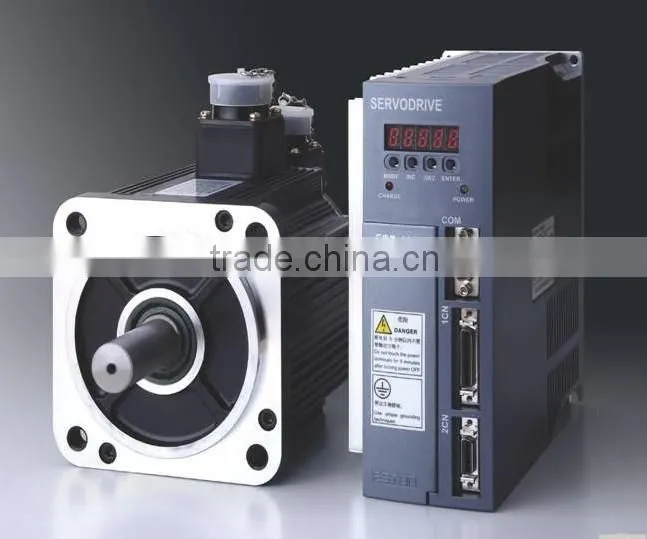

Servo motor and drive

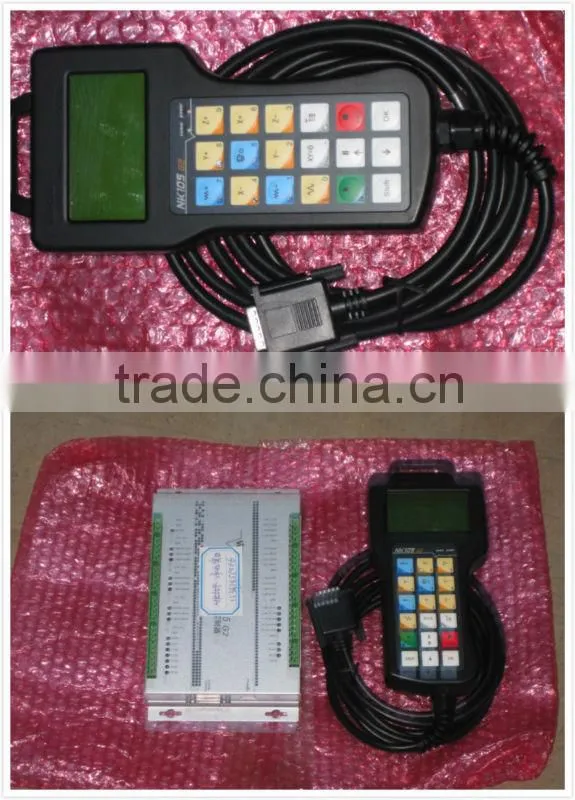

DSP control system (NcStudio)
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly English manual and Video CD for machine using and maintenance
Samples of High Speed/Quality small used cnc router sale

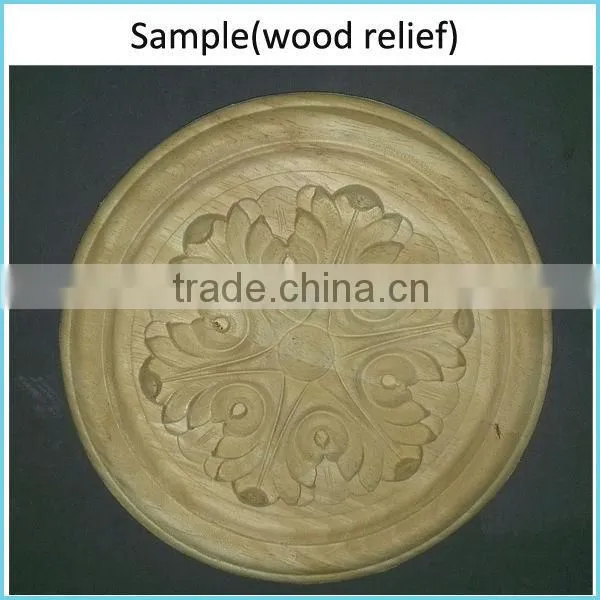

Wood sample
Stone sample

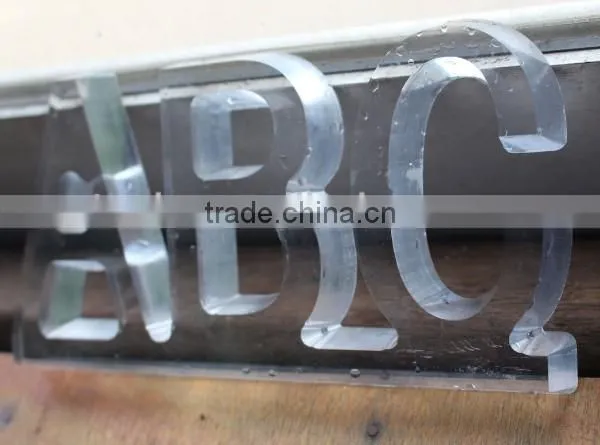

Acrylic sample
This machine can be put in an ordinary 20GP container. It will be packed simple.
Our engineer can go to your country and help reassemble the machine and provide trainning service if needed.

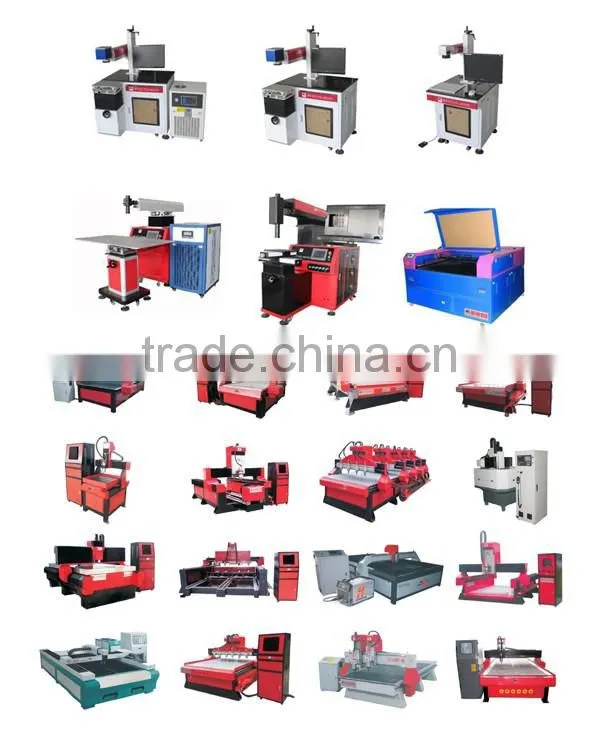

Other machines from Guangdong Shenzhen Naik CNC company
Shipping Terms
1. EXW
2. FOB Shenzhen
3. CIF+ Destination port
Payment terms
1.T/T: 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2.Western Union: Total amount should be below than 5000 USD,and the bank handling fee should be responsible for you.
3.L/C: We would like to talk details with you if you really need L/C payment terms.
We are Professional CNC Router Manufacturer located in Shenzhen city, China. We have been making cnc routers for more than 10 years. Now we have enough experience on customized machine, for example, larger working size machine.
We are now sincerely seeking for Global Exclusive Agent/Distributor, please feel free to contact me if you have any enquiries or questions. Thanks.
