8-spindle 3d smart cnc rotary engraving machine with cheap price
Product Features
1. T-gantry, with high precision linear square guide rails and double nuts ball screw for transmission.
2. Cutting size: 2400*1200 mm.
3. Control system: NcStudio control system, easy to learn and convenient to use.
4. Color is optional, vacuum table and dust collector can be added as your demand.
5. 8mm thick heavy-duty tubular steel main body to ensure the stability while working at high speed.
6. 8 spindles enhance working efficiency.
Application Materials
Suitable for plane and cylindrical material
Aluminum sheet, Copper sheet, Galvanized steel sheet, Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Hardwood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Grindstone, Jade, Crystal, Plexiglass etc.
Application Industries
Suitable for Furniture Industry, Moulding Industry, Craft Industry, Stone processing factories, Advertising Industry etc.
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly English manual and Video CD for machine using and maintenance
Specification:
Model No. |
9STC-2412-8 |
Table Size |
2400mm×1400mm |
Effective Working Area |
2400mm×1200mm |
Z Axis Travelling |
450mm |
Feeding Height |
550mm |
Body Frame/Structure |
8mm Heavy-duty Steel |
Table |
Aluminum alloy, T-slot |
X,Y Transmission |
Germany rack and pinion |
Z Transmission |
Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration |
Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy |
±0.1/300mm |
Spindle Rotating Speed |
0-24000rpm |
Spindle power |
2.2KW(3.0,4.5,5.5,6kw for option) |
Y Axis Drive Motor |
Shenzhen Leisai Stepper Motor(Double Motor) |
X,Z Axis Drive Motor |
Shenzhen Leisai Stepper Motor |
Movement Control |
NCSTUDIO Control System |
Carving Instruction |
G code*,U00*,mmg*,nc |
Resolution |
0.00625/pulse |
Collet |
3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system |
Water pump |
Power |
380V,50HZ±10(Internal Switch Power) |
Movement Pattern |
Gantry Moving |

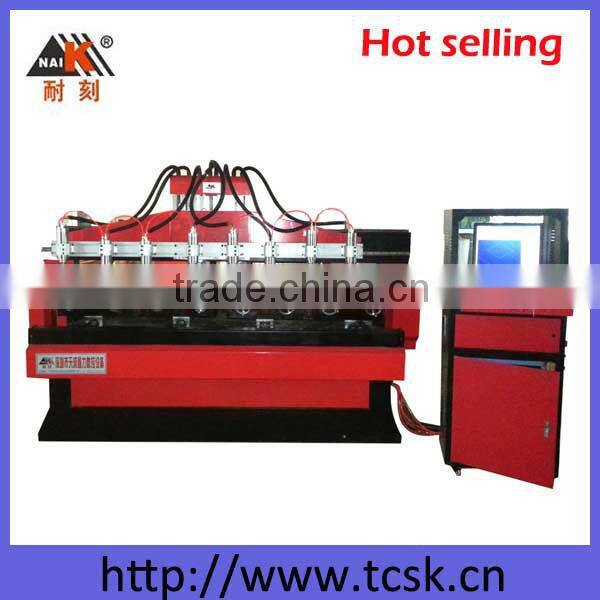

Product details with pictures:
All the specifications can be customized as requested!

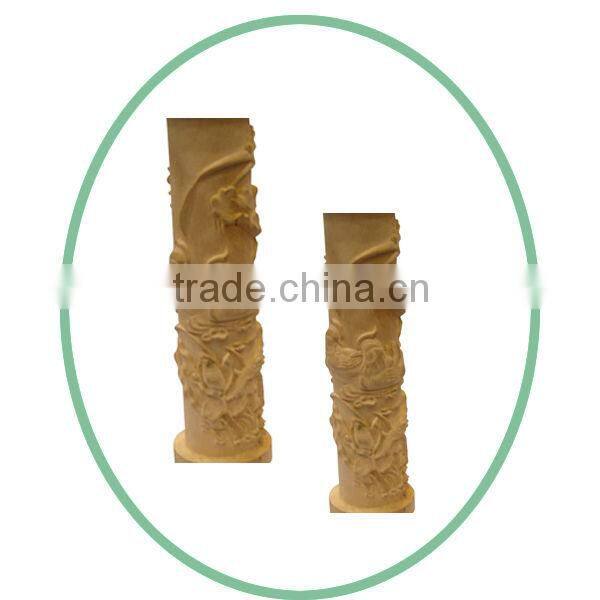

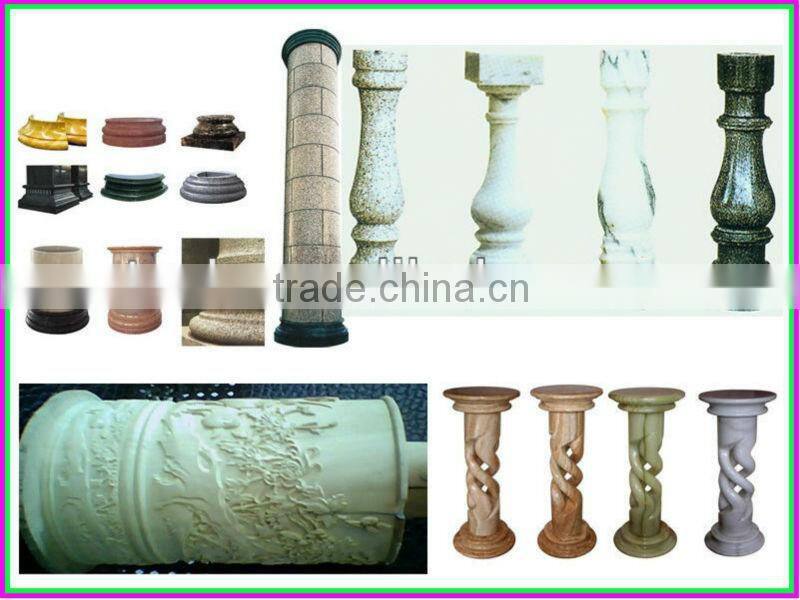

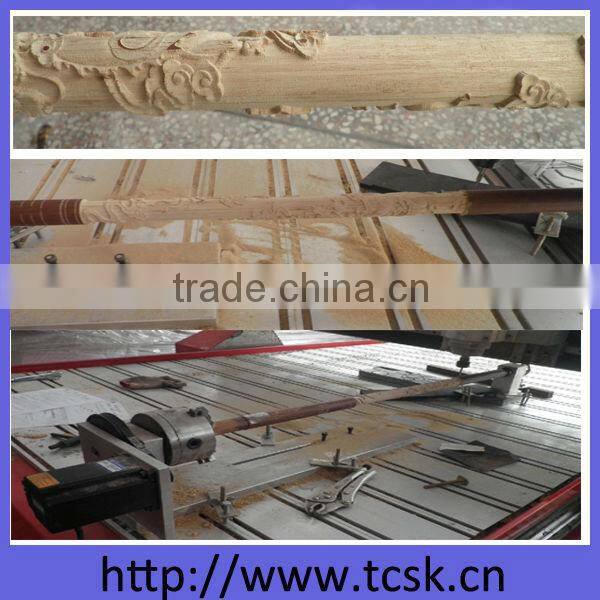

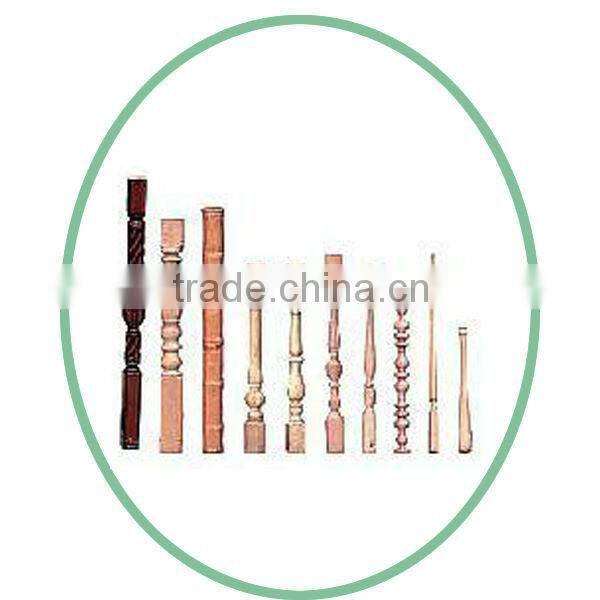

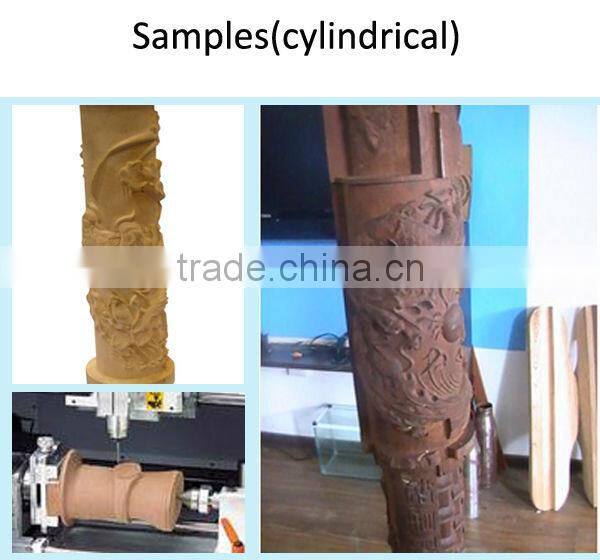

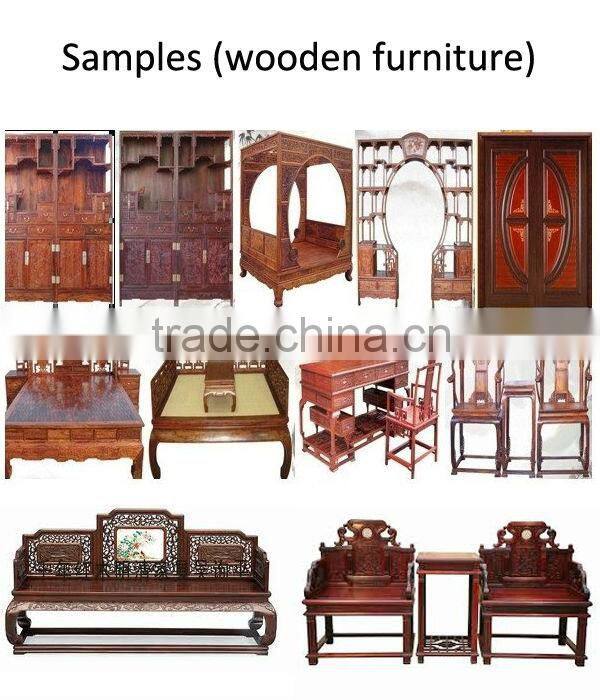

Pictures of sample:
Company Certificates
Packing
Pictures of our company
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact us !
