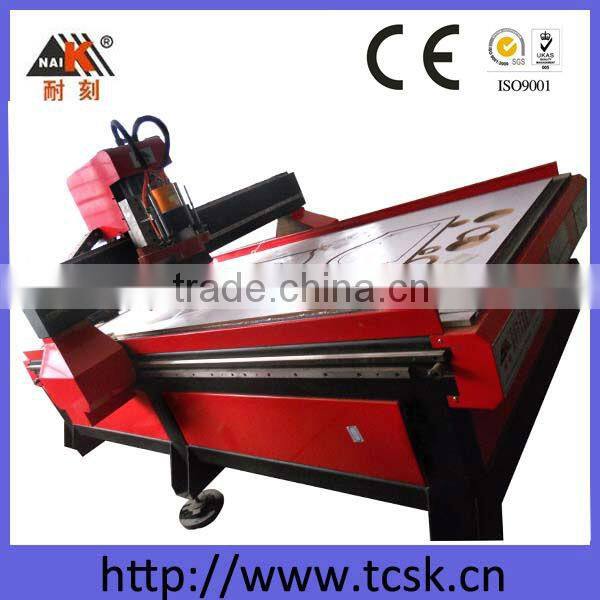

Hot-sale PVC CNC Router Machine with Vacuum Table and Auto tool changer
Product Features
1. T-gantry, with high precision linear guide rails and double nuts ball screw for transmission.
2. Cutting size: 1300*2500 mm.
3. Control system: NcStudio NK200 control system, easy to learn and convenient to use.
4. Color is optional, Rotary axis, vacuum table and dust collector can be added as your demand.
5. 8mm thick heavy-duty tubular steel main body to ensure the stability while working at high speed.
6. Automatic tool changer, magazine capacity is 8, change tools in 8 seconds.
Application Materials
Plastic Plate, PVC sheet, Artificial stone, Marble, Granite, Foam, Styrofoam, EPS Foam, Wood, MDF, Solid wood, Ceramic Tile, Tombstone, milestone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate, Jade, Crystal, Plexiglass, Aluminum sheet, Copper sheet etc.
Guarantee & After-sales service:
Guarantee for one year
24 hour technical support by email or calling
User friendly English manual and Video CD for machine using and maintenance
Technical Parameter
Model No. |
TC-1325A |
Table Size |
1380mm×2900mm |
Effective Working Area |
1300mm×2500mm |
Z Axis Travelling |
180mm |
Feeding Height |
200mm |
Body Frame/Structure |
8mm Heavy-duty Steel |
Table |
5.5kw Vacuum table |
X,Y Transmission |
Germany slanting rack and pinion |
Z Transmission |
Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration |
Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy |
±0.1/300mm |
Spindle Rotating Speed |
0-24000rpm |
Spindle power |
5.5KW(3.0,4.5,6,7.5kw for option) |
Y Axis Drive Motor |
France Schneider Servo Motor(Double Motor) |
X,Z Axis Drive Motor |
France Schneider Servo Motor |
Movement Control |
NCSTUDIO NK200 control system |
Carving Instruction |
G code*,U00*,mmg*,nc |
Resolution |
0.00625/pulse |
Collet |
3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system |
Water pump |
Power |
380V,50HZ±10(Internal Switch Power) |
Movement Pattern |
Gantry Moving |
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
Remark: The cost will be different with different configurations.
Machine details with pictures:
All the specifications can be customized as requested!

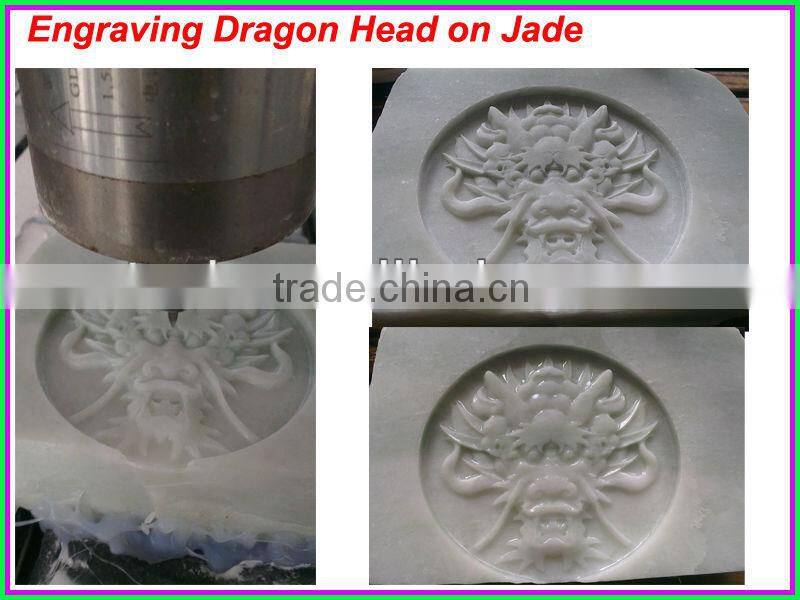

Pictures of sample:
Company Certificates
Packing
Pictures of our company
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact us !
