Help CenterHuawei ES1D2S04SX1E, 03030RGX, 4 10GBASE-X and 24 100/1000BASE-X and 8 10/100/1000BASE-T Combo Interface Card for Huawei S7700
Related Products
-
Huawei EH1D2X02XEA0, 03030NWT, 2-port 10GBASE-X Interface Card (EA, XFP) for Huawei S9700US$ 200 - 2,000MOQ: 1 Piece -
Huawei S1700-8-AC, 8 FE RJ45US$ 200 - 2,000MOQ: 1 Piece
-
Huawei S5352C-EI, LS-S5352C-EI, 48 Port 10/100/1000Base-T, Huawei SwitchUS$ 200 - 2,000MOQ: 1 Piece
-
Huawei S6324-EI, 24 GE SFP Ports or 10GE SFP+ Ports, Huawei SwitchUS$ 200 - 2,000MOQ: 1 Piece
-
Huawei S7712 POE Assembly Chassis ES0B017712P0 Huawei SwitchUS$ 200 - 2,000MOQ: 1 Piece

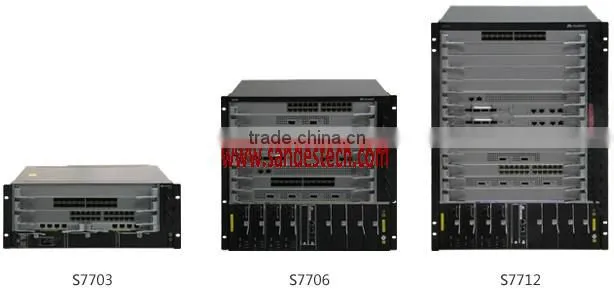

HUAWEI S7700 Routing Switch S7703 S7706 S7712
Item |
S7703 |
S7706 |
S7712 |
Switching capacity |
1.92 Tbps |
3.84 Tbps/5.12 Tbps |
3.84Tbps/5.12 Tbps |
Forwarding performance |
576 Mpps/1440 Mpps |
1152 Mpps/2880 Mpps |
1344 Mpps/3360 Mpps |
Service Slot |
3 |
6 |
12 |
VLAN |
Three types of interfaces: access, trunk, and hybrid |
||
Default VLAN | |||
VLAN switching | |||
QinQ and selective QinQ | |||
MAC address-based VLAN assignment | |||
MAC address |
MAC address learning and aging |
||
Static, dynamic, and blackhole MAC address entries | |||
Packet filtering based on source MAC addresses | |||
Limit on the number of MAC addresses learned on ports and VLANs | |||
Ring Protection |
STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) |
||
SEP | |||
BPDU protection, root protection, and loop protection | |||
BPDU tunnel | |||
ERPS(G.8032) | |||
IP routing |
IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
||
IPv6 dynamic routing protocols, such as RIPng, OSPFv3, ISISv6, and BGP4+ | |||
Multicast |
IGMPv1/v2/v3 and IGMP v1/v2/v3 snooping |
||
PIM-DM, PIM-SM, and PIM-SSM | |||
MSDP and MBGP | |||
Fast leave | |||
Multicast traffic control | |||
Multicast querier | |||
Multicast packet suppression | |||
Multicast CAC | |||
Multicast ACL | |||
MPLS |
Basic MPLS functions |
||
MPLS OAM | |||
MPLS-TE | |||
MPLS VPN/VLL/VPLS | |||
CSS switch fabric clustering |
CSS Switch Fabric Clustering (S7706 and S7712) |
||
Service port clustering |
Service Port Clustering (S7706 and S7712) |
||
Reliability |
LACP and E-Trunk between devices |
||
VRRP and BFD for VRRP | |||
BFD for BGP/IS-IS/OSPF/static route | |||
NSF and GR for BGP/IS-IS/OSPF/LDP | |||
TE FRR and IP FRR | |||
Ethernet OAM (IEEE 802.3ah and 802.1ag) | |||
ITU-Y.1731 | |||
DLDP | |||
ISSU | |||
QoS |
Traffic classification based on Layer 2 protocol packet header, Layer 3 protocol information, Layer 4 protocol information, and 802.1p priority |
||
ACL, CAR, re-mark, and scheduling | |||
Queue scheduling algorithms including SP, WRR, DRR, SP+WRR, and SP+DRR | |||
Congestion avoidance mechanisms, such as WRED and tail drop | |||
Traffic shaping | |||
Configuration and maintenance |
Easy Operation |
||
Console and SSH terminals | |||
Network management protocols, such as SNMPv1/v2/v3 | |||
File uploading and downloading using FTP and TFTP | |||
BootROM upgrade and remote upgrade | |||
Hot patches | |||
User operation logs | |||
Security and management |
802.1x authentication and portal authentication |
||
NAC | |||
RADIUS and HWTACACS authentication | |||
Different user levels for commands, preventing unauthorized users from using certain commands | |||
Defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks | |||
1K CPU queues | |||
Ping and traceroute | |||
RMON | |||
Value-added service |
Firewall |
||
NAT | |||
Netstream | |||
IPSec | |||
Load balancing | |||
AC | |||
IPS | |||
Energy conservation |
IEEE 802.3az: Energy Efficient Ethernet (EEE) |
||
Dimensions (W x D x H) |
442 mm x 476 mm x 175 mm |
442 mm x 476 mm x 442 mm |
442 mm x 476 mm x 664 mm |
Chassis weight (empty) |
< 15 kg |
<30 kg |
< 45 kg |
Working voltage |
DC: –38.4 V to –72 V |
||
Maximum power consumption of the entire equipment |
≤800 W |
≤1600 W |
≤3000 W |
Maximum PoE power |
2200 W |
8800 W |
8800 W |
About the distribution:
As a golden distributor of HUAWEI, all of HUAWEI prodcucts from Polytrade/Sandes Technology are 100 % Original and Brandnew unless per clients’ requests; customers could claim 10time cost if you find we offer used or fake products. We offer one year warranty for all on-display products.
The HUAWEI products by us are whole series of hot-sell products, and if you did not find what you need on alibaba web, please contact us via sales[at] to gain supports.
