Specifications
mini pcb cnc drill router]1.CE ISO FDA SGS
2 casting iron machine body
3 600*600mm working range
4 3D control car

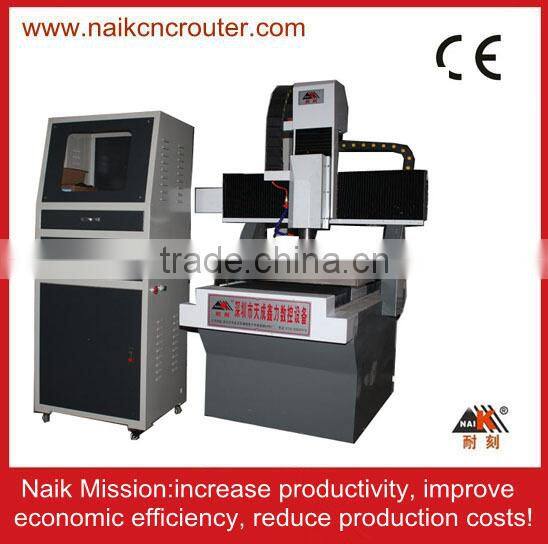

mini pcb cnc drill router Manufacturer price selling
1.1 Features of mini cnc pcb router
- High quality laser tube, long life
- Small size, easy to move
- HIWIN brand guide and ball screw
- Control software NcStudio is convenient to use, great compatibility
- Support BMP, GIF, JPG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF etc format
- Support TTF FONT
- Best quality cnc router machine from Shenzhen Naik

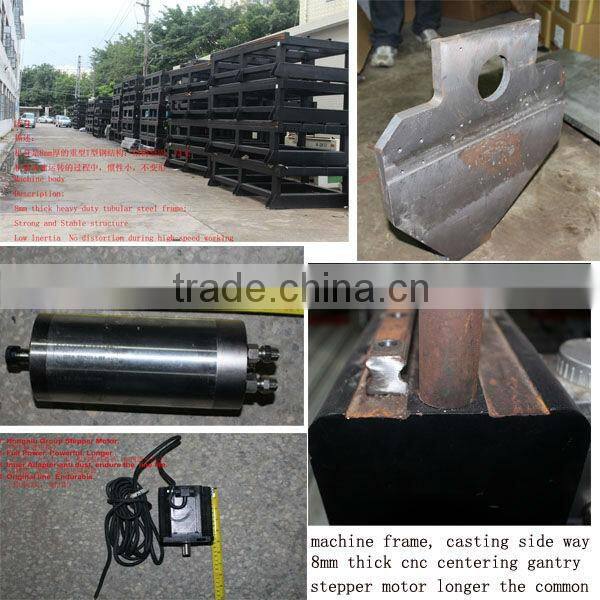

Casting iron side wall and casting iron body for making sure the accuracy and stability when the machine is working.
1.2 Application material ( mini cnc pcb router )
It is mainly for some high requested quality and high precision metal mold or other material mold engraving. The accuracy can be very high, 0.02mm.
For different specifications, the engraving effect will be different.
1.3 Application industry ( mini cnc pcb router )
It is widely used in industrial mold making. Thus it can instead most troditional way, which bring much profit for the customer. In China, maybe we are not the most professional in this field, but we must be the second biggest manufacturer and professional in this field.
1.4 Specifications of hot sale mini mold machine
Model |
11STC-6060A-2Z |
X Y working area |
600 x 600 mm |
Feeding height |
350 mm |
Structure |
Aluminum casting structure. Gantry moving type |
Movement parts |
X and Y axis --- slanting gear, Z ----1605 ball screw |
| |
Motor |
Shenzhen Leadshine brand stepper motor |
| X Y Z transmission | 2510 HIWIN ball screw |
Spindle power |
3kw water cooling |
Working Speed |
0-20000mm/min |
Control system |
NK300 |
Command code |
HPGL, G code |
Working precision |
0.05mm/300mm |
Repeatability |
0.01 mm |
Power |
110/220/380V |
Compatible Software |
Type3/Artcam/UG/Pro-E/Mastercam/Ucancam V8 etc |
Tool bits shank |
3.175-6mm |

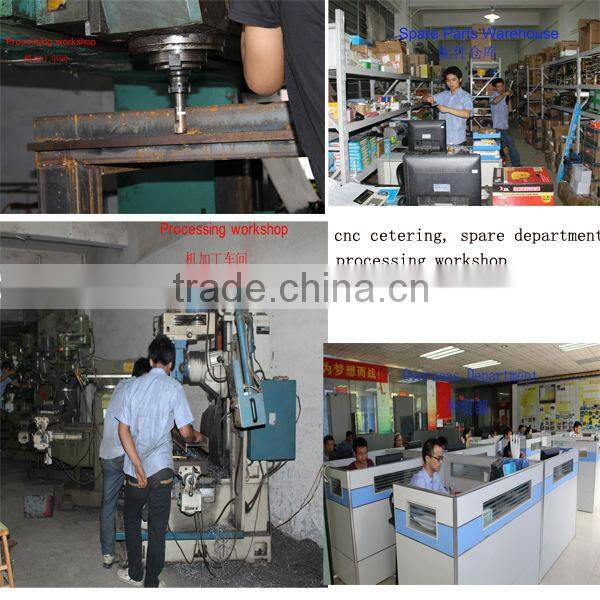

2.1 Naik Factory ( cnc engraving machine)
2.2 hot sale mini cnc router
This machine can not only engrave stone, marble, granite, jade, gemstone, aluminum, copper, iron, steel, but also it can do 3d productions as the decorations. Of course, we need to add another rotating axis to make it become 4 axis machine, then it can do.
It can also do the plaster mold, used for the ceramic tile industy.
2.3 Certificates -CE/FDA/BV etc. ( cnc engraving machine )
2.4 Booking Procedure with Shenzhen Naik
3.1 Payment terms
--T/T : 30% T/T in advance and pay the balance 70% when goods are ready before shipping.
--Western Union: Total amount is better to be below USD$5000
--L/C: We accept payment by L/C.
_DP payment terms
_OA payment terms
3.2 Custom Services
1.One year equipment warranty and maintenance for lifetime.
2.Free installation and test before shipping and free training for operators
3.Advice for the solutions best for customers requirements.
4.Free training and sample provided
5.Meet CE,FDA,ISO9001 standards

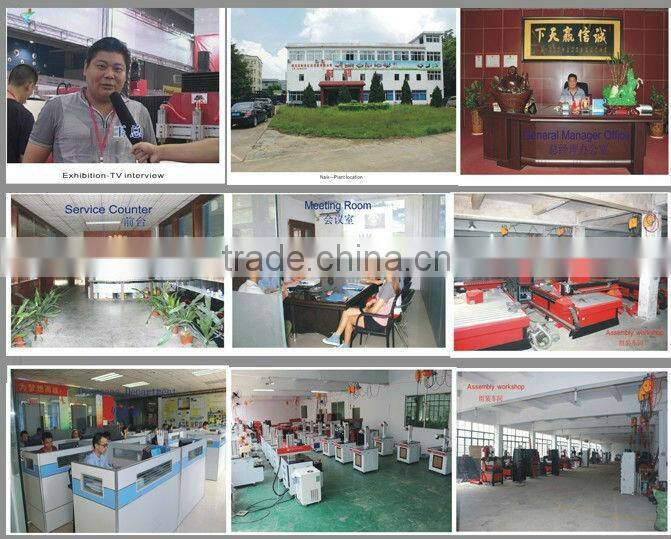

3.3 Company brief introduction
We are ISO9001 factory which is specialized in manufacturing:
1. CNC Cutting/Engraving Machine (CNC Router)
2. CNC Laser Marking Machine / Laser Cutting Machine
3. CNC Plasma Cutter
4. CNC Accessories, Tool Cutter & 3d Scanner for CNC Router
Remark: All of our products have CE, FDA Certificates.
Now we are searching for the distributors and agents from all over the world. If you are interested, welcome to your further inquiry.
