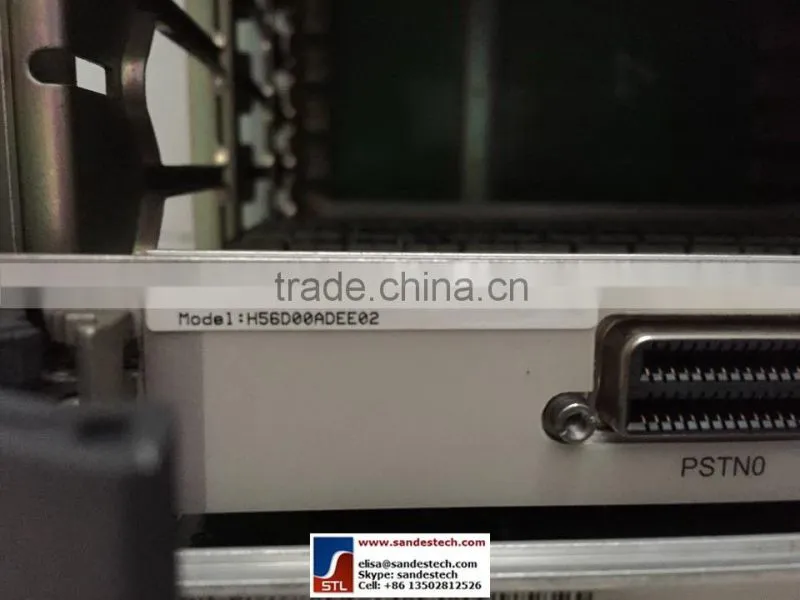

Help CenterHuawei VDEB H565VDEB2 H56D00VDEB02 32-channel VDSL Board for Huawei MA5600 MA5603
Related Products
-
Huawei UA5000 DSL CC0HASL1 CC0HASL0 SASL VASL KASL SHLB PVMD IPMD IPMB PVMB HWTB HWCB HWTF HWCFUS$ 50 - 500MOQ: 1 Piece -
Huawei UA5000 SDLE HLEF HLAF EFTF HABA HABD HABF HABL HABM VASL EDTB SHLB SAPF RATF SLTF SAPB RATB E1TF EFTF EDTBUS$ 50 - 500MOQ: 1 Piece
-
Huawei MA5603 With Huawei SCUB O2GS O4GS ADEE ADEF ADGE SHEA SPLF E4GFA E2GAUS$ 50 - 500MOQ: 1 Piece
-
Cable for ZTE 9806H ZTE ZXDSL 9806HUS$ 50 - 500MOQ: 1 Piece
-
ZTE VOPCB FEUA FEUB FEUC GFUA GFUB GFUC EPNA GPNB SCCBK for ZTE 9806H ZTE ZXDSL 9806HUS$ 50 - 500MOQ: 1 Piece
Huawei ADSL2+/VDSL2 IP DSLAM SmartAX MA5600
Huawei's SmartAX MA5600 product series includes the large-capacity SmartAX MA5600 and medium-capacity SmartAX MA5603. The MA5600 is a GE-based IP broadband access device.
Regarded as "the aircraft carrier of the broadband access industry", the MA5600 has powerful bandwidth processing capabilities, decent service functions, and sustainably optimized line features. These capabilities and functions help build optimum broadband networks and strengthen their individual competitiveness.

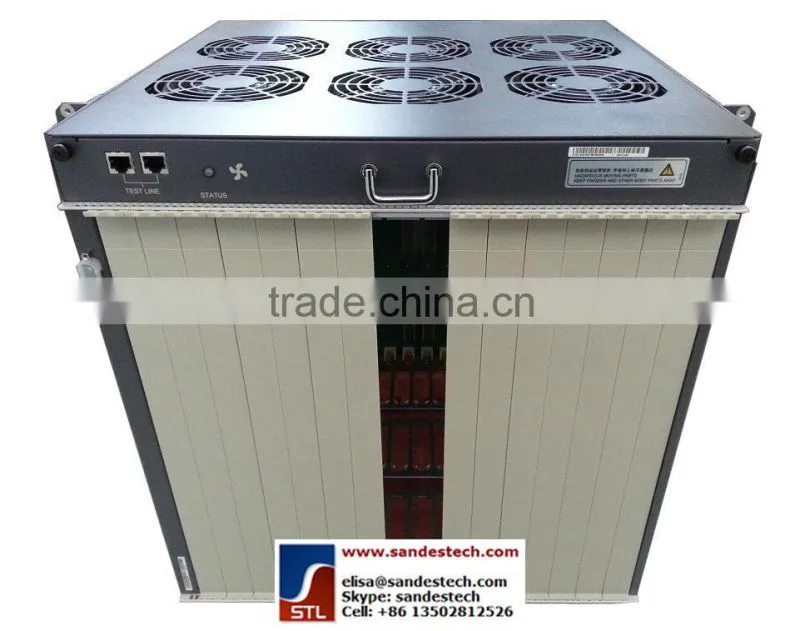

1.10U ,19' MASN ADSL2+DSLAM SHELF ,with two manager and uplink card slot ,14*line card slot,4*100/1000M uplink,AC or DC power input
2. have 64 to 896 ports subscriber line interface with POTS splitter built-in achieved 10U height space saving design
3. Large Capacity and High Integration
4. Powerful Multicast Services
5. Smart Triple Play Solutions
6. Superb Service Wholesale Solutions
7. Abundant Ports ,Guaranteed QoS
8. Comprehensive User Management, Flexible Networking
9. Carrier-Class Reliability ,Strict Security ,Superior Maintainability and Manageability
- Large Capacity
The MA5600 supports 64-port ADSL2+ service boards with built-in splitters, which enables a single service subrack to provide services for up to 896 subscribers. A MA5600 cabinet, as a result, can provide services for up to 2,688 subscribers. Even with very little space, operators can still provide services to communities with a high subscriber density. The MA5600 also supports 32-port VDSL2 service boards with built-in splitters and 32-port SHDSL.bis service boards.
- Improved Digital Subscriber Line (DSL) Access
The MA5600 supports multiple access technologies including VDSL2, ADSL/ADSL2/ADSL2+, G.SHDSL, and G.SHDSL.bis. In addition, the MA5600 supports four-pair G.SHDSL.bis bonding technology as well as long-distance access in Annex L mode, with a maximum transmission rate of 245 Kbit/s over a distance of 6.5km.
- Decent Service Functions
To facilitate service operation, maintenance and expansion, the MA5600 has the following service functions: sound IP routing/forwarding capability, multi-protocol label switching (MPLS), pseudo wire emulation edge-to-edge (PWE3), multiple spanning tree protocol (MSTP), link aggregation control protocol (LACP), Ethernet operation, administration, and maintenance (OAM), simple network management protocol (SNMP) v3, Annex M, and Ethernet access.
- Enhanced Network Evolution Performance
By supporting end-to-end solutions for smooth evolution from ATM networks to IP networks, the MA5600 can maximize customer network values. With IPv6, the MA5600 can help customers gain future revenue from today's investments. Also, EPON upstream transmission capabilities allow the MA5600 to provide services on FTTx networks.
Applications & Benefits
A pioneer in the IP access industry, Huawei ranked top in the world's DSL market for product delivery in 2009. Huawei has been leading the global IP broadband access market for the last six years.
Huawei's digital subscriber line access multiplexer (DSLAM) products have competitive service functions and good service priority assurance policies, which increase the network bandwidth usage and meet the quality requirements of different services. The MA5600 also supports multiple service access modes, giving subscribers richer services and helping operators build their individual competitive abilities.
The MA5600 can ensure a minimum bandwidth of 30 Mbit/s for each subscriber and supports 1,000 multicast channels for streaming media, such as video on demand, video conferencing, online gaming, high-speed data transmission, high-definition video services, as well as any combination of these services. Such performance enables Huawei's customers to provide customized services for subscribers, which in turn leads to increased subscriber loyalty.

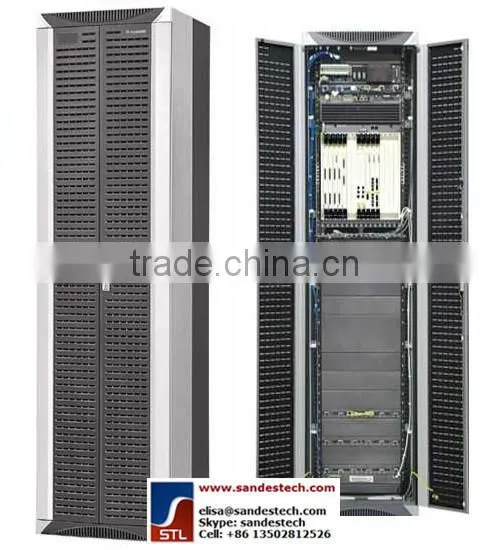

Cabinet Configuration and Capacity:
provides the hardware configuration and the capacity of the MA5600 cabinets.
Hardware configuration and capacity of the MA5600 cabinets :
Cabinet Model |
Dimensions (W x D x H) |
Service Configuration |
Maximum ADSL Subscribers |
|---|---|---|---|
H66-18 |
600mm×600mm×1800mm |
1 service shelf + 1 SPL shelf |
896 |
2 service shelves |
1792 |
||
N66-22 |
600mm×600mm×2200mm |
1 service shelf + 1 SPL shelf |
896 |
1 service shelf + 2 SPL shelf |
1792 |
||
3 service shelves |
2688 |
||
F01D200 |
1250mm×550mm×1200mm |
1 service shelf |
256 |
F01D500 |
1550mm×550mm×1550mm |
1 service shelf |
512 |
F01E400 |
1000mm×550mm×1200mm |
1 service shelf |
384 |
Boards :
The MA5600 supports the super control unit (SCU) board, service interface boards, and SPL boards. Each type of board is different in function.
The boards of the MA5600 include the control boards, service boards, and other boards.
1. Control board of the MA5600 :
Board |
Name |
Function |
External Port |
|---|---|---|---|
SCU |
Super control unit |
|
|
2. Service boards of the MA5600 :
ADEF |
ADSL2+ over POTS service board |
It supports:
|
64 ADSL2+ ports |
ADBF |
ADSL2+ over ISDN service board |
It supports:
|
64 ADSL2+ ports |
ADEE |
ADSL2+ over POTS service board |
It supports:
|
64 ADSL2+ ports |
SHEB |
SHDSL.bis service board |
It supports SHDSL.bis access. |
32 SHDSL ports |
SHEA |
SHDSL service board |
It supports SHDSL access. |
32 SHDSL ports |

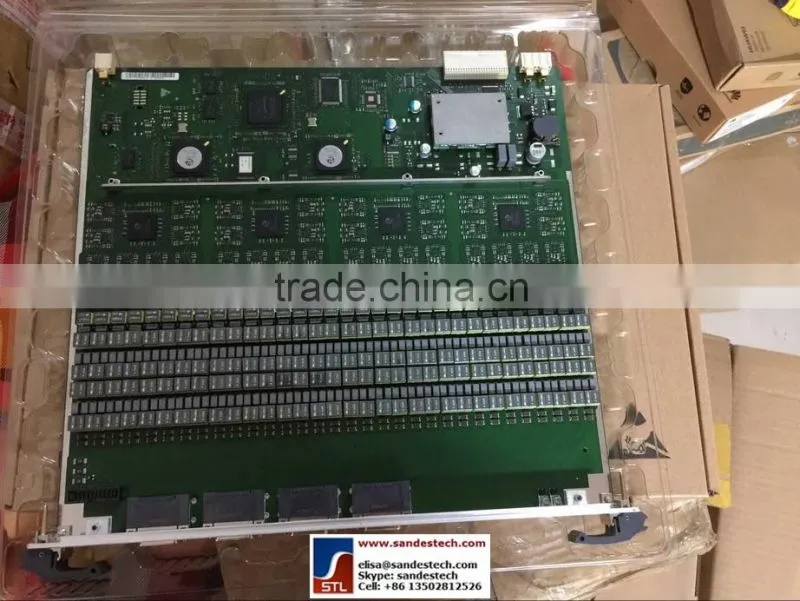

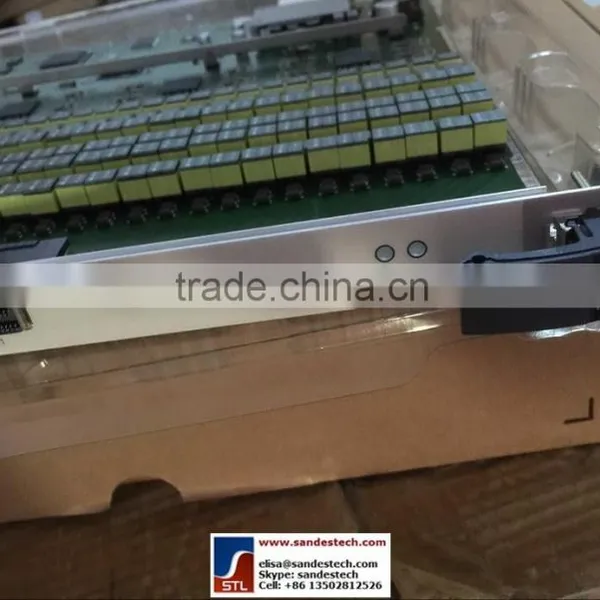

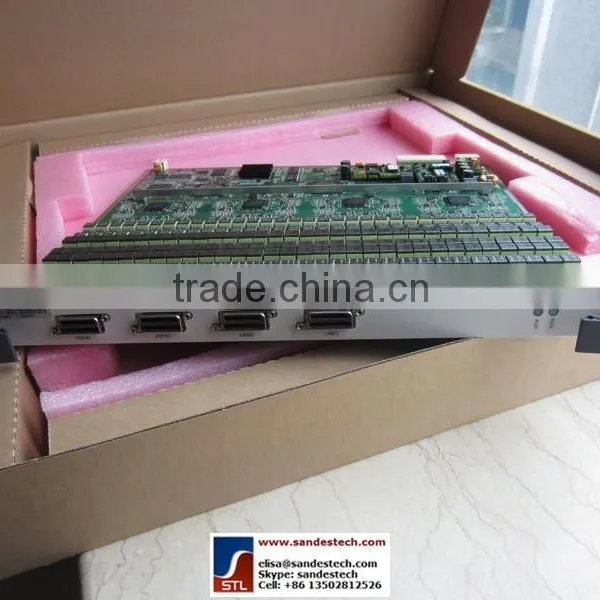

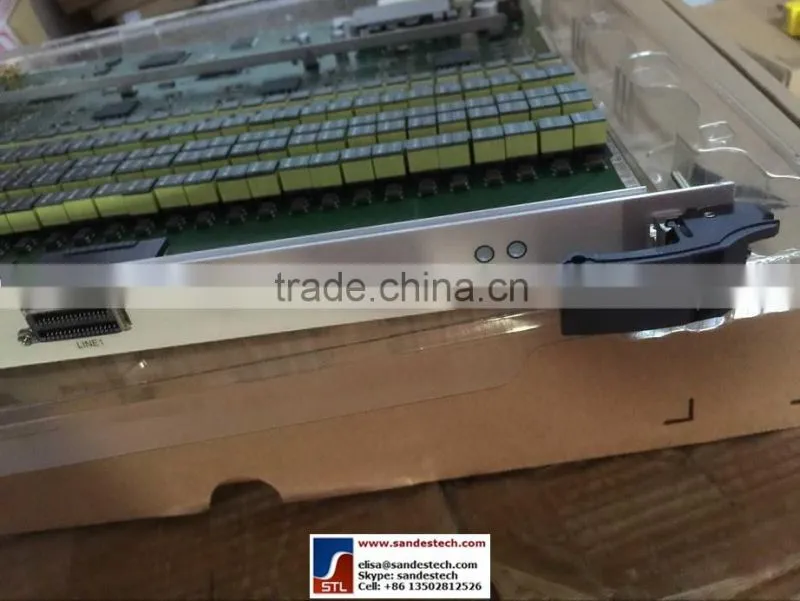

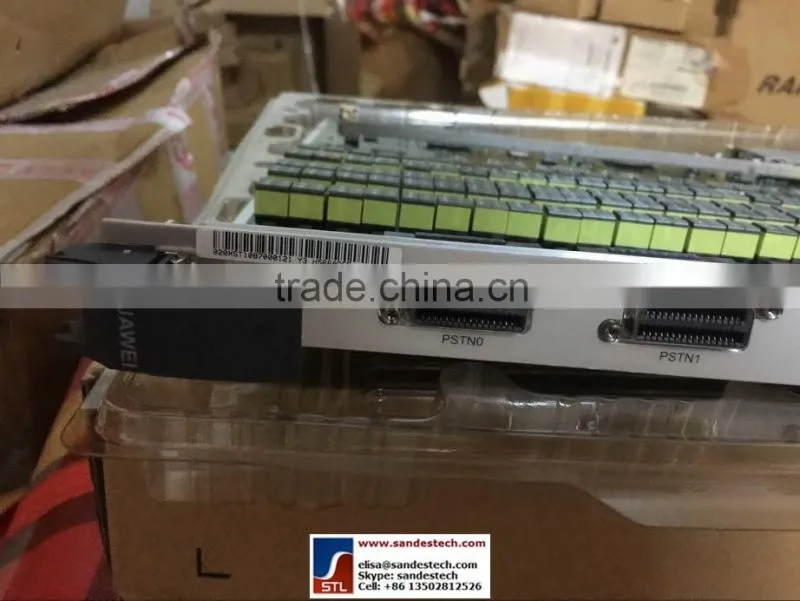

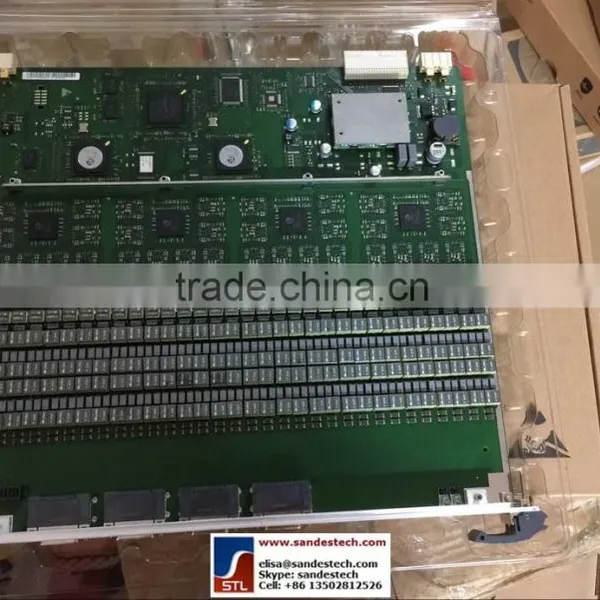

VDEB* |
VDSL2 interface board |
It supports:
|
32 VDSL ports |
VDBD |
VDSL2 interface board |
It supports:
|
32 VDSL ports |
AIUG* |
ATM interface board |
It supports:
|
4 STM-1 ports or 8 IMA E1 ports |
ETHA* |
Ethernet subtending board |
It is used for GE/FE subtending and provides subtending ports. |
8 GE optical/electrical ports or 8 FE optical/electrical ports |
3. SPL boards of the MA5600 :
Board |
Name |
Function |
External Port |
|---|---|---|---|
SPLH* |
64-port ADSL2+ over ISDN SPL board |
It supports:
|
|
SPLF* |
64-port ADSL2+ over POTS SPL board |
It supports:
|
|
SPLL* |
64-port ADSL2+ over POTS SPL board |
It supports:
|
|
