Product Details
Place of Origin: | Guangdong, China | Brand Name: | ZTE | Model Number: | ZTE ZXSS10 SS1b |
Packaging Details
Original & Brandnew Packaging
Product Description

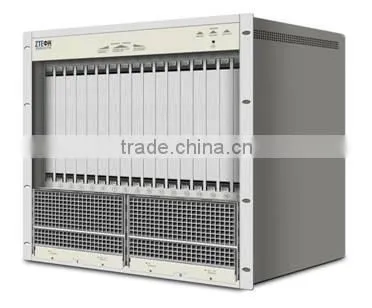

ZTE ZXSS10 SS1b Softswitch GSPC1 ESPC GPDU2 RSB/A MXES1 RMXES GPU1 E2040
ZTE ZXSS10 SS1b GSPC1 ESPC GPDU2 RSB/A MXES1 RMXES GPU1 E2040
ZXSS10 SS1b Convergent Soft-Switch - ZTE Corporation
ZXSS10 SS1b Convergent Soft-Switch
Overview
ZXSS10 SS1b, the core device in ZTE's Softswitch architecture, implements such functions of call control, media gateway access, routing, authentication, protocol processing, accounting, etc., independent of bottom bearer protocol.
Cooperating with an application server of SCP at the service layer, the ZXSS10 SS1b not only provides PSTN basic and supplementary services, but also provides multimedia, traditional IN, individual IP-based and value-added services.
Softswitch Control Device ZXSS10 SS1b - ZTE Corporation
Features
- Interoperable capability
- Flexible scalability
- Extensive service capability
- Perfect access capability with integrated devices
- Massive networking capability
- Manageability and operability
- High reliability
Applications
- Backbone data network for toll services
- Enterprise network for VoIP services
- Internet for IP value-added services
- Metropolitan network for local services
- Multimedia services
- Integrated IN services
- PSTN and IN interoperation services
Functions
- Processes basic and enhanced calls
- Protocol Adaptation
- Provides service platforms with an open and standard interface - supports future expansion
- Interconnects and interoperates with peers
- Supports accounting, authentication, maintenance, etc.
- Address resolution: Converts E.164 address to IP addresses
- Controls whether media gateway shall adopt voice compression and provides optional algorithms as necessary
- Provides strong dual-homing mechanism
- Centrally managed system resources such as resource allocation, release and control
Protocol Capability
- Call control protocols: ISUP, TUP over IP, SIP, SIP-T, SIP-I, H.323, BICC, V5.2, R2, PRA
- Transport control protocols: TCP, UDP, SCTP, TCAP/SCCP, M3UA, M2UA, M2PA, IUA, V5UA
- Media control protocols: H.248/MEGACO, SIP, MGCP, NCS
- Service application protocols: INAP(CS2), LDAP, RADIUS, MAP
- Maintenance management protocols: SNMP, FTP, Telnet
Performance Capability
- System Capacity:
Subscribers: 16,000,000 (max.)
Trunks: 1,600,000 (max.)
Signaling gateway numbers: 1000 (max.)
Max number of signaling point: 1024
Max number of signaling link: 1500 64k or 100 2M
Media gateway numbers: 2 million
Black/While list: 5 million
Accuracy of billing: ≥ 99.9999%
Cascading frames: 8 (max.) - Processing Capability:
Single frame: BHCA: not less than 2M for subscribers (max.)
Single system: BHCA: not less than 16M for subscribers (max.) - Reliability:
Recovery time: less than 5 minutes (max.)
Annual failure time: 5.3 minutes (total)
Services
- Voice services: 100% with PSTN/ISDN basic and supplementary services
- Softswitch services: Wide area IP Centrex, Broadband IP phone bar services, etc.
- Integrated voice / data services: Click-to-dial, Web 800, Web conference, ONLY, prepaid, etc.
- Multimedia: Videophone, Video conference, SoftDA , etc.
- Cooperated with application server: Unified information, Prepaid, Voice-mail, etc.
Position
ZXSS10 SS1b is located at the control layer.
- Trade terms: FOB,CIF,CFR,etc
- Price Terms: L/C,D/P,T/T,Western Union,PAYPAL
- Payment Terms: T/T in advance
- MOQ: 1 pcs
- Port: Hongkong / Shenzhen
- Lead time: Within 5 working days after receipt payment.
- Shipment: Express, Air, Sea
- Supply capability: 200 Piece/Pieces per Week
- Sample availability: Yes( not free)
- Package information: carton package with Huawei /Alcatel / ZTE/ Emerson original package
- All the products 100% New and Original
- Pre-sale&Post-sale Support from HUAWEI&ZTE
- Design and plan ability, low cost alternative solution
- Provide complete transmission product series
- Enough spart part stock
- 1 Year Warranty, Accept RMA
- Ready Stock, Fast Delivery
