Specifications of stone cnc router
| Machine Model | 10STC-1313(stone cnc router) |
| Platform Size | 1300*1300mm |
| Working Size | 1300*1300mm |
| Z-axis Travel | 180mm |
| Feeding Height | 200mm |
| Fuselage Structure | 6mm thick Heavy-duty Tubular steel frame,full-weld,VSR process |
| Table Material | 3mm*5mm*24mm (T Slot aluminum) |
| Z-axis Clevis | U-shaped cast aluminum machined by CNC center |
| Sidewall of Y axis | Cast Iron machined by CNC center |
| Fuselage | 6mm steel machined by CNC center |
| Sheet metal for X axis Drag Chain | Cast Aluminum machined by CNC center |
| The Beam | 8mm steel machined by CNC center |
| Frame | 4mm steel machined by CNC center |
| Sheet Metal | 2mm baking sheet metal |
| Adsorption Method | With T-slot for clamp fixturing |
| X,Z Transmission | HIWIN 2510 Ball Screw |
| Y Transmission | HIWIN 2510 Ball Screw |
| Rail Configuration | HIWIN 25 Square guide rail |
| Positioning accuracy | ±0.05/300mm |
| Spindle Speed | 0-24000(r/min) |
| Y-axis dual drive | Servo Motor Original Yaskawa |
| X,Z axis drive | Servo Motor Original Yaskawa |
| Control System | Taiwan SYNTEC human-interface control system |
| Code Formats | G Code,U00,mmg,nc |
| Idle speed | 0-20000mm/minute |
| Working speed | 0-15000mm/minute |
| Resolution | 0.00625/Pulse |
| Tool Diameter | 3.175,4mm,6mm,8mm,10mm,12.7mm |
| Spindle Power | 3.2kw constant power spindle |
| Converter | 6pcs Shenzhen Sunfar Converter |
| Cooling System | Water Pump |
| Actual Weight | 2800kg |
| Power | 380V50Hz±10 (Internal Power) |
| Electric Box | Integrated computer control cabinet |
| Moving Pattern | Table moving |
| Dust collector | Dust Collector is for option |
Application Materials stone cnc router
Suitable for aluminum, steelm stone, tombstone, red wood, hard wood, MDF etc
Rotating axis is for option
Advantages of stone cnc router
1. Taiwan double nuts ball screw, linear square guide rail.
2. With heavy-duty machine frame, to ensure the structure stability, low inertia and no distortion.
3. Powerful compatibility for most of software such as: MasterCam, ProE, UG etc;
4. Suitable for various kinds of material engraving, such as wood, PVC etc.

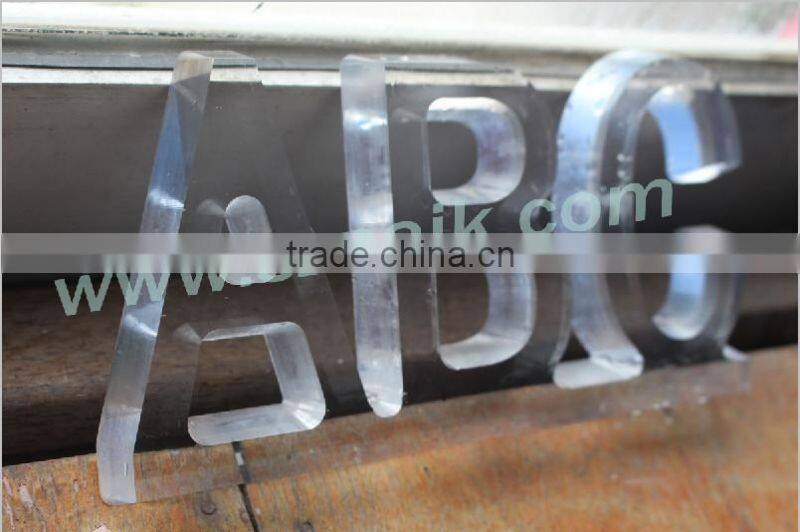

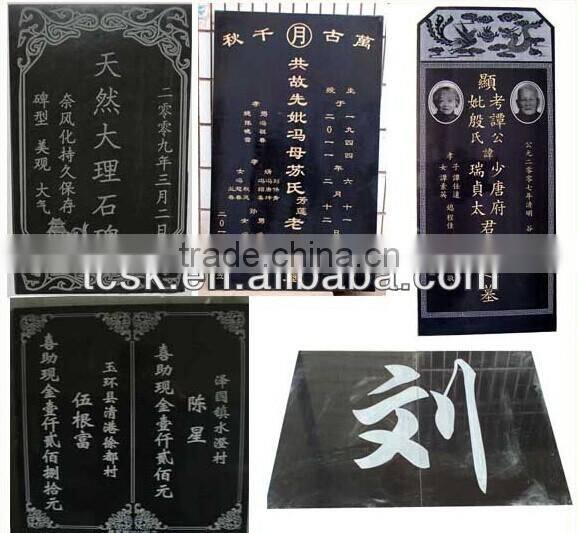

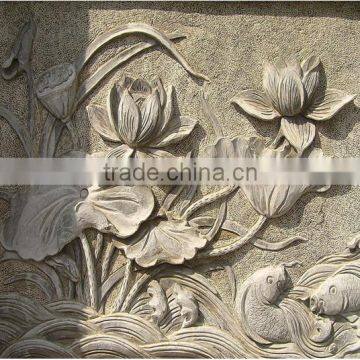

Samples of stone cnc router
On the fair
Our factory
Packing of stone cnc router
This machine can be put in an ordinary container.
Shipment terms of stone cnc router:
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Payment terms
--T/T : 30% T/T in advance and pay the balance 70% against goods ready before shipping.
--Western Union :Total amount should be below than $5000USD
--L/C:We would like to talk details with you if you really need L/C payment terms.
Custom Services
Please kindly tell us your materials, and materials’ size.Then we can quickly check and recommend to you the right machine with right working area.
Factory custom service provided.
If you are urgent about the machines, please leave your workable telephone number or add me on Skype. My Skype ID is: vicky.wei2014. You can l
eave your message of this product you're seeing, and send us inquiries at the bottom of product introduction"Message'blank box" .We will reply you
any questions soonest !
Any question, you can contact with me:
Looking for agents in the world!!!!
