Hot sale cheap desktop cnc router kit 1325 machine
- 130 Set / Sets per Month
- Shenzhen
- T/T Credit Card
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Guangdong, China |
Brand Name: | NAIK | Model Number: | 4STC-1325HC | Voltage: | 110/220/380V 50±10HZ |
Power(W): | 3KW | Dimension(L*W*H): | 1300*2500*180 | Weight: | 1300KGS |
Certification: | CE,FDA,ISO9001 | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

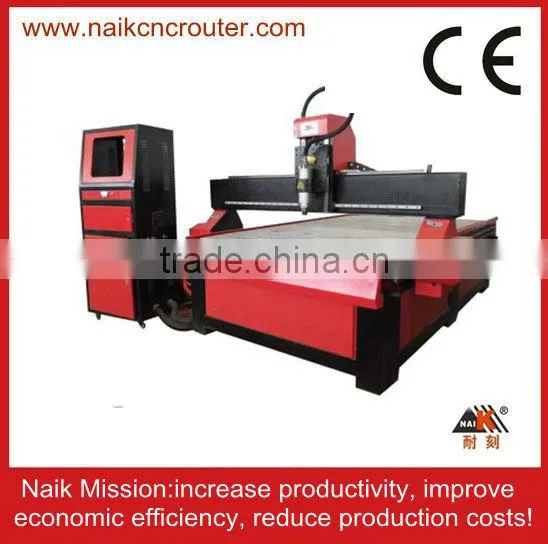

Hot sale cheap cnc router machine / desktop cnc routers 1325 machine with high quality
Model No. | 4STC-1325HC |
Table Size | 1380mm×2900mm |
Effective Working Area | 1300mm×2500mm |
Z Axis Travelling | 180mm |
Feeding Height | 200mm |
Body Frame/Structure | Strong Steel frame |
Table | Aluminum table |
X,Y Transmission | Germany slanting rack and pinion |
Z Transmission | Taiwan HIWIN 2510 dual-nut ball screw |
Rail Configuration | Taiwan HIWIN 25 Linear square guide rails |
Positioning Accuracy | ±0.15/300mm |
Spindle Rotating Speed | 0-24000rpm |
Spindle power | 3KW(2.2,4.5,6,7.5kw for option) |
Y Axis Drive | Shenzhen Leisai Stepper Motor(Double Motor) |
X,Z Axis Drive | Shenzhen Leisai stepper Motor |
Movement Control | NCSTUDIO control system |
Carving Instruction | G code*,U00*,mmg*,nc |
Resolution | 0.00625/pulse |
Collet | 3.175mm,4mm,6mm,8mm,10mm,12.7mm |
Cooling system | Water pump |
Power | 380V,50HZ±10(Internal Switch Power) |
Movement Pattern | Gantry Moving |
Our advantages:
- CNC router with 1300mm* 2500mm engraving range;
- There are 4 bearings in our water cooling spindle, ensure stability and longer working life;
- High speed Spindle can output sufficient power, not like other company machines, marked 3kw spindle only outputs 2.2kw.
- Whole heavy-duty steel frame ensure the structure stability, low inertia and no distortion;
- HIWIN linear guide with sliding blocks and dual-nut anti-gap ball screw made by Taiwan HIWIN with high accuracy, low noise, and long life;
- Powerful compatibility for most of software such as: type3, Artcam, Proe, Wentai a variety of CAD / CAM;
- Humanized design is convenient to remove and install.;
CNC ENGRAVING MACHINE Application Materials
- Glass and plastic: PVC, EVA, EPS, Foam, Styrofoam etc.
- Stone: Marble, Granite etc.
- Wood: MDF, Solid wood etc.
- Metal: Stainless steel, Aluminum, Copper sheet etc.
Guarantee & After-sales service:
- Guarantee for one year
- 24 hours technical support by email or calling
- User friendly English manual and Video CD for machine using and maintenance
We can customize your CNC router machine according to your specific requirements
1.The working range can be customized as per your requests;
2.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Rotary axis for 3D working: with Or without;

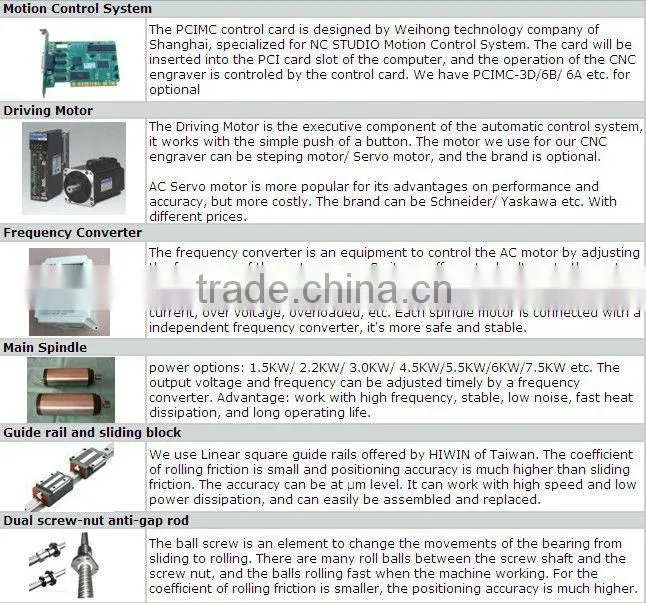

CNC router details with pictures:
All the specifications can be customized as requested!

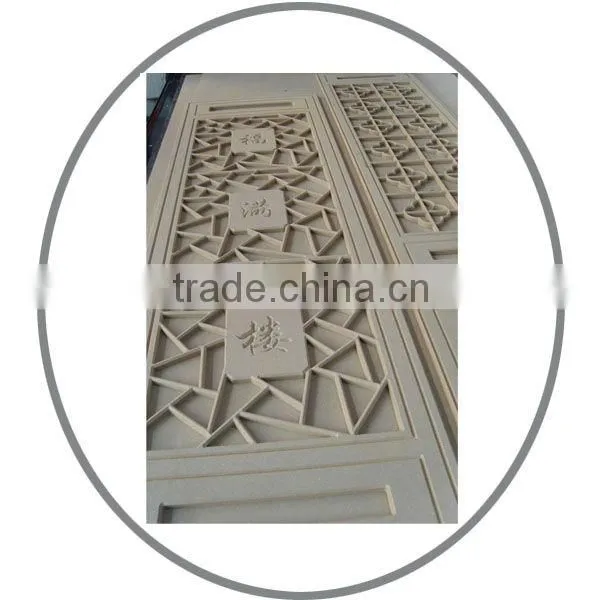

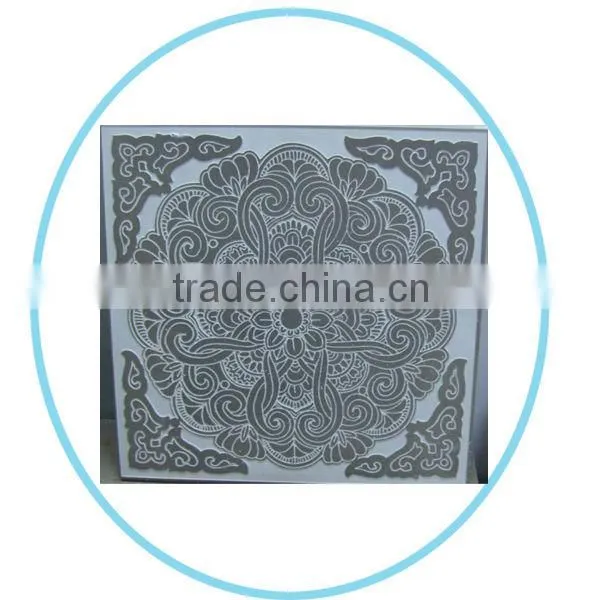

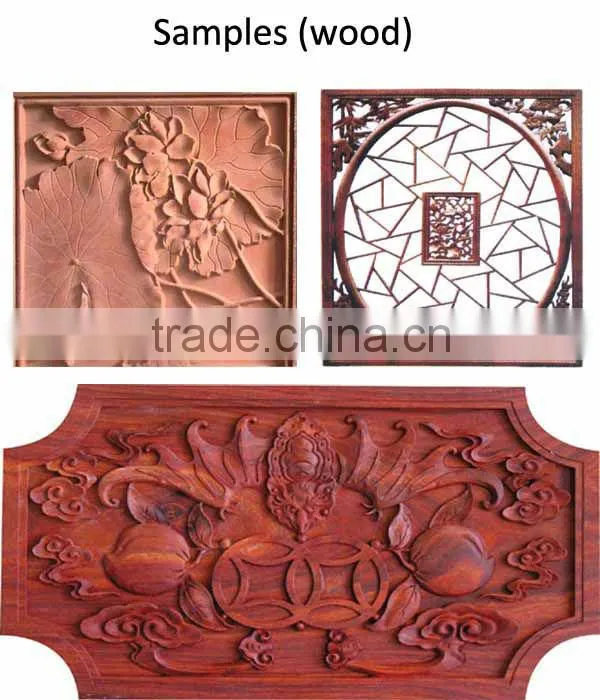

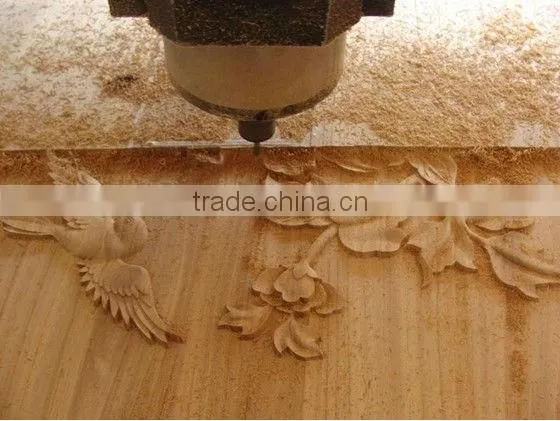

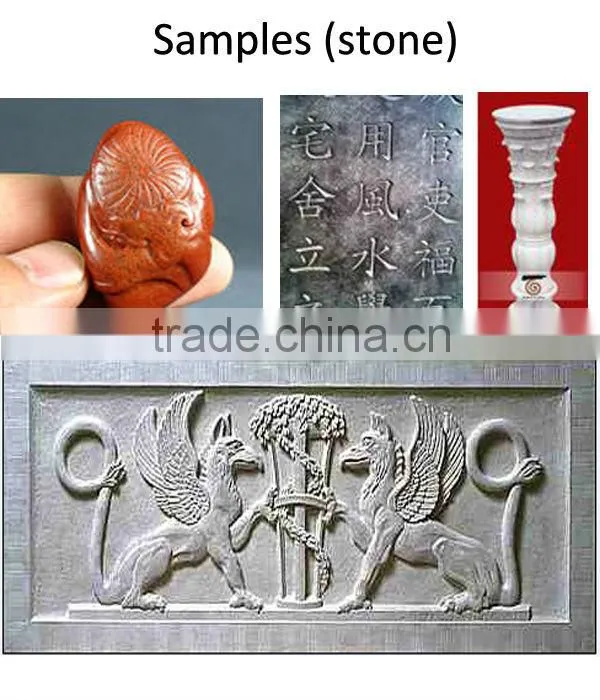

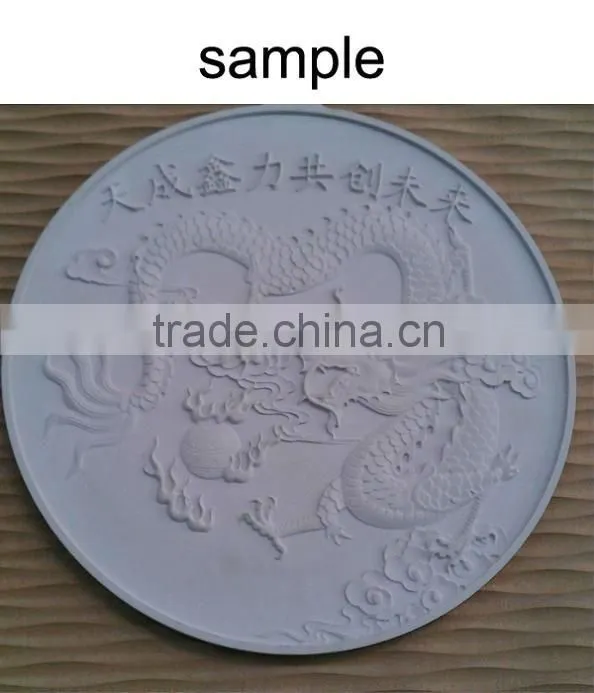

CNC router samples
Company Certificates
Shipping Terms
1. EXW
2. FOB SZ
3. CIF+ Destination port
Payment terms
1.T/T
2.Western Union
3.L/C
Other payment terms, pls mention us.
Packing
We are sincerely searching for distributor worldwide. If you are interested, please contac me. By the way, we will attend the International Expo at Guangzhou from Sep.2-4 Welcome to visit us.
