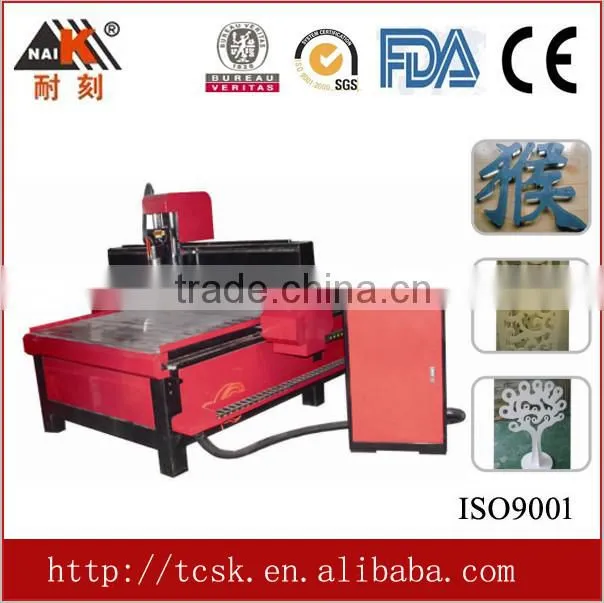

Professional cnc router machine 2STC-1325C
Specifications
1.acrylic cutting cnc router
2.Slanting rack for X,Y axis
3.Ball Screw for Z axis
4.Spindle:3KW
5.high efficiency & speed
Features of cnc router machine
Steel frame, no distortion , no shake While working at high speed, the machined surface is smooth, and the tool is not easy to break; The full-weld and VSR process is used to make sure the structure stable, low inertia and no distortion during high-speed working;

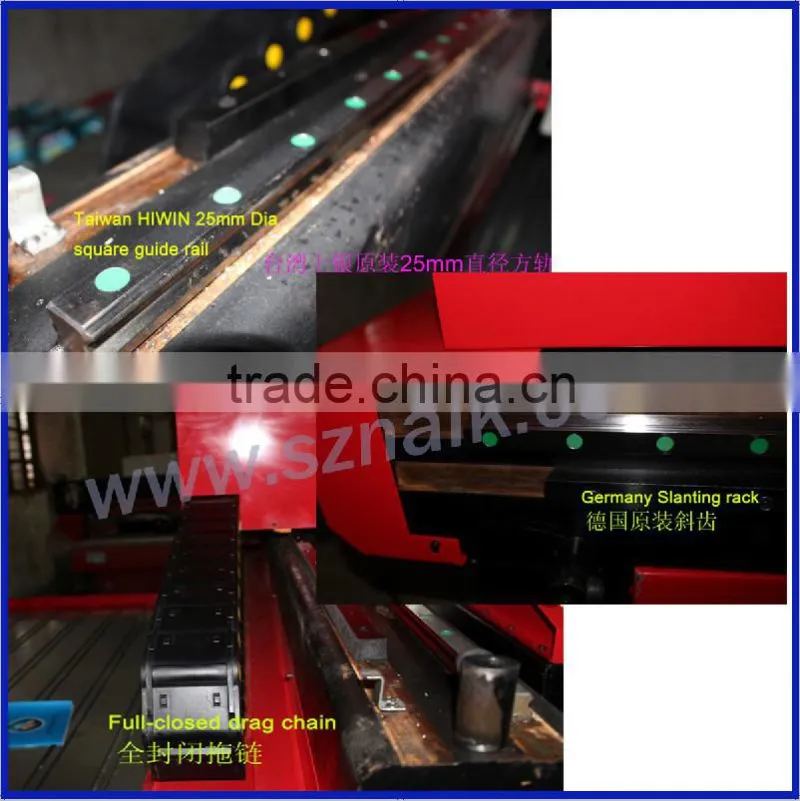

- Assembled with original HIWIN linear square guide rail& dual -nut anti-gap rod ball screw, and Germany made slanting rack, to ensure high accuracy, low noise, and long life;
- Adopt high-speed spindle with constant torque, big bearing.Strong Cutting capacity.
- Original NcStudio OS, NC-control system with friendly Ul, with simple operating software, it's convenient and easy to learn.
specification of cnc router machine
| Machine Model | 2STC-1325C( cnc router machine ) |
| Platform size | 1380x2900mm |
| Working range | 1300x2500mm |
| Z-axis range | 180mm |
| Max Height of material | 200mm |
| Fuselage Structure | 6mm thick heavy-duty tubular steel frame |
| Surface material | Thicken aluminum |
| Adsorption method | T-slot for clamp fixture (Vaccum table for options) |
| X,Y Transmission | Germany Slanting rack |
| Z-axis Transmission | Taiwan HIWIN 16 Ball Screw |
| Rail configuration | HIWIN 20 Square guide rail |
| Spindle speed | 0-24000(r/min) |
| Y-axis dual drive | Stepper Motor LeiSai 86 |
| X,Y axis drive | Stepper Motor LeiSai 86 |
| Control System | NcStudion DSP Control System |
| Code Formats | G code,U00,mmg, nc |
| Idle speed | 0-20000mm/Minute |
| Working speed | 0-15000mm/Minuter |
| Resolution | 0.00625/Minute |
| Positioning accuracy | ±0.15/300mm |
| Spindle power | 3kw(other available) |
| Cooling System | Water cooling |
| Weight | 1100KGS |
| Power | 380V50HZ/60HZ(Internal Power) |
| Electric Box | Electric Box |
| Mode of motion | Grantry moving |

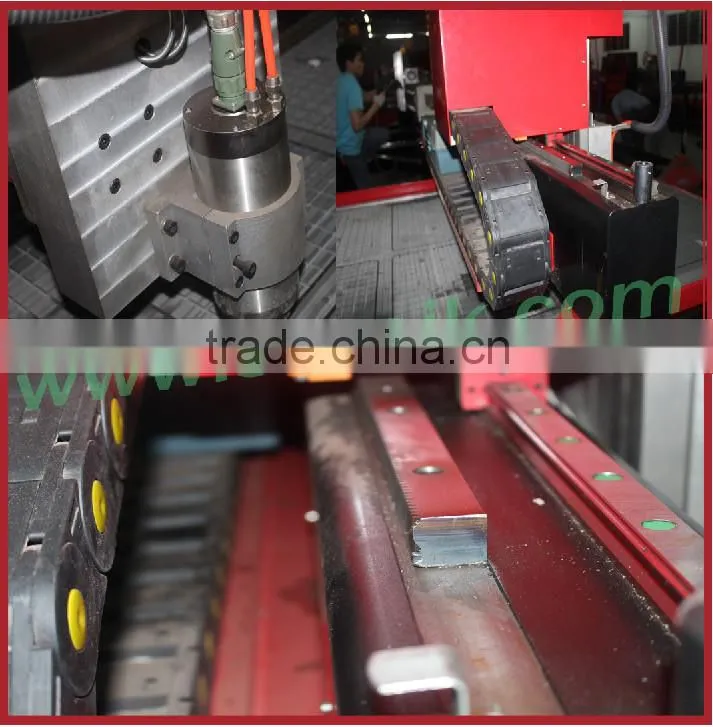

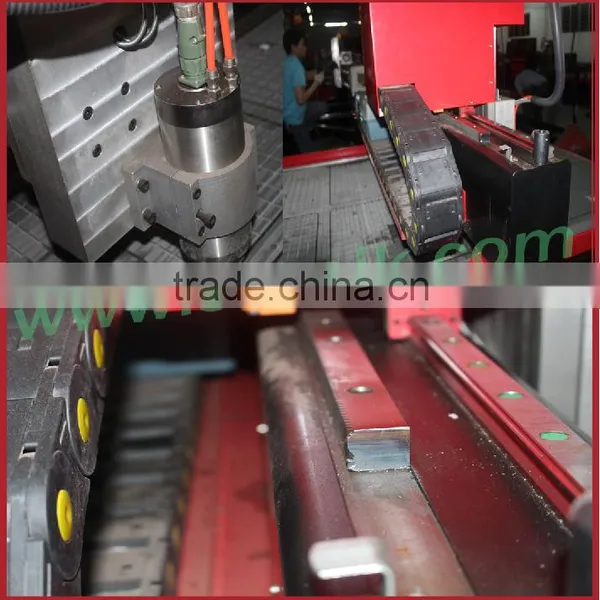

Photos Show of cnc router machine

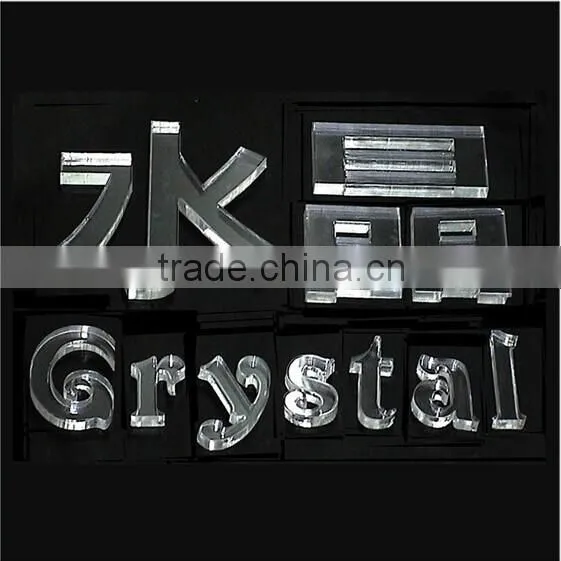

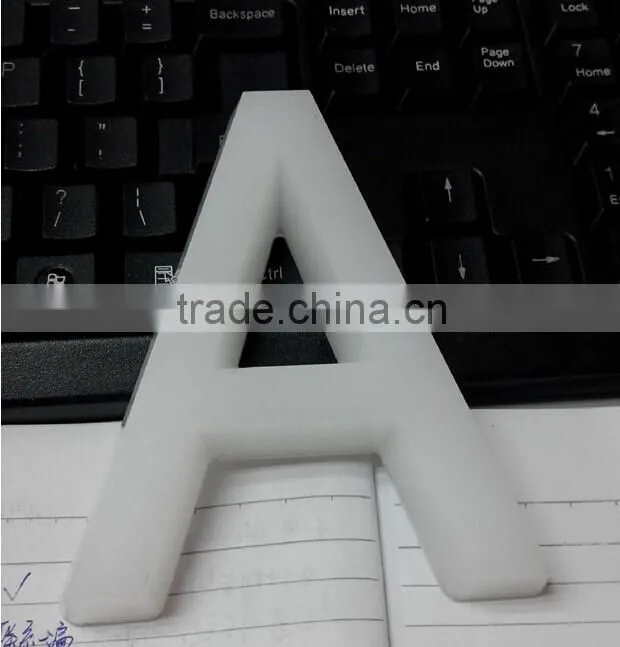

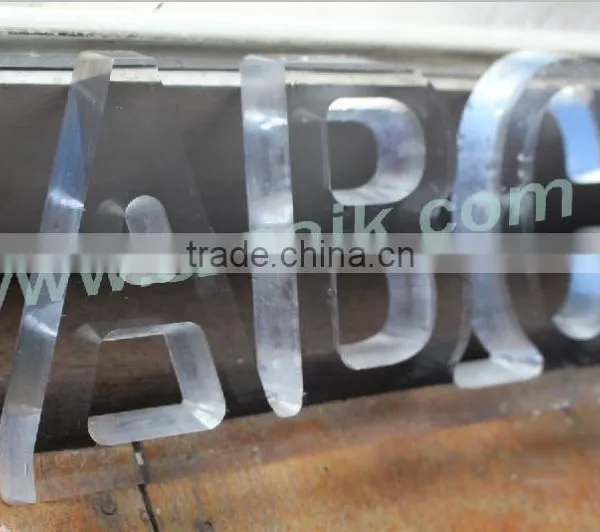

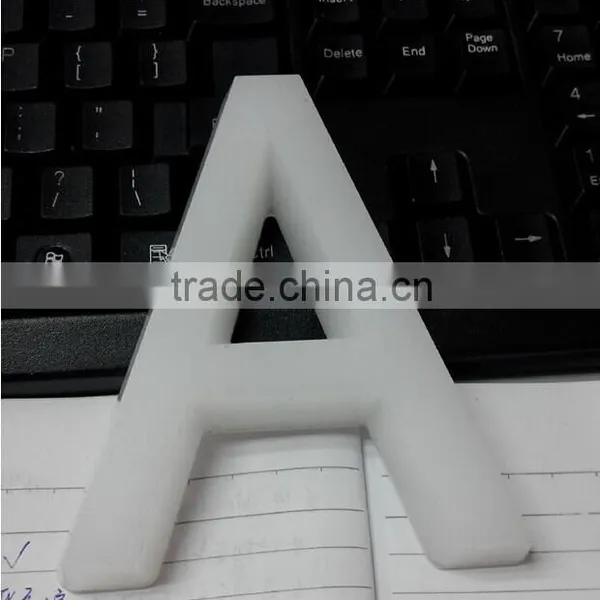

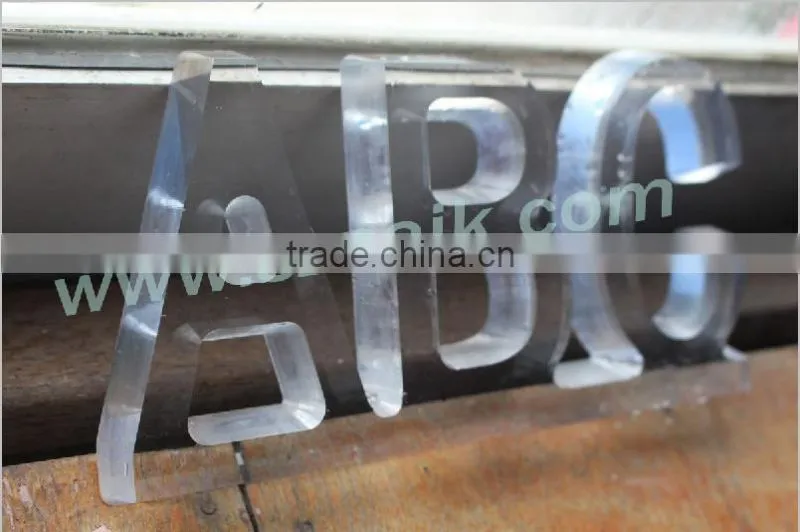

Samples of cnc router machine

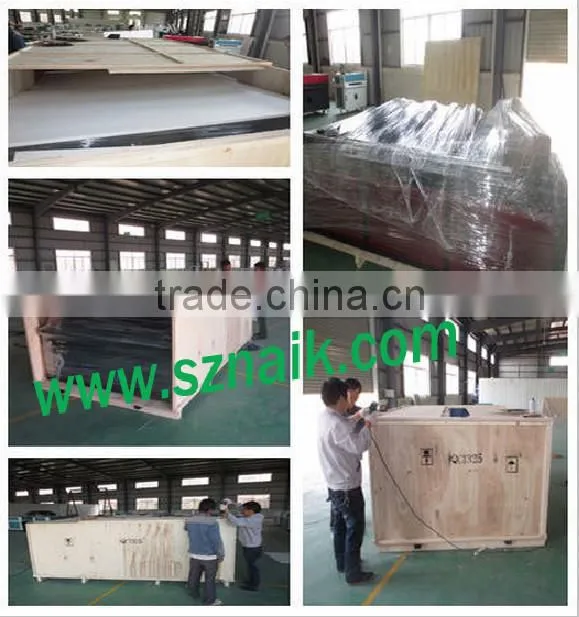

Packing of cnc router machine
|
Wooden Box With Accessories inside |
1),Electric Box(1pc) or computer control cabinet | |
| (1),Tool box(1 set): | a,NCStudio Control card(1pc); b,Data cable(1pc); c,Disc(1pc); d,Power cable(1pc); e, Knife Tool(1set); f,Upper blade wrench(1 set); g,T-clip(1 set); h,Allen wrench(1 set); I,toolholder; j,Random Software Data sheet(1pc); k,Pump(2pcs); l,packing list(1pc) |
|
| Qty/Ctn | 1Set/ctn | |
| Cartoon Size | Based on the products | |

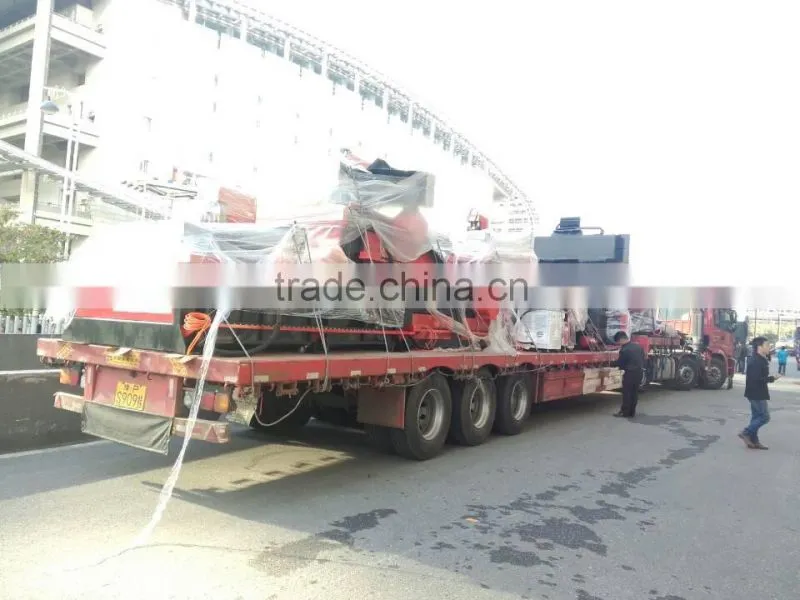

Shipping of cnc router machine
1,EXW
2,FOB SZ
3,CIF+Destination port
4,If you need us to book shipping cargo or not and etc,pls notice us,we are more pleased to do so.
Why choose us ?
1.One year equipment wanranty and maantenance for lifetime.
2.Free installation and best before shipping and free trianing for operators.
3.Advice for the solutions best fr customers requirements.
4.Free trianing and sample provided.
5.Meet CE,FDA,ISO9001 standards
After-sales service
1.24 hours technical surport by phone,email and other contact way.
2.Friendly English version manual and operation video CD diso.
3.365days guarantee.
4.If you meet any problem, can contact us at any time by email or Skype. We will
help you solve the problem as soon as possible. And if we can't solve it by interenet,
we will send the engineer to your place.
Company Profile
Shenzhen Tiancheng Xin Li CNC Equipment Co., Ltd. is a professional factory
which is specialized in developing and producing Naik brand of CNC engraving machines.
We have 14 years production experience in the cnc router industrial . We have devoted ourselves into research and development of carving CAD/CAM CNC
technology since our factory was built. At the same time, we have got great progress
in the aspect of precise engraving machine designing theory and technical skills, and have
realized industrialization of the computerized numerical control technology.
Company Photo Show
Payment terms of woodworking cnc router
1,T/T 30%T/T in advance against the order confirmed and pay the balance 70% against goods ready.
2,Western Union Total amount should be below than 5000 USD,and the bank handling fee
should be responsible for you.
Look for agents all over the world!!!
(If you are interested in it, pls contact with me in time.) cnc router machine cnc router
We are now sincerely seeking for Global Exclusive Agent/Distributor, please feel free to contact me if you have any enquiries or questions. Thanks.
