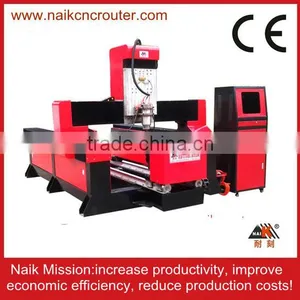

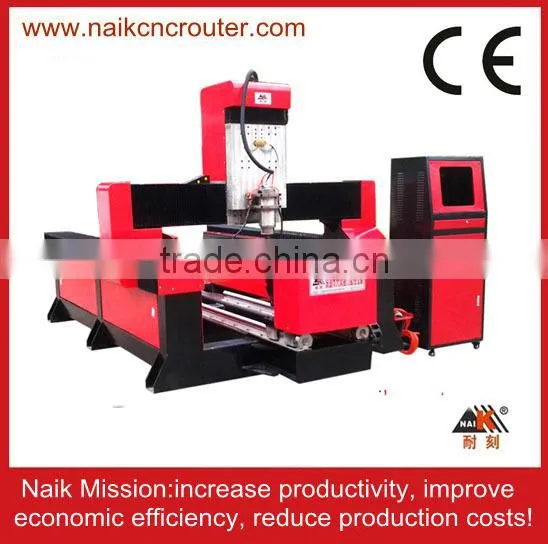

HIWIN guide rail and ball screw stable structure stone cnc router engraver
Product specifications:
| Specifications option of the machine | ||||||
| Model No | 9STC-1325XZ | |||||
| Platform Size (mm) | 1600*3100MM | |||||
| Engraving range (mm) | 1300*2500MM | |||||
| Z axis traveling height(mm) | 550mm | |||||
| Max feeding height | 750mm | |||||
| Structure options | 8mm thick heavy-duty tubular steel frame | |||||
| Z-axis clevis | U-shaped cast aluminum,machined by CNC center | |||||
| Sidewall of Y axis | Cast Iron machined by CNC center | |||||
| Fuselage | 8mm Steel machined by CNC center | |||||
| Sheet metal for X axis Drag Chain | Cast Aluminum machined by CNC center | |||||
| The Beam | 8mm Steel machined by CNC center | |||||
| Frame | 6mm Steel machined by CNC center | |||||
| Sheet metal | 2mm baking | |||||
| Table materials | 23mm thickened alminium alloy | |||||
| Thickness of the side wall | 25mm,iron casting cnc machining | |||||
| X Y Transmission | Germany Slanting rack | |||||
| Z Transmission | Taiwan HIWIN25 Ball Screw | |||||
| Rail configuration | Taiwan HIWIN 25 square guide rail | |||||
| Positioning accuracy | ±0.1/300 mm | |||||
| Spindle speed | 0-24000 RPM | |||||
| Y Axis dual Drive motor | Shenzhen leadshine stepper110 | |||||
| X Z Axis Drive motor | Shenzhen leadshine stepper110 | |||||
| Control system option | NcStudio Controlling System 53B | |||||
| Code formats | G code, U00, mmg, nc | |||||
| Idle speed | 0-20000 mm/ min | |||||
| working speed | 0-15000 mm/ min | |||||
| Resolution | 0.0.0625/ pluse | |||||
| Diameter of cutting tools (mm) | 3.175/ 4.0/ 6.0/ 8.0/ 10.0/ 12.7mm optional | |||||
| Spindle power (KW) | 4.5KW water cooling | |||||
| cooling System | Water Cooling | |||||
| Working Voltage | 110/220/380V50Hz ±10 (Internal power) | |||||
| Movement pattern | Gantry moving | |||||
| Electric Box | intergrated computer control cabinet | |||||
| Gross weight (KG) | 4000KG | |||||
| Remarks: We can freely clear customs for you . | ||||||
| Price term & Warranty | ||||||
| MOQ: 1 Set | ||||||
| Price term: EXW/ FOB Shenzhen (optional) | ||||||
| Payment term: 30% advanced by T/T, the balanced before shipping | ||||||
| Validity of quote is within 15 days. | ||||||
| Delivery time: In 10-15 days | ||||||
| Warranty: 1 year. With A full range of technical support | ||||||
All the specifications can be customized as requested!
Optional parts:
1.The working range can be customized as per your requests;
2.The sturcture: can be Heavy-duty Tubular steel frame Or Lighter steel frame;
3.The table: can be T-slot Aluminum table Or Vacuum table for Maximun Fixturing Flexibility;
4. Spindle: the power of spindle can be 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW/5.5KW/ 7.5KW/ 9KW, etc;
5. Drive Motor: can be Stepper Motor Or Servo Motor;
6. ATC(Automatic Tool Changing): Can be with Or without, Linear Or Hat shaped;
7. Control system: NcStudio with DSP Or computer cabinet;
8. Water cooling pipe: with Or without;
9. Rotary axis for 3D working: with Or without;
Remark: The cost will be different with different configurations.
Product details with pictures:
Motion Control System | |||
|
The PCIMC control card is designed by Weihong technology company of Shanghai, specialized for NC STUDIO Motion Control System. The card will be inserted into the PCI card slot of the computer, and the operation of the CNC engraver is controled by the control card. We have PCIMC-3D/6B/ 6A , optional | ||
| Driving Motor | |||
|
The Driving Motor is the executive component of the automatic control system, it works with the simple push of a button. The motor we use for our CNC engraver can be steping motor/ Servo motor, and the brand is optional. |
||
| Frequency Converter | |||
|
The frequency converter is an equipment to control the AC motor by adjusting the frequency of the motor power. So it can offer actual voltage to the motor as per the practical need of motor, to make sure of energy conservation and speed regulation. Besides, the converter can protect the motor from over current, over voltage, overloaded, etc. Each spindle motor is connected with a independent frequency converter, it's more safe and timeproof. | ||
| Main Spindle | |||
|
There are two kinds of spindle: Water cooling and Air cooling spindles. And with different power options: 1.5KW/ 2.2KW/ 3.0KW/ 4.5KW, etc. With AC220V voltage, and speed can be 0-24000(R/Min). The output voltage and frequency can be adjusted timely by a frequency converter. Advantage: work with high frequency, stable, low noise, fast heat dissipation, and long operating life. |
||
| Guide rail and sliding block | |||
|
|
We use Linear square guide rails offered by HIWIN of Taiwan. The coefficient of rolling friction |
||
| Dual screw-nut anti-gap rod | |||
|
|
The ball screw is an element to change the movements of the bearing from sliding to rolling. There are many roll balls between the screw shaft and the screw nut, and the balls rolling fast when the machine working. For the coefficient of rolling friction is smaller, the positioning accuracy is much higher. The accuracy of ball screw is higher than linear guide rail, and we have different brands optional. | ||
We are professional manufacturer of all kinds of CNC engraving machines, suitable for various of materials, such as: wood, stone, jade, acrylic, metal, ceramics, etc.
And we offer all kinds of CNC parts.
To know more about our products, please feel free to contact me !
