human face mould making china 3d scanner price with CE approved
Original sensor, dual cameras 1.3 million camera
American brand light source raster
Fully automatic stitching-aligned
High speed,high precision,portable to hand-hold
Products Parameter
Model No |
3D Scanner Parameter for CNC Router |
|||
Single Scanning Area |
300X200 |
150*100 |
75*50 |
40*30 |
Single Measurement Precision |
0.015~0.025 |
0.01~0.015 |
||
dot pitch |
0.20 |
0.10 |
0.06 |
0.03 |
Scanning Objet Size |
400mm~1500 mm |
100 mm~400 mm |
|
<50MM |
Scanning Mode |
White light Non-contact |
|||
Data Splicing Method |
By English software |
|||
Camara Soothing Sensor |
1.3 million pixels×2 |
|||
Industrial Lens |
3 million pixels×2 |
|||
|
Raster System
|
American brand DLP Digital raster |
|||
Raster light source |
LED cold light source,lifespan:35000hours |
|||
Output File Format |
ASC;PLY;STL;OBJ;IGES |
|||
Scanning time |
< 5S |
|||
Operating System |
Windows98/NT/2000/XP/Vista |
|||
Main features
1. Compact ,portable and lightweight, can be easily hand-held use.
2. Single scan time of less than 5 seconds
3. High-precision, high density, high-speed, full-color scan to ensure high-quality scan data.
4. White light-based scanning, on human healthy and eyes safety absolutely.
6. Use calibration accuracy without on-site, openning the box you can start to use it.
Optical path adopt solidification structure of rigid, avoid movment, scanner structure instability or vulnerability.
7. Using high-brightness white LED cold light source, light source life of 3500hours.
Applications
Can scan flat panel, 3D objects, relief , round or cube objects.
Widely used in automobile, motorcycle,mold making, precision machinery, footwear, household appliances, cultural imitation, costume design, heavy industry, light industry and other manufacturing industries, greatly enhance the industry productivity.

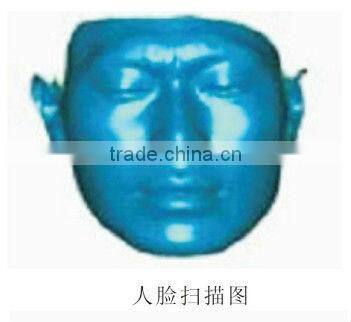

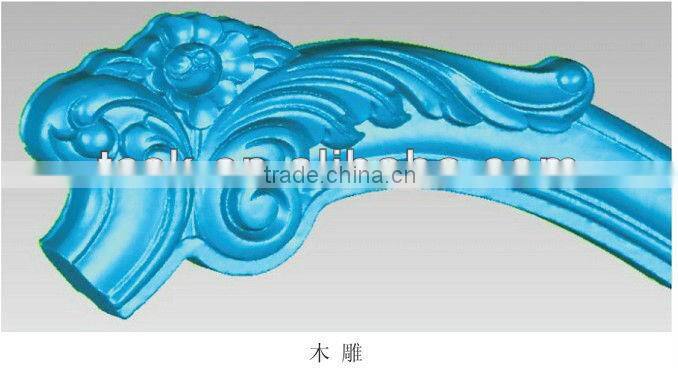

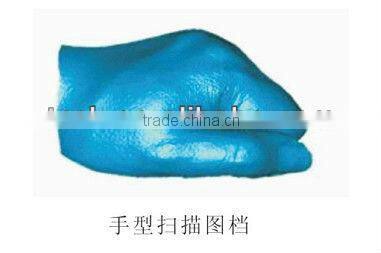

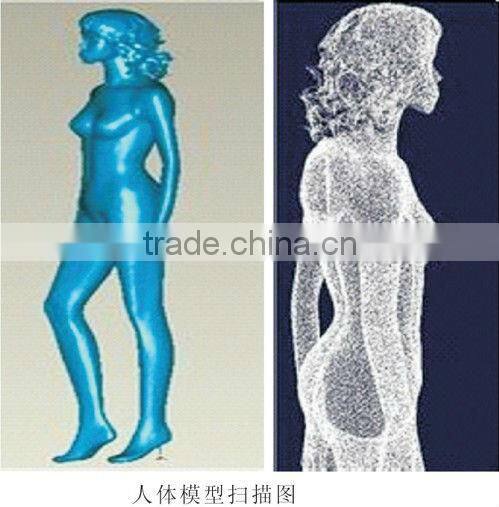

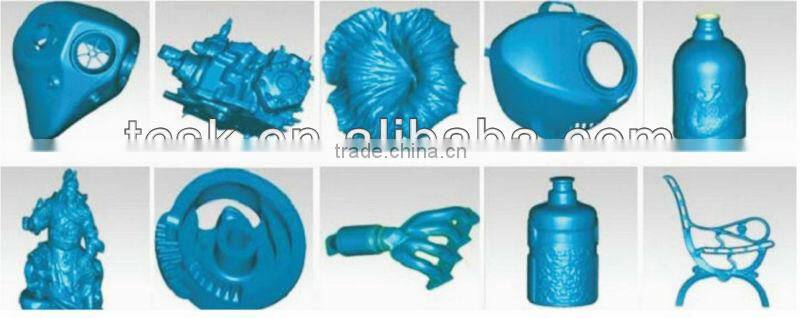

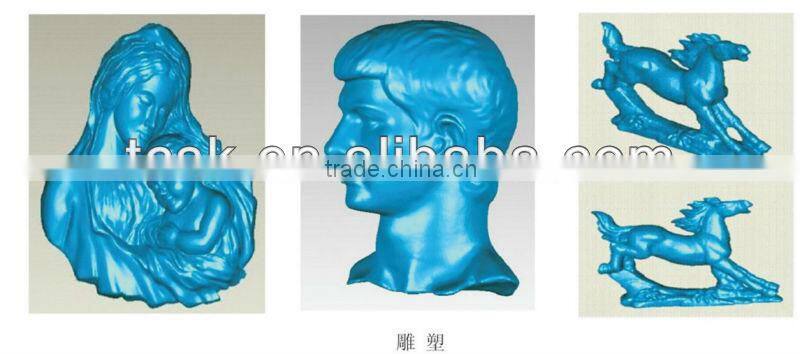

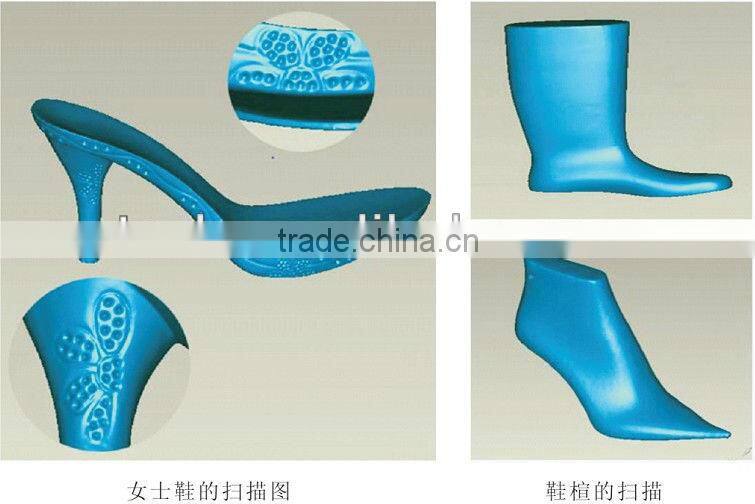

Samples showing
Warmth Warning
Before you start scanning, you should disable some computer settings and close some programs that may affect your scanning process.
1) Cancel screen saving and power saving functions.
2) Close anti-virus and all running programs.
3) Don’t use other programs during scanning process
4) Especially don’t open the current scanning data file.
Photo of Factory
