grain maize crusher and mixer
- 2000 Set / Sets per Month
- Qingdao Ningbo Tianjin Shanghai all the sea port in China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | JIEWEI |
| Model Number: | JW3-1000A | Type: | Other, crusher amd mixer | Voltage: | 380v,50Hz,3Phase |
| Power(W): | 9.7kw | Dimension(L*W*H): | 1750*1000*2300mm, 7CBM | Weight: | 450 kg |
| Certification: | ISO/CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality new design in stock crusher amd mixer
Contact details:
MS. Grace
Mobile: 0086-13526659141
Skype: gracemachine
Whatsapp:008613526659141
QQ:1215410583
The introduce of crusher amd mixer
This machine is mainly used for crushing and mixing all kinds of dry animal feed.
It can crush corn,wheat and other grains,etc. Screw conveyor and mixer are
concentrated in one. So it occupy a small place and easy to install and carry.
And the crusher can absorb the raw material itself.
The parameter of crusher amd mixer
Model | Crush Motor (kw) | Mix Motor (kw) | Capacity (kg/batch) | volume(m³) | Out size(mm) |
JW-500A | 7.5-11
| 3
| 500-650 | 4 | 2000*1050*2500 |
JW-750A | 7.5 | 3 | 750 | 4.5 | 2150*1160*2600 |
JW-1000A | 7.5-11 | 3-4 | 800-1200 | 5 |
2400*1300*2900
|
JW-1500A | 15 | 4 | 1500 | 5.5 | 2500*1400*3000 |
JWA-2000 | 15 | 4 | 2000 | 6 | 2700*1700*3060 |
Two tpye exist, one for mixing only,other for crushing and mixing.
Product structure and working principle of crusher amd mixer
This series crusher cabinet welded using high quality materials, feeding port, and grinder top in
various forms of feeding structure suitable, hammer for symmetry.
Crusher work, material entered into the crushing chamber, in high speed rotating hammer blow and sieve under friction material gradually, has been shattered and goes through the bottom mouth under the action of centrifugal and airflow.
High efficiency and good performance. Applicable to feed, medicine, chemical industry, etc.
Main Features of crusher amd mixer
Vertical Animal feed processing machine is used for crushing the grains and then mixing the powders for animal feed. It is widely used by the feed processing factory and the farm. Raw materials can be all kinds of grains: bean, corn, wheat, and so on.
Vertical animal feed processing machine has the character of simple design and compact structure, small one-time investment, economical and practical, convenient maintenance;
This machine can produce the diverse feed, including the mixed, concentrated and the premixes feeds for poultry.

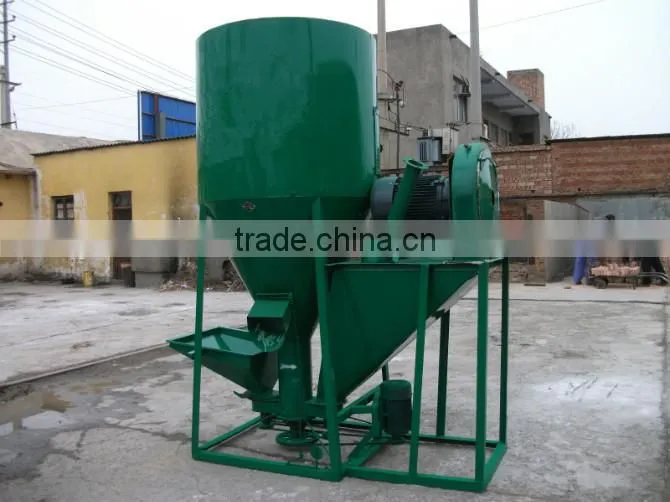

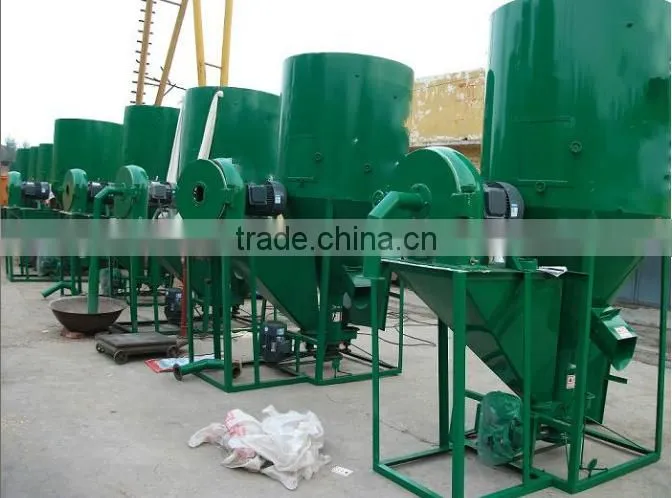

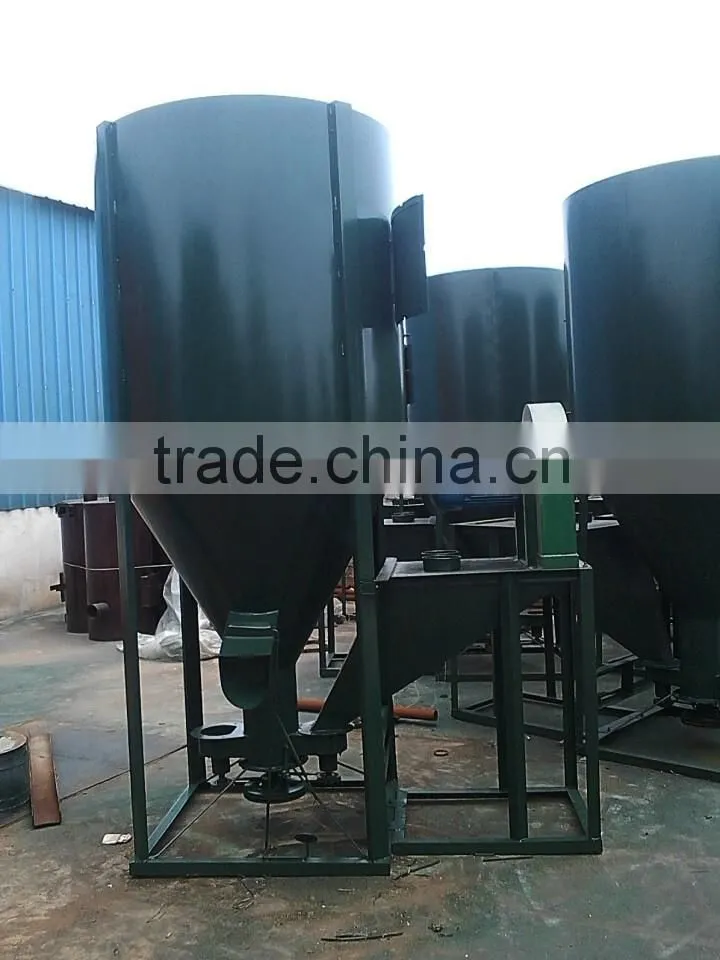

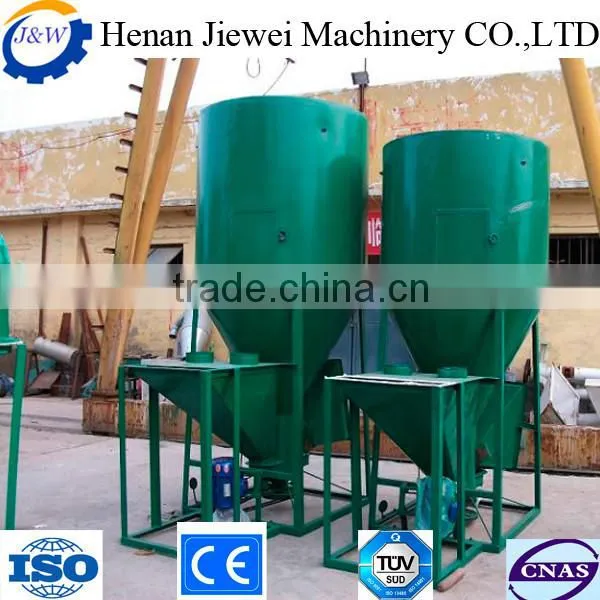

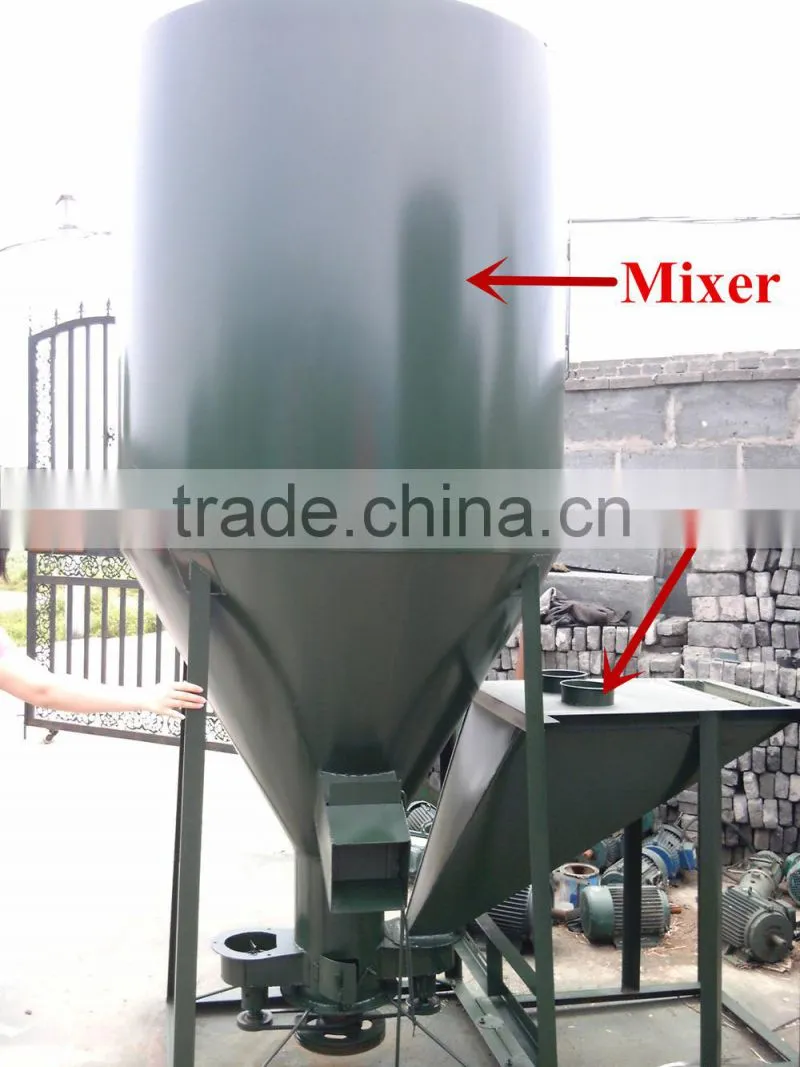

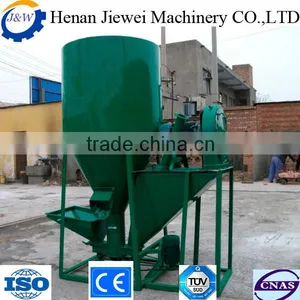

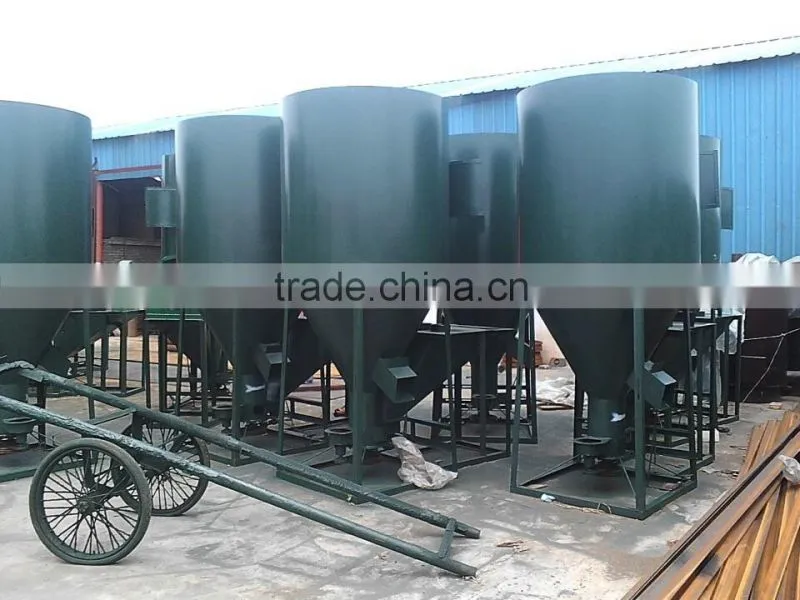

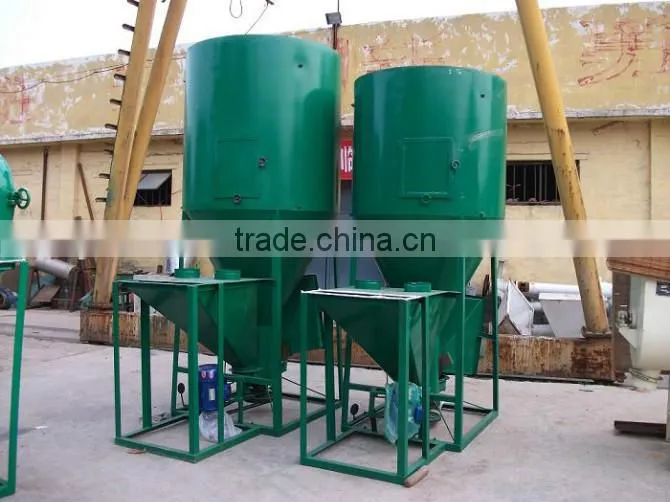

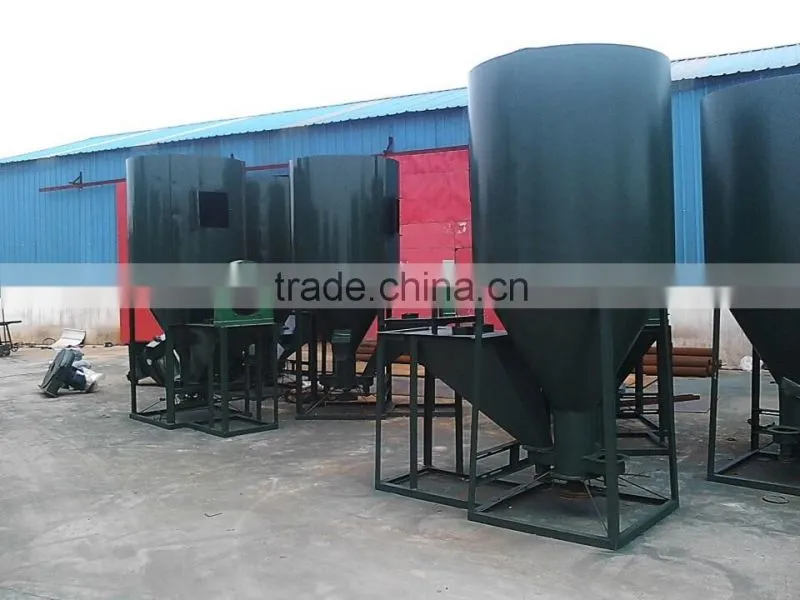

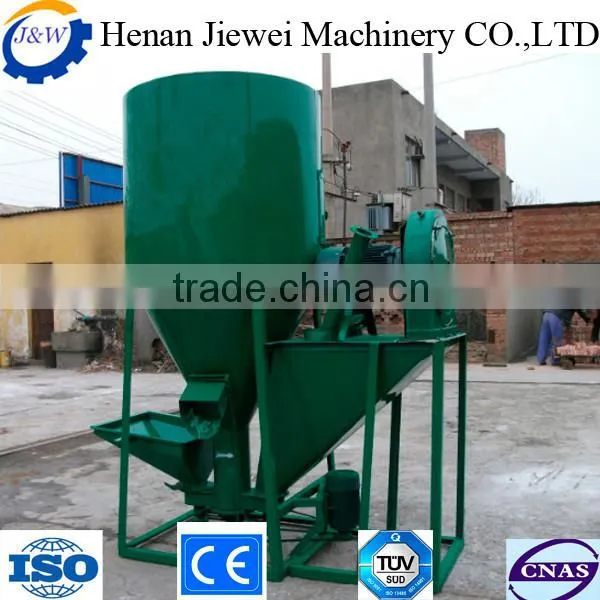

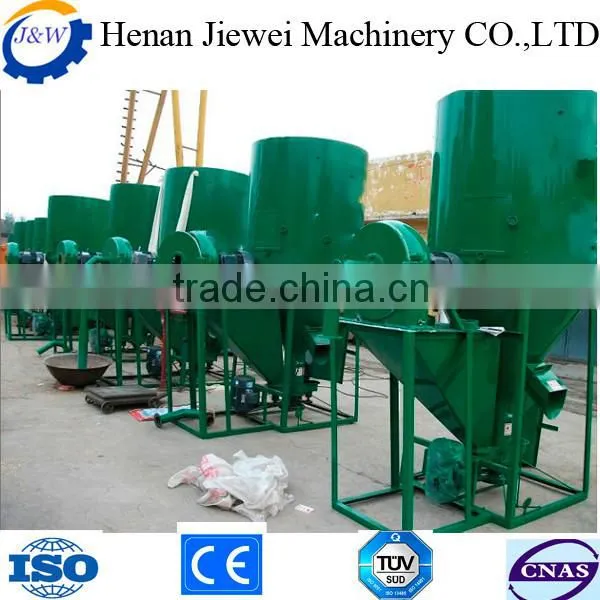

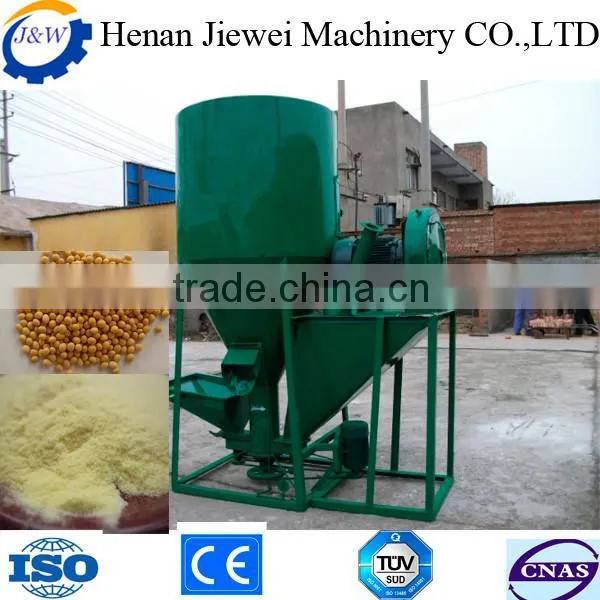

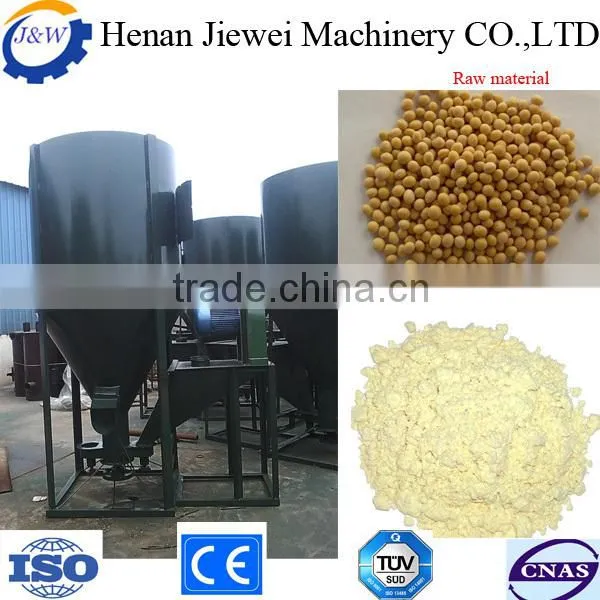

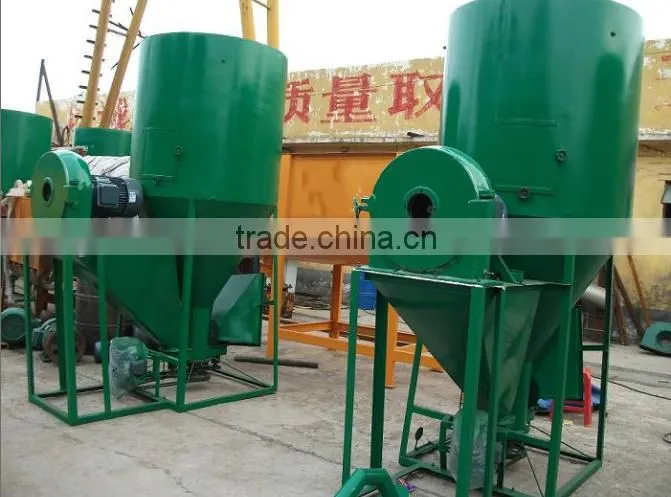

The pictures of crusher amd mixer

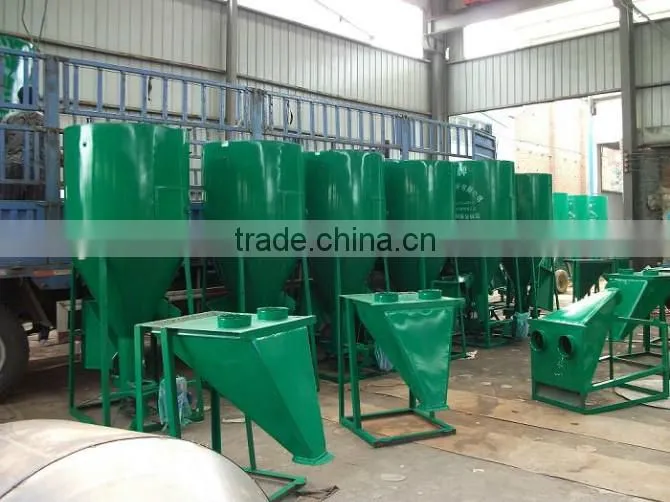

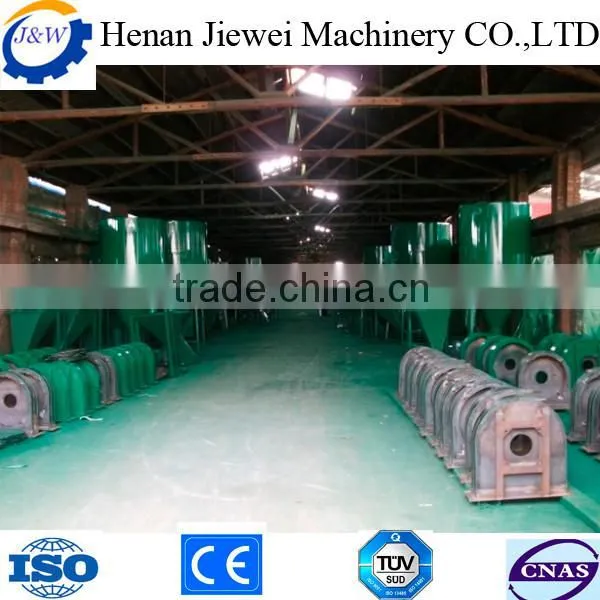

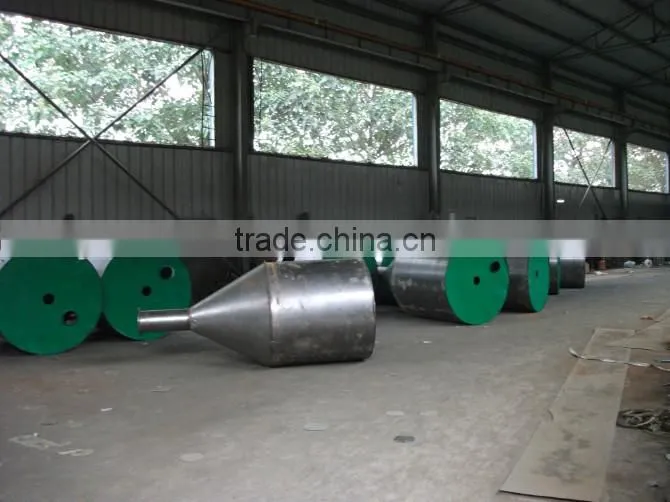

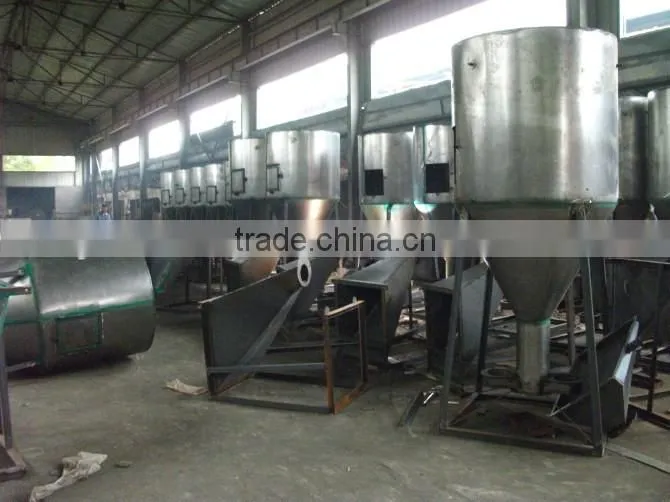

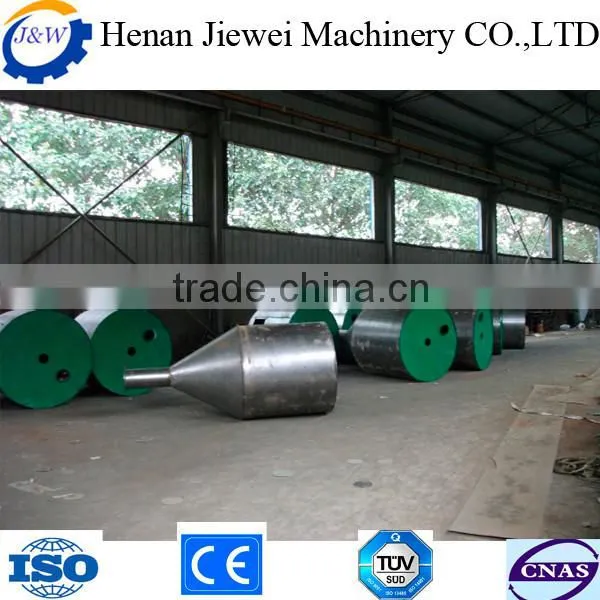

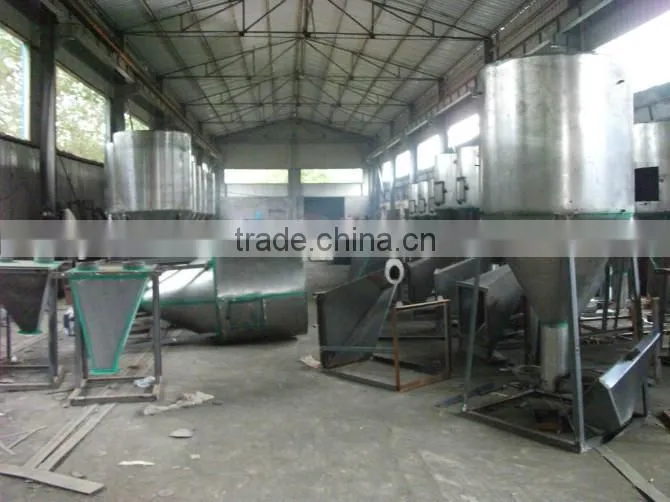

The Manufacturing plant picture of crusher amd mixer

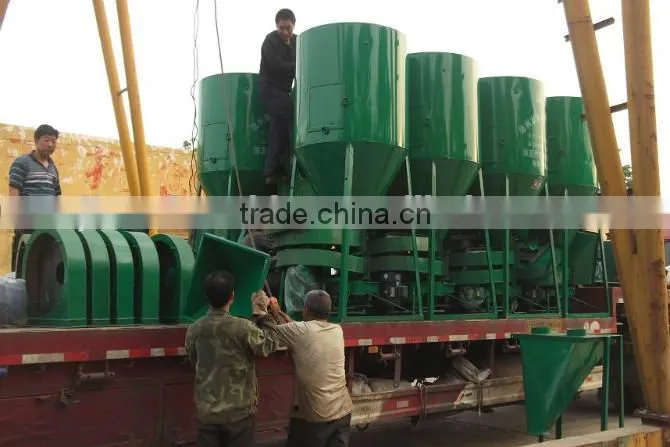

The loading picture of crusher amd mixer
Warranty time: one year for main machine, except for easy weared parts.
1. Please read the machine manual carefully using the product and follow the instruction correctly.
2. The guarantee period for the product: All the spare parts will have 2 month guarantee.
Within guarantee period, if there are any problems caused by quality of manufacture, you can
contact us to deal with your problems with the receipt. After 2-month guarantee period,
we will charge for providing you any spare parts.
3. Training in the factory is provided freely, excluding all the expenses for overseas customers.
4. Excluding for guarantee scope: providing frequently exchanged components, and any accidents,
incorrect use or any product failures caused by face-lifting or repairs caused by the non
-authorized person.
5. If you need any help from us, please send a mail or chat online.
All e-mails will be answered within 12 hours.
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.
2. Q: How can I get to your company?
A: You can get a flight to Zhengzhou Xinzheng International Airport . and we can go
to airport to pick you up directly.All our clients from home or abroad, are warmly welcome
to visit our factory and inspect our products!
3. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives the customer’s side.). After this period
we will definitely support you when needed. You will be welcome to contact us with any problem
may happened.
4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to
do the commissioning and we send one supervising engineer.
if you have any interest, pls kindly tell me your needed capacity.
Then i could recommend you suitable model more efficiency.
Contact details:
MS. Grace
Mobile: 0086-13526659141
Skype: gracemachine
Whatsapp:008613526659141
QQ:1215410583
