Air Cooled Heat Exchanger freezer Condensers for refrigeration condensing units

Specifications

air cooled heat exchager condensers
The FN series Products are air cooled heat exchangers for refrigeration system.

air cooled heat exchanger condensers for refrigeration unit

1. Product description

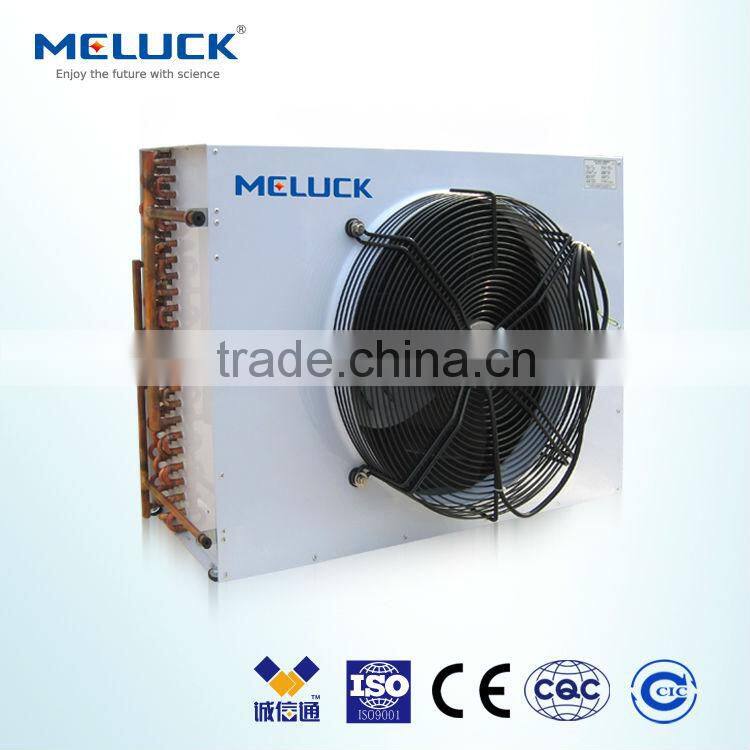

 The FN series Products are air cooled heat exchangers for refrigeration system. They are divided in 4 groups: FN, FNC, FNS and FNV.  The air flow of them all is flowing out by side except FNV, which is top blowing. All the products have been tested on 2.8MPa air leakage, and the system is disposed of pollution, applicable to R22R134aR404AR407C systems.









Model	capacity	Area m2	fan				Overall size(mm)	Installation size (mm)
			Input (w)	Dia. (mm)	Air flow (m3/h)	voltage (v)	A×B×C	D	E
FN-2	0.6	2	1×35	200	410	220	320×100×230	270	65
FN-3.4	1.0	3.4	1×35	200	410	220	320×100×230	270	65
FN-4.4	1.3	4.4	1×60	250	750	220	370×100×280	325	65
FN-5.4	1.6	5.4	1×75	300	1350	220	440×100×330	392	65
