Product Details
Place of Origin: | Shanghai, China | Brand Name: | Meluck | Model Number: | JZBF |
Product Description
Specifications
JZB series cold room refrigeration condensing unit1, Bitzer compressor
2, with condenser
3, R22 R404A

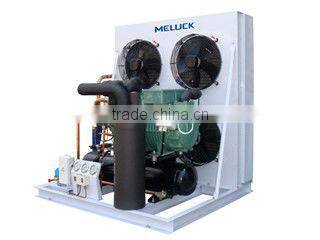

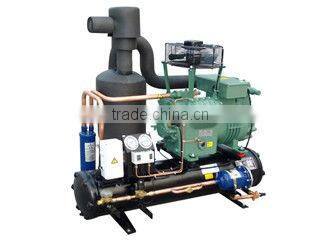

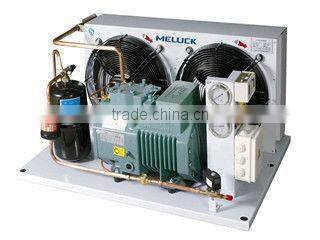

JZB series cold room refrigeration condensing unit )
1. Product description
The JZB series features by their Semi-Hermetic Bitzer compressor, it includes 4 series of product of air cooled and water
cooled, middle and high, middle and low temperature range.
Main components
compressor ,oil heating ,vibration eliminator,oil separator ,condenser,receiver ,filter ,sight glasses ,solenoid valve ,H/L P gauge ,mechnical P controller ,oil protection,gas separator ,suction filter ,cylinder fan
The above components may be different for air cooled and water cooled products.
Air cooled refrigerant R22 units
Model | JZBF02M | JZBF02M | JZBF03M | JZBF03M | JZBF03M | JZBF04M | JZBF05M |
Comp model | 2HC2.2 | 2GC2.2 | 2FC3.2 | 2EC3.2 | 2DC3.2 | 2CC4.2 | 4FC5.2 |
Temperature ( °C) | -5°C ~5 °C | ||||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF06M | JZBF07M | JZBF09M | JZBF10M | JZBF12M | JZBF15M | JZBF20M |
Comp model | 4EC6.2 | 4DC7.2 | 4CC9.2 | 4VCS10.2 | 4TCS12.2 | 4PCS15.2 | 4NCS20.2 |
Temperature ( °C) | -5°C ~5 °C | ||||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF25M | JZBF30M | JZBF35M | JZBF40M | JZBF50M |
Comp model | 4H25.2 | 4G30.2 | 6H35.2 | 6G40.2 | 6F50.2 |
Temperature ( °C) | -5°C ~5 °C | ||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF01L | JZBF02L | JZBF02L | JZBF02L | JZBF03L | JZBF03L | JZBF04L |
Comp model | 2HC1.2 | 2FC2.2 | 2EC2.2 | 2DC2.2 | 2CC3.2 | 4FC3.2 | 4EC4.2 |
Temperature ( °C) | -15°C ~-20 °C | ||||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF05L | JZBF06L | JZBF08L | JZBF10L | JZBF12L | JZBF15L | JZBF20L |
Comp model | 4DC5.2 | 4CC6.2 | 4TCS8.2 | 4PCS10.2 | 4NCS12.2 | 4H15.2 | 4G20.2 |
Temperature ( °C) | -15°C ~-20 °C | ||||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF25L | JZBF30L | JZBF40L |
Comp model | 6H25.2 | 6G30.2 | 6F40.2 |
Temperature ( °C) | -15°C ~-20 °C | ||
Power supply | 380V/3PH/50 HZ |
Model | JZBF02MY | JZBF02MY | JZBF03MY | JZBF03MY | JZBF03MY | JZBF04MY | JZBF05MY |
Comp model | 2HC2.2Y | 2GC2.2Y | 2FC3.2Y | 2EC3.2Y | 2DC3.2Y | 2CC4.2Y | 4FC5.2Y |
Temperature ( °C) | -5°C ~5 °C | ||||||
Power supply | 380V/3PH/50 HZ |
Model | JZBF06MY | JZBF07MY | JZBF09MY | JZBF10MY | JZBF12MY | JZBF15MY | JZBF20MY |
Comp model | 4EC6.2Y | 4DC7.2Y | 4CC9.2Y | 4VCS10.2Y | 4TCS12.2Y | 4PCS15.2Y | 4NCS20.2Y |
Temperature ( °C) | -5°C ~5 °C | ||||||
Power supply | 380V/3PH/50 HZ |
