XJW Series Box Type Refrigeration Condensing Units

XJW Series Box Type Refrigeration Condensing Units thumbnail-1
XJW Series Box Type Refrigeration Condensing Units thumbnail-2

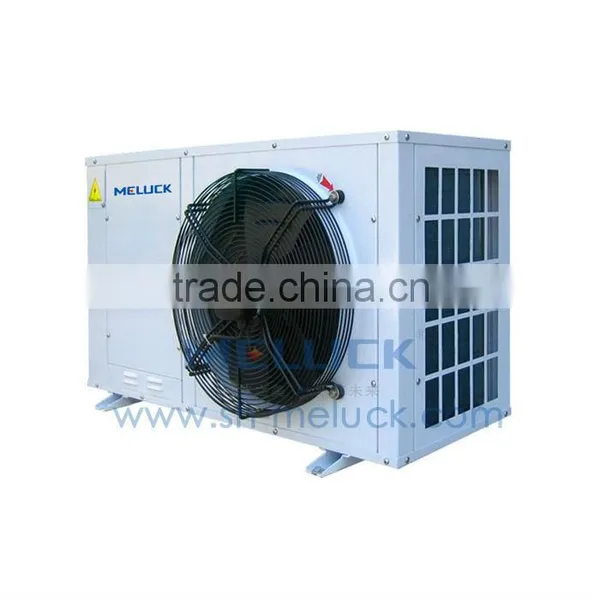

XJW Series Box Type Refrigeration Condensing Units photo-1

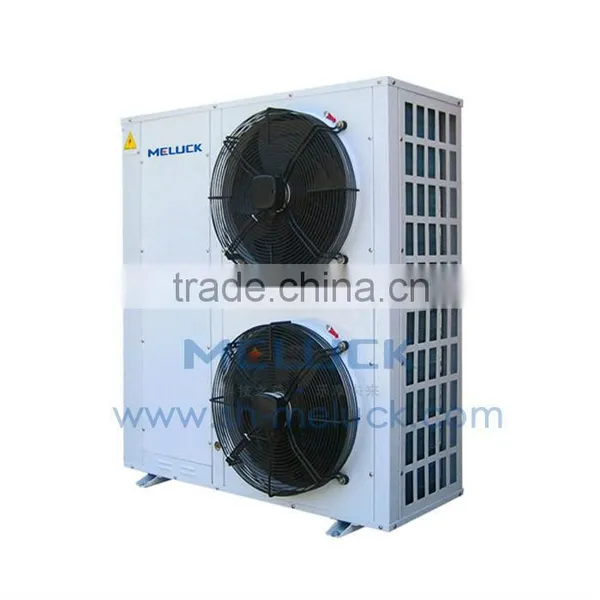

XJW Series Box Type Refrigeration Condensing Units photo-2
US$ 678 - 2,490 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Temperature:
-5~5°C,-15~-20°C
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Meluck Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Temperature -5~5°C,-15~-20°C
Place of Origin Shanghai, China
Brand Name Meluck
Model Number XJW
Voltage 220V,380V,415V
Dimension(L*W*H) 1354x825x1235
Weight 100kg
Certification CE,ISO
Warranty 1 year
After-sales Service Provided Overseas service center available

Fetures of these serie products:



1.World famous refrigerant compressor;

2.Compact box type construction for easy installation

3.High efficient and low noise 6-pole condenser fan motor

4.Condensing fan motor control available for duo fan unis

5.World famous refrigerant components

6.With electric control box, and multi protection functions including phase lack, overload, too constant compressor on/off and high/low pressure.





Parts of model specification

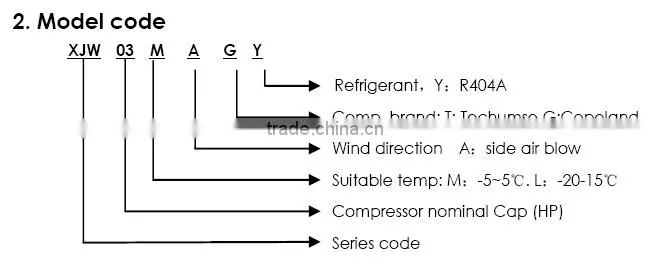

Model

XJW0.6MATY

XJW01MATY

XJW1.7MATY

XJW02MATY

XJW03MATY

Room temperature

-5~5℃

Refrigerant

R404A

Power supply

220V/50HZ

380V/50HZ

Comp

Model

Hermetical

Type

CAJ9480Z

CAJ9510Z

CAJ4519Z

TFH4524Z

TFH4531Z

Max current (A)

6.6

8.0

15.4

6.3

8.2

Con fan

Fan number

1

1

1

1

1

Air flow (m3/h)

1700

1700

1700

3200

3200

Fan power (W)

80

80

80

100

100

Fan voltage

220V/50HZ

Cap & Input

Te

0℃

Cap(W)

1874

2310

4070

4830

6143

Input (W)

820

980

1850

2090

2610

Te

-5℃

Cap(W)

1553

1924

3340

3890

4990

Input (W)

760

910

1720

1920

2385

Te

-10℃

Cap(W)

1266

1572

2700

3050

3970

Input (W)

700

840

1590

1740

2150

Pipe

Gas (inch)

1/2SAE

5/8SAE

5/8SAE

5/8SAE

7/8SAE

Liquid (inch)

3/8SAE

3/8SAE

3/8SAE

3/8SAE

3/8SAE

Size Drawing

NO.1

NO.1

NO.1

NO.2

NO.2



Model

XJW01LATY

XJW1.5LATY

XJW02LATY

XJW03LATY

Room temperature

-15℃ ~-20 ℃

Refrigerant

R404A

Power supply

220V/50HZ

380/50HZ

Comp

Model

Hermetical

Type

CAJ2446Z

CAJ2464Z

TFH2480Z

TFH2511Z

Max current (A)

7.9

10.0

4.8

5.0

Con fan

Fan number

1

1

1

1

Air flow (m3/h)

1700

1700

3200

4600

Fan power (W)

80

80

100

160

Fan voltage

220V/50HZ

Cap & Input

Te

-20℃

Cap(W)

1296

1673

2416

3348

Input (W)

950

1250

1837

2312

Te

-25℃

Cap(W)

1005

1300

1865

2518

Input (W)

837

1100

1585

1960

Te

-30℃

Cap(W)

755

990

1347

1817

Input (W)

723

955

1326

1635

Pipe

Gas (inch)

1/2SAE

5/8SAE

5/8SAE

5/8SAE

Liquid (inch)

3/8SAE

3/8SAE

3/8SAE

3/8SAE

Size Drawing

NO.1

NO.1

NO.2

NO.2



Model

XJW02MAGY

XJW03MAGY

XJW04MAGY

XJW05MAGY

XJW06MAGY

XJW07MAGY

XJW08MAGY

Room temperature

5℃ ~-15 ℃

Refrigerant

R404A

Power supply

380V/50 HZ

Comp

Model

scroll

Type

ZB15KQE

ZB21KQE

ZB29KQE

ZB38KQE

ZB45KQE

ZB48KQE

ZB58KQE

Max current (A)

6.0

8.0

11.0

12.5

16.1

17.0

23.0

Con fan

Fan number

1

1

2

2

2

2

2

Air flow (m3/h)

3200

4600

6400

9200

9200

10580

10580

Fan power (W)

100

160

100×2

160×2

160×2

230×2

230×2

Fan voltage

220V/50HZ

Cap & Input

 Te

0℃

Cap(W)

4760

7000

9480

11950

14000

15300

18600

Input (W)

1720

2480

3300

4150

4700

5170

6400

Te

-5℃

Cap(W)

3820

5740

7800

9830

11500

12550

15300

Input (W)

1760

2500

3300

4200

4730

5210

6360

Te

-10℃

Cap(W)

3080

4680

6360

8000

9380

10200

12400

Input (W)

1820

2510

3330

4200

4750

5230

6320

 Te -15℃

Cap(W)

2430

3780

5130

6480

7580

8180

9840

Input (W)

1880

2510

3330

4210

4760

5240

6320

 Te -20℃

Cap(W)

1870

3020

4100

5170

6050

6500

7520

Input (W)

1930

2520

3340

4210

4770

5240

6360

pipe

Gas (inch)

3/4SAE

3/4SAE

7/8SAE

7/8SAE

7/8SAE

7/8ODF

1-1/8ODF

Liquid (inch)

3/8SAE

3/8SAE

1/2SAE

1/2SAE

1/2SAE

5/8ODF

5/8ODF

Size Drawing

NO.2

NO.2

NO.3

NO.3

NO.3

NO.4

NO.4
