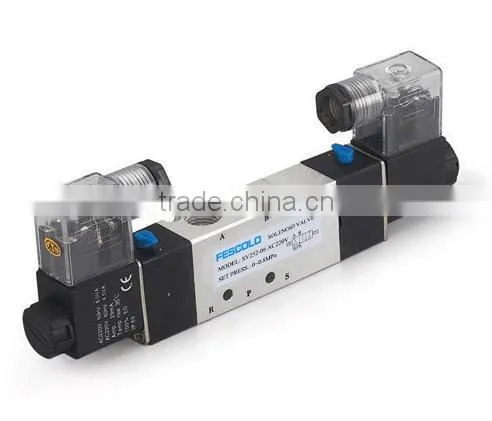

Help Center1/4" Two Position Miniature Solenoid Valve SV22-08
Related Products
-
1/4" Two Position 3 Way Solenoid Valve SV231-08US$ 3.2 - 50MOQ: 20 Pieces -
SV251-08 Electro Valve Pneumatic StyleUS$ 3.2 - 50MOQ: 20 Pieces
-
SV251-08 Medium Presusre Airtac Pneumatic ValveUS$ 3.2 - 50MOQ: 20 Pieces
-
SY Series Solenoid SMC ValveUS$ 5 - 40MOQ: 20 Pieces
-
SV251-08 Two Position Solenoid Valve Five WayUS$ 3.2 - 50MOQ: 20 Pieces
Specifications
1.SV22 miniature solenoid valve2.it is miniature with CE certification
3.Two position 0.5~0.8 Mpa
Power:solenoid,1/4"
1.SV22 miniature solenoid valve
2.it is miniature with CE certification
3.Two position 0.5~0.8 Mpa
Power:solenoid,1/4"
1)Valve Position number: two positions five ways
2) Ambient temperature: -5~50°C
3) solenoid valve working pressure: 0.15-0.8MPa
4) solenoid Voltage: DC 24V/DC12V or AC 24V/110V/220V/380V (50/60/Hz)
Solenoid Shortest excitation time: 0.2 second
SV251-08 valve specification :
Media |
Compressed air |
|
Applicable pressure range |
0.15~0.85Mpa |
|
Proof pressure |
1.2Mpa |
|
Ambient and fluid temperature |
-5~60°C |
|
Valve Material of body |
Aluminum alloy |
|
Standard voltage |
DC12V,DC24V,AC24V,AC110V,AC220V,AC380V |
|
Solenoid Power consumption |
AC220V |
2.0W |
DC12V,AC110V,AC380V |
2.5W |
|
DC24V |
3.0W |
|
AC24V |
3.5W |
|
Allowable voltage range |
-15%~10% |
|
IP rate |
IP65 |
|
Insulation rate |
Class F |
|
Action |
Internally piloted |
|
Min. activate time |
0.05 s |
|
Lubrication |
Needless |
|
