Home > Electrical & Electronics > Switch > Pressure Switch > SN110 Air Compressor Differential Pressure Switch
SN110 Air Compressor Differential Pressure Switch
US$ 3.5 - 7
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
FESCOLO
Model Number:
HFS-25
Max. Current:
2
Payment & Shipping
Payment Methods:
Port of Shipment:
All of China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DN606 Air Compressor Adjustable Pressure SwitchUS$ 3.5 - 7MOQ: 20 Pieces -
SN130 Air Compressor Pressure Control SwitchUS$ 3.5 - 7MOQ: 20 Pieces
-
EPC-5 Automatic Water Pump Pressure SwitchUS$ 3.5 - 7MOQ: 20 Pieces
-
EPC-5 Automatic Pressure Switch WaterUS$ 3.5 - 7MOQ: 20 Pieces
-
KRS-3 Automatic Pressure Switch for Water PumpUS$ 3.5 - 7MOQ: 20 Pieces
Brand Name
FESCOLO
Model Number
HFS-25
Max. Current
2
Max. Voltage
250V
Max. Working Pressure
3.0Mpa
Place of Origin
Zhejiang, China

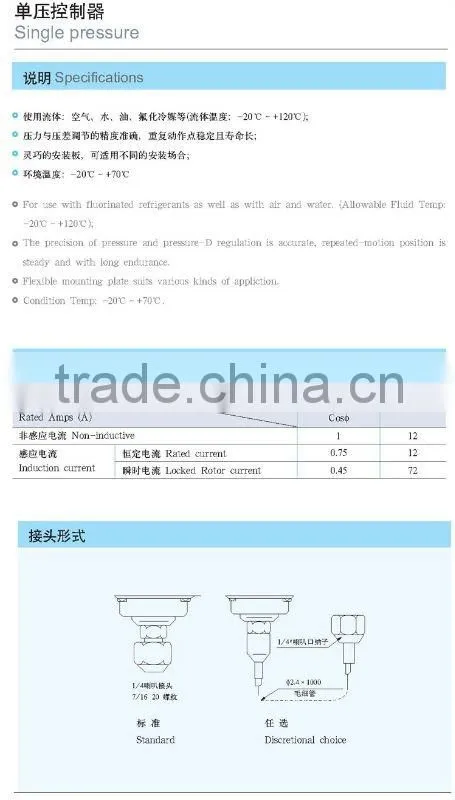

Specifications
1.Air differential pressure switch2.Air Pressure Switch for Air Compressor
3.Max.Pressure 3Mpa
4.Adjustable range

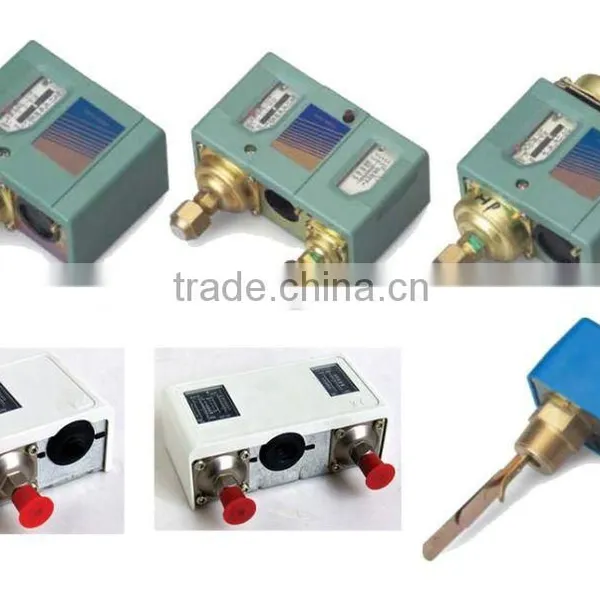

Air compressor differential pressure switch
Pressure control switch
Flow switch
Rated Voltage / Frequency |
230v /50HZ 115v/60Hz |
Rated Current / Power |
12A /2HP 20A/1.5HP |
Pressure Range |
Min. cut-in 20PSI, Max. cut-out 175PSI |
Model Specification
Model Adjustable range
(Bar) Differential
(Bar) Factory setting
(Bar) Max working pressure (Bar)
Min. Max. Min. Max. OFF ON
SNS-103 -0.7 3 0.2 1.5 2 1 16.5
SNS-106-0.7 6 0.6 4 3 2 16.5
SNS-106 M -0.7 6 Reset Differential </=1 3 Manual Reset
16.5
Media Refrigerant, Air, Water, Oil
Media Temperature -10 C to 120 C
Connection M12X1.25, 7/16-20UNF
other connection is available on request
2A
