Help CenterHV2-34 Hand Valve
US$ 2 - 9
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Control
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
All of china port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Control
Pressure
Medium Pressure
Power
Manual
Material
Alloy
Temperature of Media
Medium Temperature
Media
Gas
Port Size
1/4-2inch
Place of Origin
Zhejiang, China
Model Number
HV2-34
Brand Name
FESCOLO
Specifications

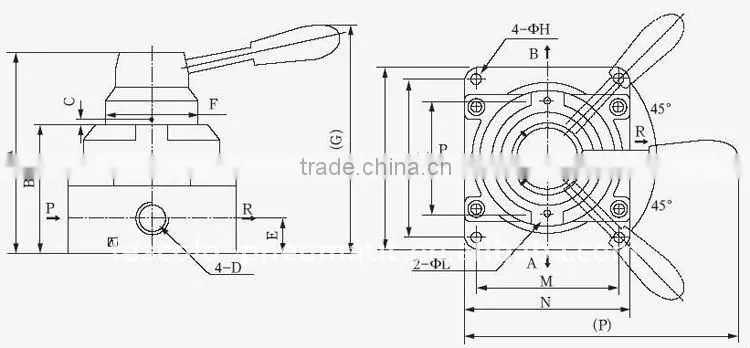

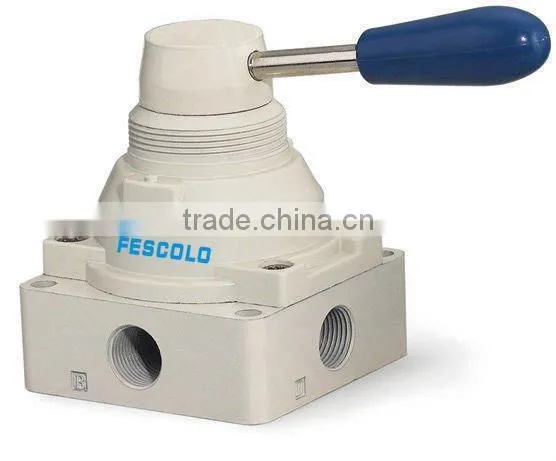

HV2-34 Hand valvePneumatic hydraulic
Medium pressure for air
Hands operate style
4port 3 position ,good price
Hand valve
Have the Pneumatic hydraulic style .
Hands operate style
3positions/4ports

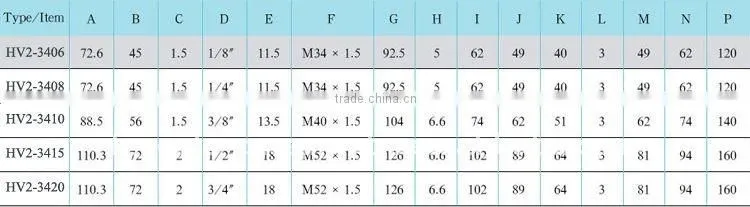

Part Number |
HV2-3406 |
HV2-3408 |
HV2-3410 |
HV2-3415 |
HV2-3420 |
Connector size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
Orifice size |
14mm2 |
16mm2 |
33mm2 |
88mm2 |
95mm2 |
Media |
Air |
||||
Applicable Pressure range |
0~1.0MPa |
||||
Proof pressure |
1.5Mpa |
||||
Applicable Temperature |
-5~60°C |
||||
Material |
Aluminum alloy |
||||
.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2012
Factory Size
3,000-5,000 square meters
Total Employees
51 - 100 People
