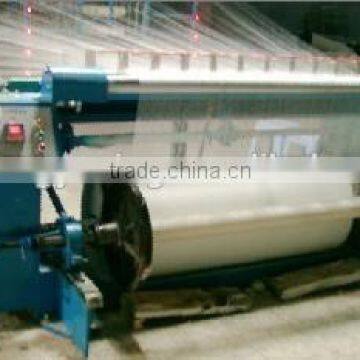

High speed sectional warping machine HYXZ-320 for weaving looms

Specifications

This sectional warping machine is a preparatory machine of weaving lines. It can be used with various kinds of weaving looms.

Main technical parameters

   (1)Working width                     1500-360mm(as your requirement)

   (2)Beam diameter                     φ600mm

   (3)Warping speed                     0~1000m/min

   (4)Winding density deviation     ≤0.002 g/cm3

   (5)Winding density resolution   0.001 g/cm3

   (6)Warping count deviation       ≤0.05%

   (7)Reed traverse speed             0~2.5mm/r(beam)

   (8)Reed traverse scope              0~20mm

   (9)Spindles of creel                    6 layers  576spindles(480spindles)

   (10)Pitch                                    300×300mm (as your requirement)

Main electrical equipment

Display                                    10.4 inch colorful touch screen( Delta)

Invertor                                     Delta VFD-B   15Kw

Loading/doffing beam                  pneumatic

Safety protection:after loading beam, cylinder drive clamp device to lock beam

Photoelectrical protection            infrared photoelectrical device

Counting device                           rotating encoder and PLC

Brake distance                             ≤3m(when speed is 500m/min)

Stop motion                                 infrared stop motion

Creel type                                   pitch and spindle can be required.
