High Speed Automatic Weaving Loom/textile Power Loom/industrial Weaving Looms
- QINGDAO PORT
- Money Gram
You May Like
-
High Quality and Best Selling Air Jet Loom/weaving Machine/weaving Loom
-
High Quality and High Speed Air Jet Loom/weaving Machine/weaving Loom
-
Hot Selling Air Jet Loom/cotton Weaving Loom/cotton Weaving Machine
-
High Speed Air Jet Machine/weaving Machinery/textile Machinery
-
Best Selling High Speed Air Jet Loom/loom/weaving Loom
-
2016 Hot Selling Air Jet Loom/air Jet Weaving Loom/air Jet Weaving Machine
Product Details
| Condition | New | Type | Air Jet Loom | |
| Application | weaving fabric | Production Capacity | 98%-100% | |
| Place of Origin | Shandong, China | Brand Name | HONGYUXING | |
| Model Number | HYXA-230 | Dimension(L*W*H) | 3100*1200*900 | |
| Weight | 1.5-2.5tons | Power(W) | 1.5KW | |
| Certification | ISO9001 CE | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
1. This series of looms due to its high rigid frame structure, suitable for weaving medium and high density, high quality fabric.
2. A let-off, take-up and each detection unit are used in electronic control thus reduce the stop block, the mechanical stop and warp or weft weaving defects such as short rates to improve the quality of production.
3. Frame and beam rigidity is enhanced, the machine has good stability, beating -up mechanism further optimization.

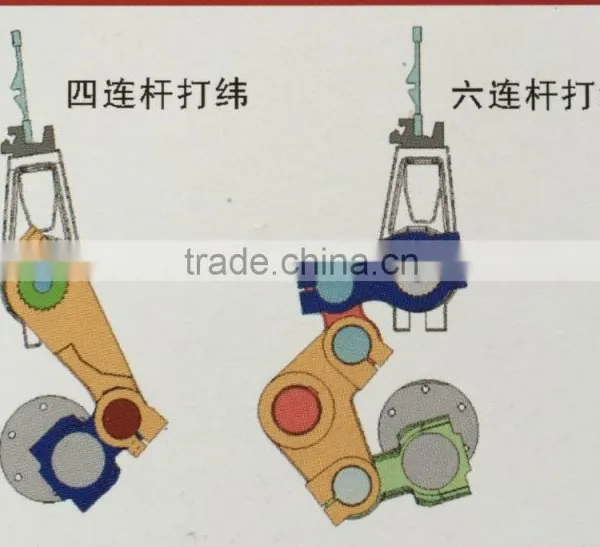

4. Structure more reasonable, can use four or six Linkage Beating-up connecting rod. The six connecting rod beating-up can prolong the time for opening of warp and weft, more suitable for wide loom weaving fabric, broaden the scope of weaving loom.
5.The opening mechanism of this type of crank optional: opening,cam,electronic dobby, jacquard. With electronic let-off and take-up, variable density of weft knitting; warp stop, double weft electronic length measuring, electronic weft storage, selvage yarn breaking detection,edge detection by catching weft yarn, electronic control make the operation more humane.
6. Its structure is reasonable: the further optimization of beam structure change the warp tension sensing more sensitive.
7. After the tension roller bracket is installed in the outside of the frame, which is convenient for installation and repair.
8. Can set all kinds of weaving parameters for high quality fabrics.
Technical specifications
| Item | Specification | Optional |
Reed space | Nominal | 1900,2100,2300,2500,2800,3400,3600mm |
|
Useful Reed Width | Same as nominal width maximum reduction 60cm(1900-2500mm) Same as nominal width maximum reduction 80cm(2800mm) |
| |
Working Range |
| Short yarn:100s/1 ~ 5.8s/1 |
|
Weft selection |
| Single-color, double-color,4-color, 6-color,8-color jet printing modes available for option |
|
Drive |
| Rush start motor |
|
| Programmed and direct drive & stop mechanism by electromagnetic brake |
| |
| Braking, positioning, and stopping through solenoid brake |
| |
Weft Insertion |
| Main and sub-nozzles combined system | Strength nozzle |
| Profile reed |
| |
| Auxiliary main nozzle |
| |
Shedding |
| Positive cam shedding:shaft number up to 10 |
|
| Dobby shedding:shaft number up to 16 |
| |
Let-off |
| Electrinic let-off |
|
Flange Dia | 800mm | 914,1000mm | |
Take-up |
| Electronic take-up |
|
Max take-up Dia | 600mm |
| |
Pick density | MTU mechanical take-up |
| |
(16.7~204.4 picks/inch) |
| ||
Length count | Board display, take the function of fixed measure stop |
| |
Temple | Upper-mounted |
| |
Beating |
| Crank type beating, multiple sley sword beating 4 links (Reed space up to 280cm) 6 links (Reed space 280~360cm) Intermediate rocking supporter |
|
Measuring / storing |
| FDP Free Drum Pooling |
|
Filling supply stand |
| Floor-mounted for 4 packages(2 colors) Floor-mounted for 8 packages(4 colors) Floor-mounted for 10 packages(6 colors) |
|
Selvedge |
| Planetary fear motion(leno selvedge of middle cord yarn) |
|
Waste filling removal |
| Catch cord type |
|
Cutter |
| Mechanical cutter | Electronic scissors |
Lubrication |
| Oil bath system for main drive parts, centralized lubrication(manual grease) | Central refueling(grease, electric) |
Auto-stop motion | Weft yarn | Reflective weft feeler |
|
Warp yarn | Electric feeling system |
| |
Others | Stop motion for selvage and catch cord yarn |
| |
Stop cause indication | Message on board, 4-color lamp for indicating cause |
| |
Middle scissors |
| Mechanical type(Tisser double width) |
|

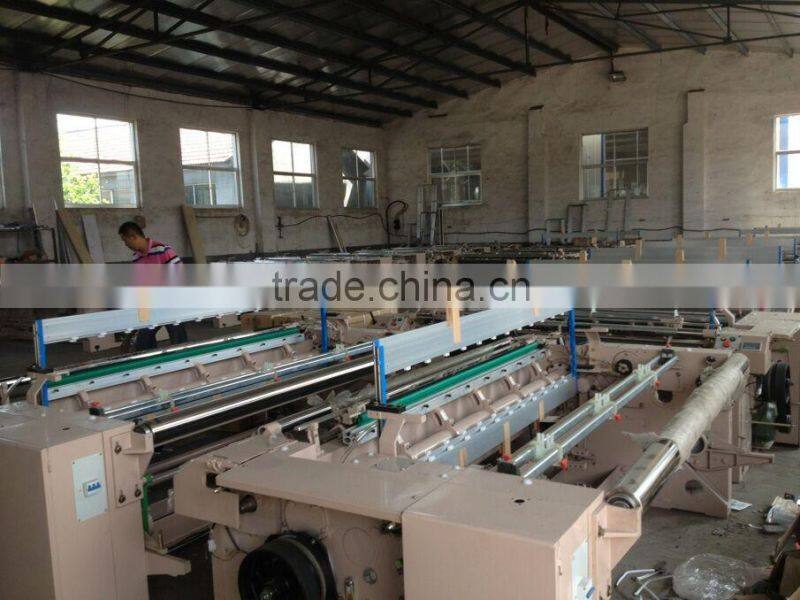

PICTURES OF THE AIR JET LOOM:
1. High quality and heavy duty machines with low vibration and low noise.
2. Super high efficiency and stability of machines.
3. Exellent quality of fabric weaving, especially in high density,high weight,ultrafine fabric
4. Engineers available for installation and commissioning.
CONTACT DETAILS:
Daniel Xing
Sales manager
Qingdao Hongyuxing Machinery Co., Ltd
Address: Wangtai town, Huangdao District, Qingdao, China
Website: http://qdhongyuxing.en.china.cn
Cell phone/Whatsapp/Wechat: +86-151 9262 0099
