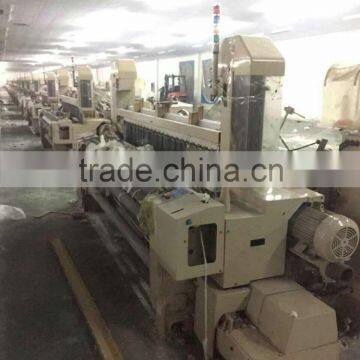

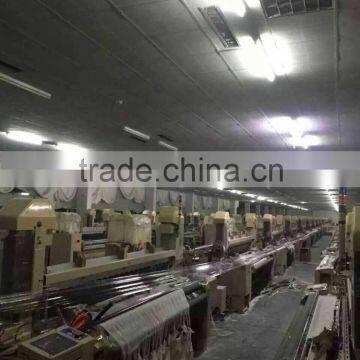

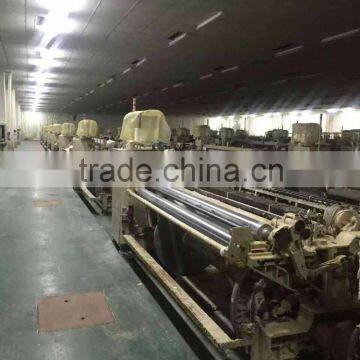

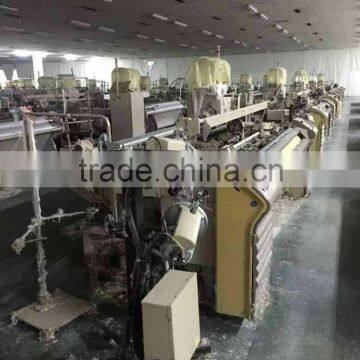

Help CenterHigh Quality Used Air Jet Loom/second Hand Air Jet Loom/old Air Jet Loom
Related Products
-
2016 Premium Quality Industrial Loom/industrial Weaving Machines Price/industrial Weaving LoomsUS$ 3.00 - 3.00MOQ: 1 Set -
Best Selling Shuttleless Loom/cotton Weaving Loom/textile Loom in 2016US$ 2.00 - 2.00MOQ: 1 Set
-
Best Selling Loom/air Jet Power Loom/air Jet Loom Price 2016US$ 1.00 - 1.00MOQ: 1 Set
-
High Speed Air Jet Loom/air Jet Loom With Jacquard/shuttleless Loom Hot Selling 2016US$ 3.00 - 3.00MOQ: 1 Set
-
High Quality and Heavy Duty Best Selling Air Jet Loom/fabric Weaving Machine/cotton Weaving MachineUS$ 1.00 - 1.00MOQ: 1 Set
Technical specifications
|
Item |
Specification |
Optional |
Reed space |
Nominal |
1900,2100,2300,2500,2800,3400,3600mm |
|
Useful Reed Width |
Same as nominal width maximum reduction 60cm(1900-2500mm) Same as nominal width maximum reduction 80cm(2800mm) |
|
|
Working Range |
|
Short yarn:100s/1 ~ 5.8s/1 |
|
Weft selection |
|
Single-color, double-color,4-color, 6-color,8-color jet printing modes available for option |
|
Drive |
|
Rush start motor |
|
|
Programmed and direct drive & stop mechanism by electromagnetic brake |
|
|
|
Braking, positioning, and stopping through solenoid brake |
|
|
Weft Insertion |
|
Main and sub-nozzles combined system |
Strength nozzle |
|
Profile reed |
|
|
|
Auxiliary main nozzle |
|
|
Shedding |
|
Positive cam shedding:shaft number up to 10 |
|
|
Dobby shedding:shaft number up to 16 |
|
|
Let-off |
|
Electrinic let-off |
|
Flange Dia |
800mm |
914,1000mm |
|
Take-up |
|
Electronic take-up |
|
Max take-up Dia |
600mm |
|
|
Pick density |
MTU mechanical take-up |
|
|
(16.7~204.4 picks/inch) |
|
||
Length count |
Board display, take the function of fixed measure stop |
|
|
Temple |
Upper-mounted |
|
|
Beating |
|
Crank type beating, multiple sley sword beating 4 links (Reed space up to 280cm) 6 links (Reed space 280~360cm) Intermediate rocking supporter |
|
Measuring / storing |
|
FDP Free Drum Pooling |
|
Filling supply stand |
|
Floor-mounted for 4 packages(2 colors) Floor-mounted for 8 packages(4 colors) Floor-mounted for 10 packages(6 colors) |
|
Selvedge |
|
Planetary fear motion(leno selvedge of middle cord yarn) |
|
Waste filling removal |
|
Catch cord type |
|
Cutter |
|
Mechanical cutter |
Electronic scissors |
Lubrication |
|
Oil bath system for main drive parts, centralized lubrication(manual grease) |
Central refueling(grease, electric) |
Auto-stop motion |
Weft yarn |
Reflective weft feeler |
|
Warp yarn |
Electric feeling system |
|
|
Others |
Stop motion for selvage and catch cord yarn |
|
|
Stop cause indication |
Message on board, 4-color lamp for indicating cause |
|
|
Middle scissors |
|
Mechanical type(Tisser double width) |
|
1. High quality and heavy duty machines with low vibration and low noise.
2. Super high efficiency and stability of machines.
3. Exellent quality of fabric weaving, especially in high density,high weight,ultrafine fabric
4. Engineers available for installation and commissioning.
CONTACT DETAILS:
Daniel Xing
Sales manager
Qingdao Hongyuxing Machinery Co., Ltd
Address: Wangtai town, Huangdao District, Qingdao, China
Website: http://qdhongyuxing.en.china.cn
Cell phone/Whatsapp/Wechat: +86-151 9262 0099
