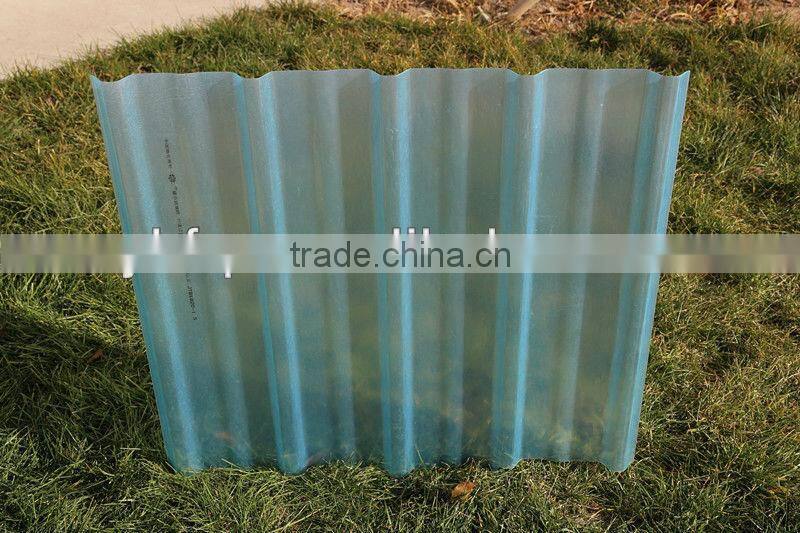

Fiberglass Frp Transparent and Translucent Roofing Sheet
Negotiable
MOQ: 300 Square Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Yaohua
Model Number:
many sizes
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Corrugated Fiberglass Roof Panels in Different ColourNegotiableMOQ: 300 Square Meters -
Fiberglass Frp Wind Proof Wall Panels Used in Industry FactoryNegotiableMOQ: 300 Square Meters
-
Roll FRP Gel Coat Panels From 1.2mm to 5.0mmNegotiableMOQ: 300 Square Meters
-
Roll FRP Gel Coat Panels From 1.2mm to 5.0mmNegotiableMOQ: 300 Square Meters
-
Roll Frp Gel-coated Panel From 1.2mm to 5.0mmNegotiableMOQ: 300 Square Meters
Place of Origin
Hebei, China
Brand Name
Yaohua
Model Number
many sizes
Application
industry/construstion/agriculture
Surface Treatment
smooth
Technique
pultrusion
Dimensions
0.7mm-4mm
Yaohua FRP sheets are made of fiberglass and polyester resin and continuously molded by machine.
They are characterized by high-light transmittance, light-weight, high-strength, corrosion resistance, impact resistance, anti-ultraviolet, anti-static, heat preservation and insulation, accurate section dimensions and controllable cutting length. They can be used with various profiling panels and galvanized sheets.
Physical properties:
| Tensile strength | 80-100Mpa |
| Flexural strength | 0-110 Mpa |
| Density | 1.4-1.6g/cm³ |
| Pasteur | ≥40 |
| Heat conductivity factor | 0.67-0.96kv/m.h.°C |
| Temperature range | -40°C—+60°C |
| Water absorption | 24 hours ≤0.32% |
| Wind loading rating | below 8 levels |
| Curing degree | ≥82% |
Product classification:
Plate type |
|
thickness(mm) |
width(mm) |
Flat plate |
0.7-4.0 |
≤1400 |
|
Sine wave |
0.7-4.0 |
≤1200 |
|
Trapezoidal wave |
0.7-4.0 |
Mating with pressure plate |
|
Fire resistance |
Ordinary type |
||
The technical standards of FRP sheet
- Good tenacity. No cracking phenomenon when driving nails in roof installation.
- Having close combing with color steel plate. Cross-section thickness is uniform. The shape of FRP is consistent with steel plate.
- Transmittance loss rate is low. No yellowing phenomenon after long term service.
- Thermal expansion coefficient is close to that of steel plate. No cracking and water leakage in nail driving place because of expand with heat and contract with cold.
- Light through FRP assumes scattering shape and gentle.
- Bright and clean appearance. No distinct air bubble and cracking on FRP.
- Anti-ultraviolet and anti-chemistry corrosion.
- Anti-aging and anti-pulverization.
- Long service life.
