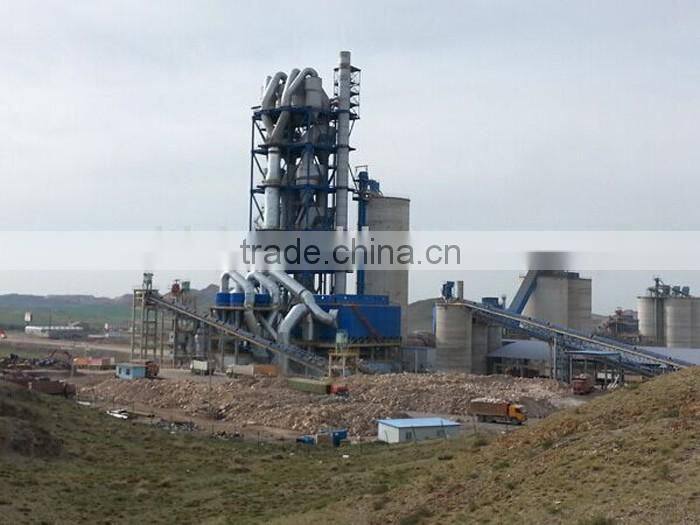

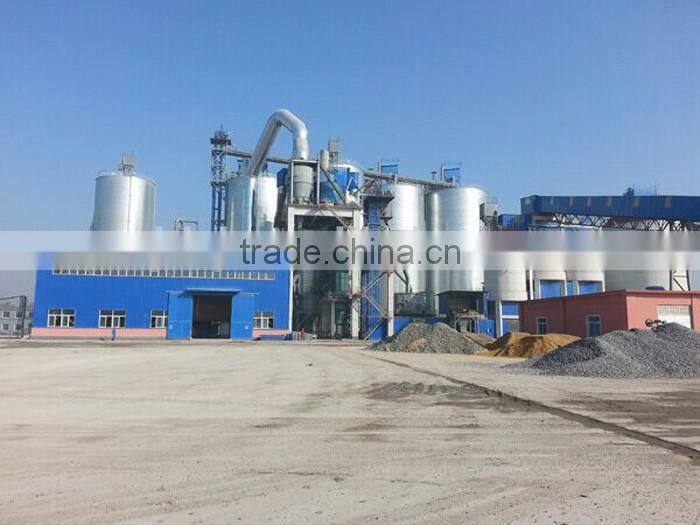

Portland Cement Process Portland Cement Production Line

Portland cement process portland cement production line

The cement production line includes vibrating feeder, jaw crusher, impact crusher, vertical mill, preheating system, cement rotary kiln, cement ball mill, packing machine and so on.

 All the necessary equipment in this line can be provided by our factory. We have cement production line experts to design specific solutions for your reference.

Material needed for making cement:

Limestone crushing: limestone is the main raw material for cement making, but since natural limestone is usually big, we use cement limestone crusher to crush them into small particles.

Bauxite crushing: bauxite is the addictive. For making cement raw materials, bauxite is crushed by cement equipment into powder. Then bauxite particles and limestone particles together are ground into raw powder by raw mill.

Coal crushing: coal powder is used to be processed into cement clinker. Raw coal is crushed by cement plant then ground by cement coal mill.

Gypsum crushing:gypsum powder made by gypsum crusher and gypsum mill is put into cement clinker together with coal powder, and then the cement raw material enters into the cement mill for fine grinding.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

Detailed process of the cement production line

1. Crushing and Preblending

In the cement production line, most of the material need to be broken, such as limestone,clay,iron ore and coal,etc  Limestone is the largest amount of raw material in cement production, after mining the size of limestone is large, with high hardness, so the limestone crushing plays a more important role in cement plant.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2.Raw material preparation

In the cement production line, producing each 1 ton of Portland Cement need grinding at least 3 tons of materials (including raw materials, fuel, clinker, mixed materials,gypsum).Grinding operation consumes power about 60% of total power in cement plants, raw material grinding takes more than 30%, while coal mill used in cement plant consumes 3%, cement grinding about 40%. So choosing the right grinding mills in cement plant is very important.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Raw naterials homogenization

Adopting the technology of homogenization could rationally get the best homo-effect and afford an eligible production to the demand

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Preheating and precalcing

Preheater and precalcing

Preheater and calciner is key equipment for precalcing production technique.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

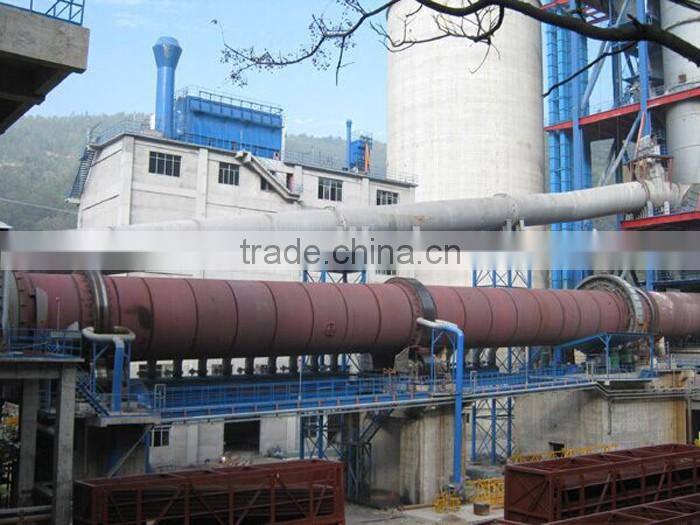

5.Burning cement clinker in a rotary kiln

The calcination of rotary kiln is a key step of cement production, it makes directly influence on the quality of cement clinker.

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------

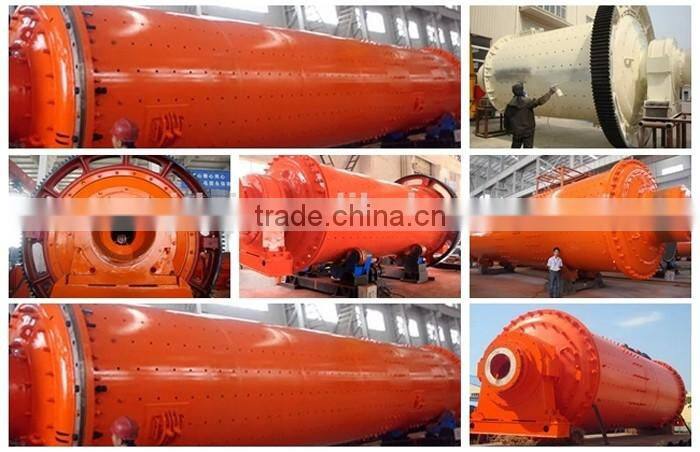

6.Cement grinding

Cement grinding is used for grinding cement clinker (and gelling agent, performance tuning materials,etc) to the appropriate size (in fineness, specific surface area,said), optimizing cement grain grading, increasing the hydration area, accelerating the hydration rate to meet the requirements of cement paste setting, hardening.

Our company provides Feeder, crusher, predistributing bin, batching station, vertical mill, kiln feeding for raw material, preheater, rotary kiln, coller, clinker bin, cement mill and so on. these equipment is the main part of the cement production line.

           Shanghai Tongli Heavy Machinery Co.,ltd is specialized intechnology R&D, engineering consultation , equipment debugging, engineering contracting and related technical services for manufacturing cement, building material, mining, environmental protection, metallurgy, chemical equipment. Tongli Heavy Machinery  Co.,ltd established in 1958year, is a member of the China Building Material Machinery Association, a leading enterprise of China Cement Machinery, on the vendor of designated manufacturers for coal industry mechanical and electrical equipments, ISO9001:2008 accredited and accredited as a high-tech & new technology enterprise of Zhejiang Province, national designated “defend the contract heavy credit enterprise”, modern enterprise of national top ten cement grinding system of technologies and equipment , at the top of cement equipment manufacturing in Zhejiang Province.

       The Tongli occupies 153800m2 and the construction area of the workshop is 85000m2,the maximum lifting capacity of a single head crane is 200t. The company is equipped with more than 100 sets of heavy machinery manufacturing equipments such asφ5.3×18m(The lifting capacity is 200t)digital control horizontal lathe, φ5.5×18m lathe for machining shell, φ8m heavy digital display vertical lathe, φ8.0m heavy hobbing machine, 14×5m CNC vertical milling & boring machine, 3.4×10m CNC gantry milling & boring machine, 120mm digital control plate bending rolls, φ6.5×20m large size annealing furnace, φ6.5×20m sand blasting room, 1800t four columns hydraulic press, 10t electric arc furnace, etc, the integrated machinery processing ability is very strong.

          After working hard for more than 56 years, the company has the first-class science and technology development centers and craftsmen team who have much experience and skilled technology, specially manufactures series of cement machinery main equipments with independent intellectual property such as slag vertical mill, raw material vertical mill, cement vertical mill, coal vertical mill and rotary kiln, cement mill, wind swept coal mill, dryer, etc; in the meantime, manufactures the equipments and large- sized structural workpieces such as compound fertilizer, mining, power generating, sewage sludge (waste)incineration systems, etc, the products are exported widely toover 1000 companies from sixty or more countries such as Germany, Russia, Brazil, Egypt ,Iran, Bangladesh, Pakistan, Turkey, Myanmar, Vietnam, Columbia, Bolivia, South Africa, etc.

 Our Services:

  * Installation and adjustment: should the installation service is needed, technicist will be provided by supplier for buyer to assist the work such as welding connection of shell body.

  * Quality Guarantee: three-guatantees of product and warranty period is one year.

  * Technical support is provided from the beginning to the end

  * Spare parts are serviced for sale in the whole year.
