Specifications

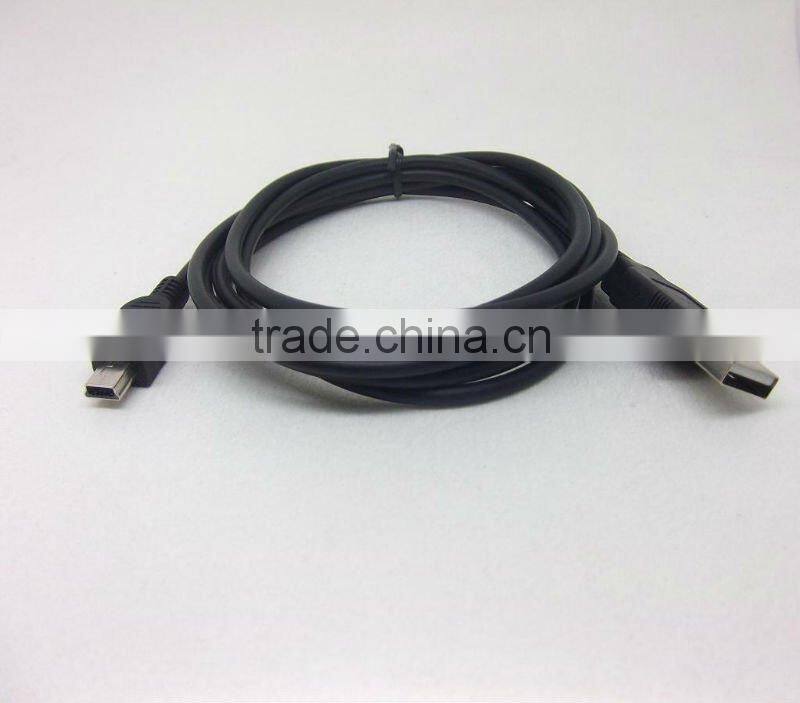

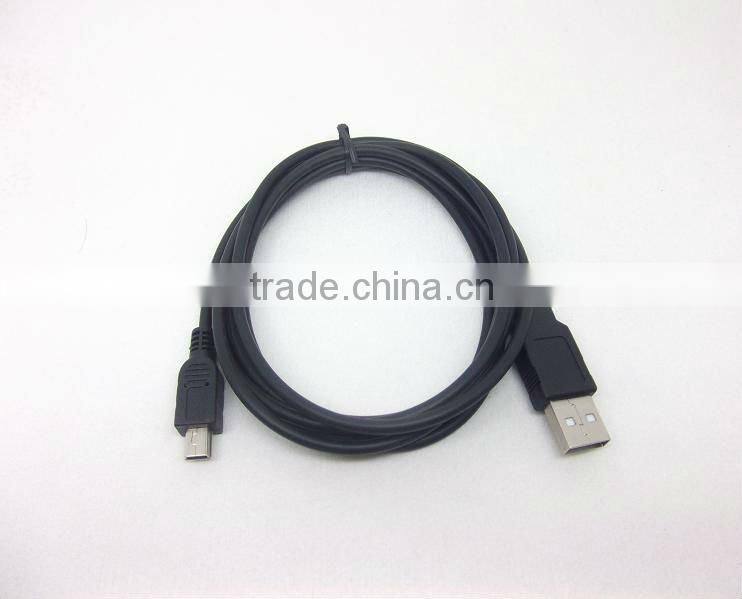

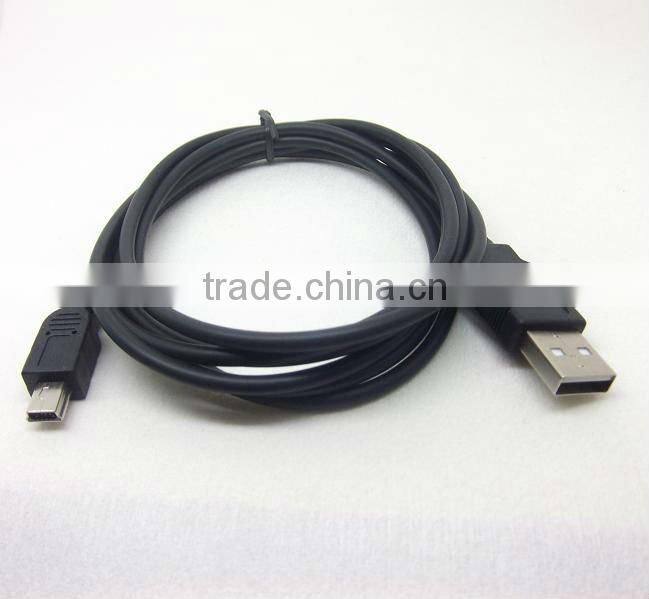

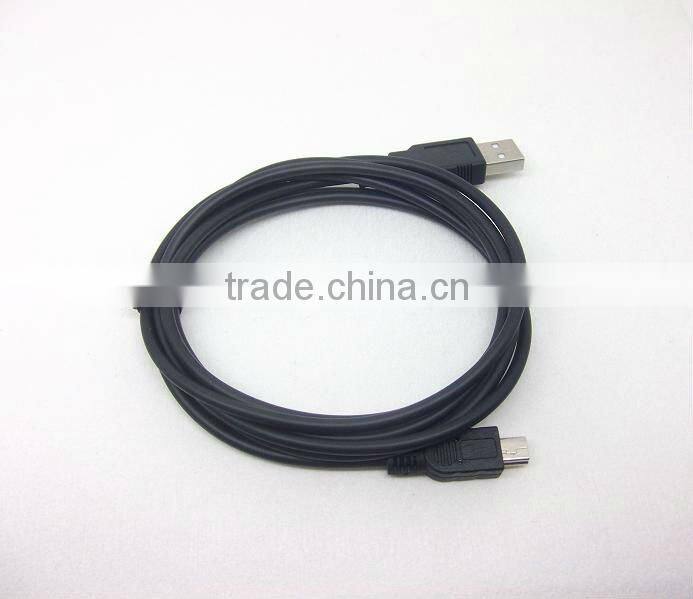

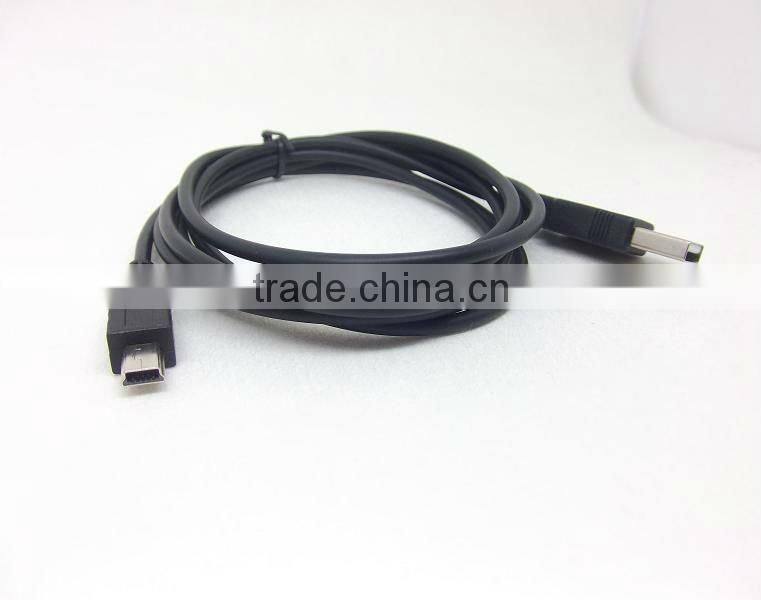

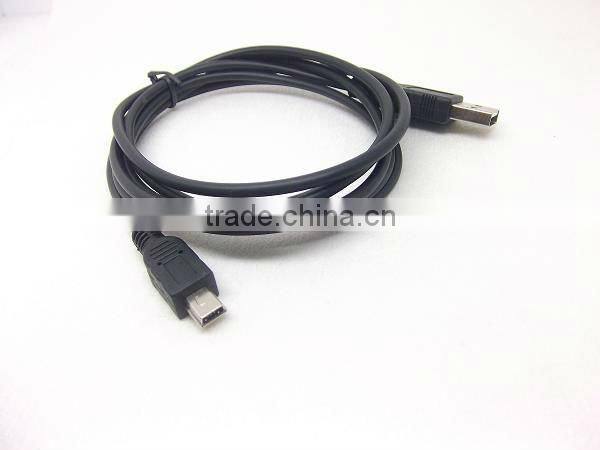

mini usb cable for Motorola V3*Data transfer rate up to 480 Mbps
*28AWG conductor
*Rated voltage:30V
*1year warranty
Specification:
*USB CABLE AM TO MINI 5P
*USB Cable AM TO MIni 5PIN Version 2.0
*mini USB Cable 2.0
*High speed USB2.0 cable( compliant with USB1.0,USB2.0,USB3.0)
*one 28awg twisted pair(data )plus two power conductors
*overall shield:overall aulminized polyester shield with drain wire pus tinned
*copper braid shield
Features:
mini usb cable for mini usb cable for Motorola V3
*USB(AM) To USB(BM) Cable
*Connector:Nickel plated
*Conductor:pure copper
*Edition:USB1.0,2.0 Optional
*Gauge:30AWG,28AWG,26AWG optional
*Length:0.5M,1.0M 1.5M,2M,5M Customized(or as your requirement)
*Jacket color:Black
*Using for most mobilephones and MP3/MP4 Players with mini USB interface.
Electrical:
*100% open & short test
*Hi-Pot: DC 300V 10ms
*nsulation Resistance: 10M OHM /300V Min.
*Contact Resistance: 0.01 OHM Max.
*Shield up to 65% braid.
*Working Temperature: -25oC ~ +85oC
Mechanical:
*Over mold: PVC 70Pa UL94V-0 Black
*Pre mold: PE Low Density
*Contact: Copper Alloy.
*Insertion Force: 35 N Max.
*Withdraw Force: 10 N Min
Products Warranty:
We offer a 12 months After Service for most of our products. You can return the defective items for replacement or repair.
Products Test:
We will do a pre-shipment quality assurance check to reduce the occurrence of quality problem.
