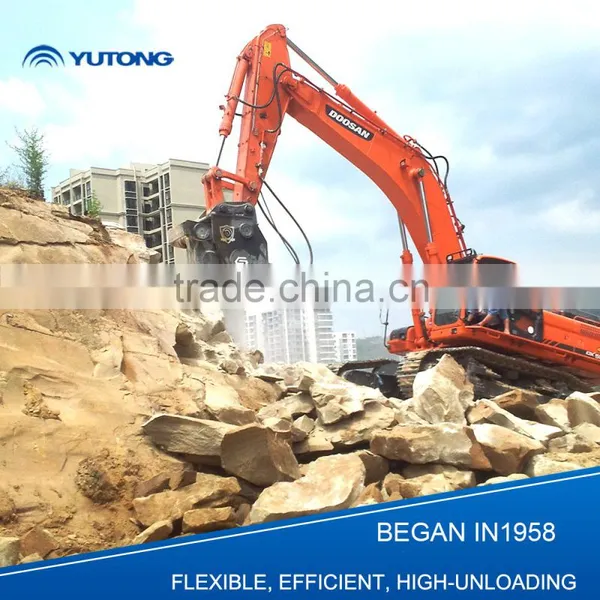

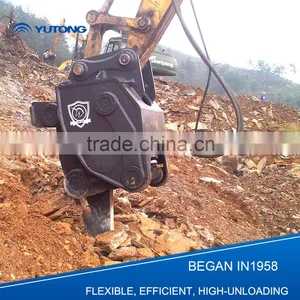

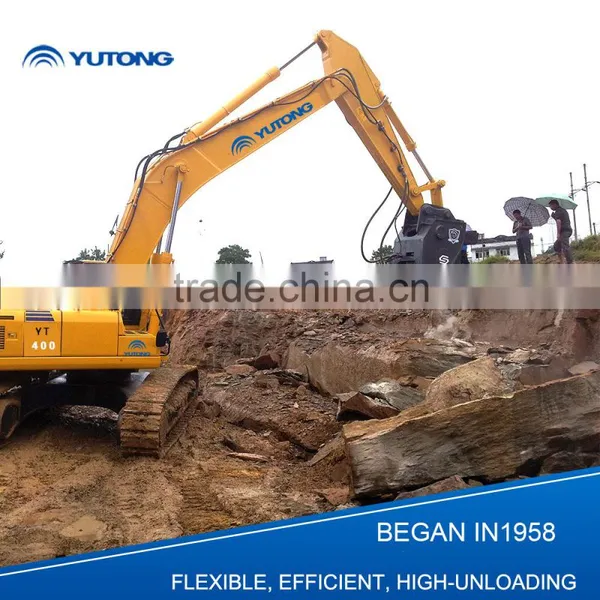

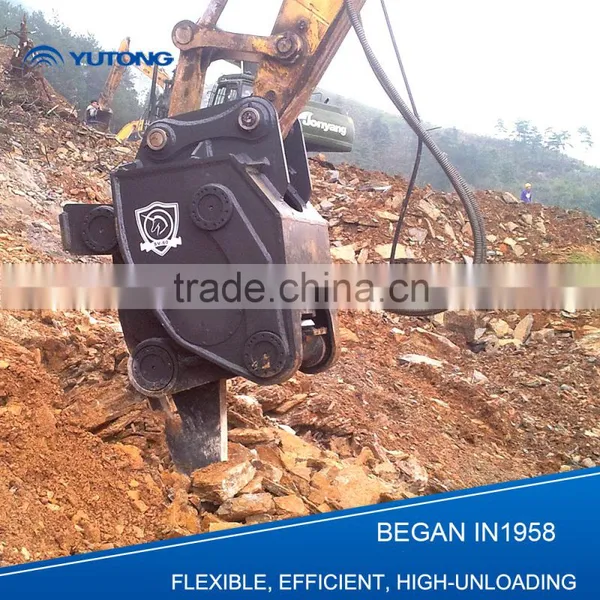

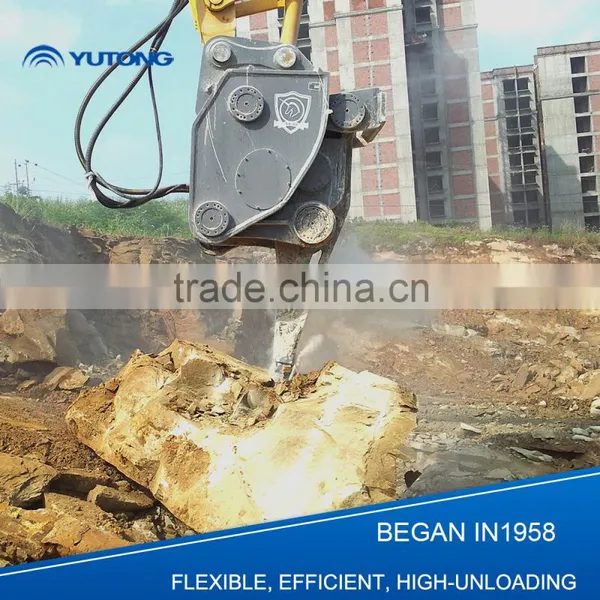

China New Excavator Hammer For Sale
Main Technical Parameters
Model |
SV-20 |
SV-30 |
SV-40 |
SV-50 |
SV-60 |
SV-E5 |
SV-E6 |
SV-E7 |
|
Excavator (J) |
15-20 |
22-26 |
28-30 |
30-33 |
36-45 |
36-45 |
50-55 |
70-100 |
|
Working flow (l_/min) |
150-180 |
150-200 |
160-220 |
180-250 |
260-295 |
260-295 |
300-350 |
360-450 |
|
Working pressure (Mpa) |
20-24 |
23-24 |
23-25 |
23-25 |
24-26 |
24-26 |
24-26 |
25-28 |
|
Size |
Length |
2300 mm |
2700 mm |
2700mm |
2800 mm |
3100 mm |
3400 mm |
3685 mm |
3500mm |
Width |
950 mm |
1200 mm |
1200 mm |
1250 mm |
1250 mm |
1207 mm |
1246 mm |
1355mm |
|
|
Height
|
1350 mm |
1500 mm |
1500 mm |
1550 mm |
1650 mm |
1780mm |
1815 mm |
1885mm |
|
Weight (Kg) |
3000 |
3600 |
3800 |
4300 |
5000 |
5500 |
6200 |
6600 |
|
Hose size (G) |
3/4 |
1 |
1 |
1 |
1 1/4J |
1 1/4’ |
1 1/4J |
1 1/4’ |
|
Impact power (KN) |
251 |
278 |
300 |
500 |
580 |
680 |
923 |
1040 |
|
Impact frequency (Hz) |
25-30 |
25-30 |
25-30 |
25-30 |
25-29 |
25-29 |
25-29 |
25-29 |
|
SV-20 |
Use for some of excavate and dismantle works, also can work for arenaceous clay and ice breaking. |
SV-30 |
Wider working areas, can work for loose rock, some stand stone, city roadbed, and thicker frozen earth. |
SV-40 |
Improved type for SV-30, expanded working scopes and productivity improvement. |
SV-50 |
Design for some big earthwork and some stone mine. It has special effects on shale, fault fracture zone and some decomposed rock. |
SV-E5 SV-60 |
At some big earthwork areas, we used to have got a score at 150 cubes per hour (sand rock), wide working scopes, and could take some place of blast work. |
SV-E6 |
Biggish type of viber, design for mining, used to have 3800 cubes (22 hours) per day output to replace blast work. |
SV-E7 |
Biggest type Viber in the word at the moment. Almost can break the rocks over 8 levels. Employ the most advanced vibration technology, can matched on 80-100 tons class excavators. |
Performance Characteristics
There are several specialties of the viber, such as high efficient, energy conservation, environmental protection and so on.Under the feasibility working conditions, the output can match 3-5 times higher than any other breaks whicH are fitted on the same class excavators.In the same working condition, viber can save 30% fuel consumption than breakers.The working noise is only 50-75 db, it's completely satisfied with city proper working requires, even working in the evening.With a simple refit, the viber can works under water. |
1.Enhance 3-5 times higher output. |
2. Reduce synthesize fuel consumption. |
3. Reduce unit output emission load. |
4. Work under water and subsurface with out refit. |
5. Minimum damage to excavator's bumps and arms. |
6. Enhance comfort level during operate |
7. Minimum operating noise. |
8. Lower maintain. |
9. Lower vulnerable part cost. |
10. Enhance parts and full equipment working life. |
|
"12380"Service after sale. We can offer: 1.After receiving the customer mobile, we will help customer solve problem through removing the resources of Yutong service and reply the customer clearly in one hours; 2: To improve the service quality all the time, in 2working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service; 3: To comprehensive systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period; 8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit; 0: To eliminate customer worries, from receiving order to product scrapping, Yutong will provide full reliance, seamless docking and service in the period of product using. |
|
|
|
|
|
Yutong Heavy Industry is China's top 500 enterprises Yutong Group's core subsidiary, is a leading supplier of specialized mining, infrastructure and sanitation machinery and equipment package of solutions. The company is the cradle of Chinese construction machinery design and manufacturing, since 1958, China's first hydraulic torque converter, the first power shift transmission, the first self-propelled scrapers, the first large horsepower tire type tractors, more than 30 "China's first" all born here! factory occupies 2102 acres, with more than 3,000 people, including more than 470 man-made construction machinery senior technical staff, and has academician workstation and provincial enterprise technology center. Yutong Heavy Industries as a quality supplier of PLA, every year a large loaders and bulldozers to the military. We also provide the United Nations had as loaders, bulldozers and wreckers, and obtained the creation of the United Nations awarded the Star of Science Award. Our company is China's first loader KD line exporter, currently this KD line services in Iran, the annual amount of 300 assembly, and its products can cover the Middle East, many countries such as: Saudi Arabia, Turkey and Azerbaijan. Also Our rotary drilling rig, successfully sold to the United States five devices, and job conditions in Alaska minus 50 degrees. Our product is in Africa an affirmative president of Nigeria, the African business people and our next president our photo equipment. Our sanitation garbage package of solutions and services in Ghana is the country for the African brothers to improve their living environment contribute our part. In South America, Cuba and Venezuela, we are the government's long-term strategy for its suppliers. Rotary Drilling Division I Participation in 2008 Olympic Games in the Bird's Nest construction work, and successfully laid the first pile. |
We are military equipment supplier, our original facotry is founded at 1958. Good quality and competitive price is our advantage.
For quality guarate, we give one year guarantee, and with 24hours response principle for better service. We have more than 30 agency all over the world, you can get the most convenient service by nearest agency.
We accept T/T, L/C, D/P, D/A,even L/G. |
|
