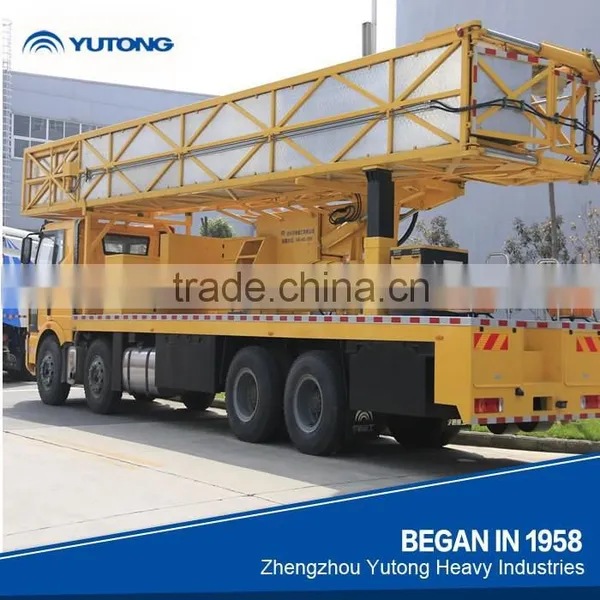

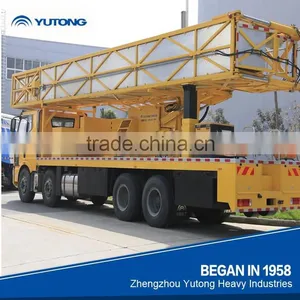

Heavy Bridge Detection Truck
- 30 Set / Sets per Month
- TIANJIN/DALIAN/SHANGHAI/QINGDAO
- T/T L/C D/P D/A Credit Card
- Caterpillar 439-5037 4395037 Fuel Water Separator Filter CAT EC200D EC170C/D Excavator
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
- XY-2 Water Well Drilling Rig for Exploration and Core Drilling
- Y-44A Core Drilling Machine With Rope Retrieval For Geological Exploration, Kilometer Long Core Drilling Machine
- XY-44A1400m Rock Core Drilling Machine Engineering Geological Drilling Deep Rock Core Sampling Large Hydraulic Drilling Machine
Product Details
Place of Origin: | Henan, China | Brand Name: | YUTONG | Model Number: | YTZ5310JQJ21 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Model of Complete Vehicle | YTZ5310JQJ21 |
Chassis model | CA1313P7K1L11T4E |
Chassis Manufacturer | China FAW Group |
Engine model | BF6M1013-28E3 Euro Ⅲ |
Engine Power (kw/Ps) | 206/280 |
Wheel Tread | 1900+4500+1350 |
Rear axle | 13T-level dual rear axle |
Tyre | 11.00R20 Steel Wire Tyre |

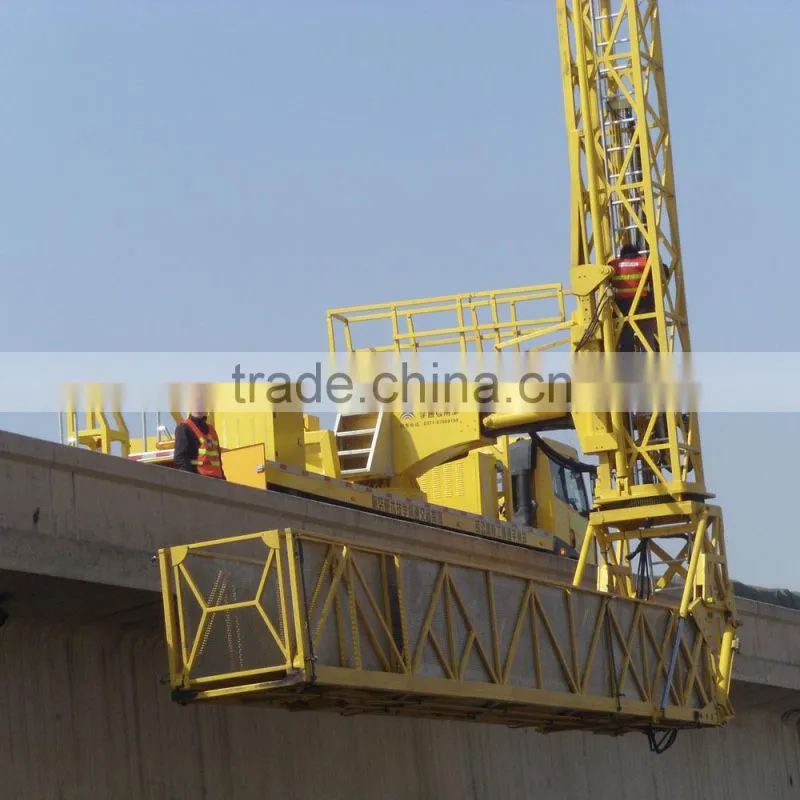

Horizontal working range under the bridge (mm) | 11500~21000 |
The maximum size of the work platform under the bridge (mm) | 8300 |
The rated load of the working platform (kg) | 600 |
The swing angle of the work platform under the bridge (°) | 180 |
Distance spanning over the sidewalk (mm) | 2100~2500 |
Height spanning over the fence (mm) | 2100 |
Structure Type of The Working Platform | Truss Type |
Active force of the working mechanism | Take-off power from the chassis via the Power Take-off |
Standby power of the working mechanism | Gasoline engine unit |
Drive type of self-propelled device | Hydraulic drive |
Self-propelled speed (m/min) | ≤16 |
Steering mode | Manual, wired remote control, wireless remote control |
Communication mode | Wired and wireless intercom system |
Monitoring mode | Wired surveillance systems |
1. The hydraulic system, such as telescopic motors, control valves, etc., are made of imported parts
To ensure stable and reliable hydraulic system and ensure safety operation.
2. Equipped with a self-propelled hydraulic outrigger
Equipped with two outriggers to achieve the propelling by hydraulic drive, and furnished with self-propelled function, thereby greatly improving the work efficiency.
3. User-friendly design, and the swing mechanism is provided with the limit function
1) The swing mechanism cylinder is provided with 90°automatic limiting function;
2) The swing mechanism is provided with 180°automatic limiting function and an auxiliary support cylinder is mounted beneath the 2nd swing mechanism to increase the rigidity of the arm body, and provide secondary safety protection, so as to ensure safety and reliable operation.
4. The vertical luffing mechanism applies the roller bracket
Able to quickly and securely place the arm perpendicular to the bridge side, which is easy to retract the arm body and structural limit, safety and reliable.
5. Equipped with a fixed counterweight
During operation, it does not overstep the vehicle body, not occupy other lane, and not hinder the normal driving of other vehicles.
6. Broad applicability
The arm body can span over 2.5m wide sidewalks and can directly span over 2.1m high fence, which is featured by broader applicability, can be used to detect the vast majority of bridges, so as to bring greater economic benefits.
