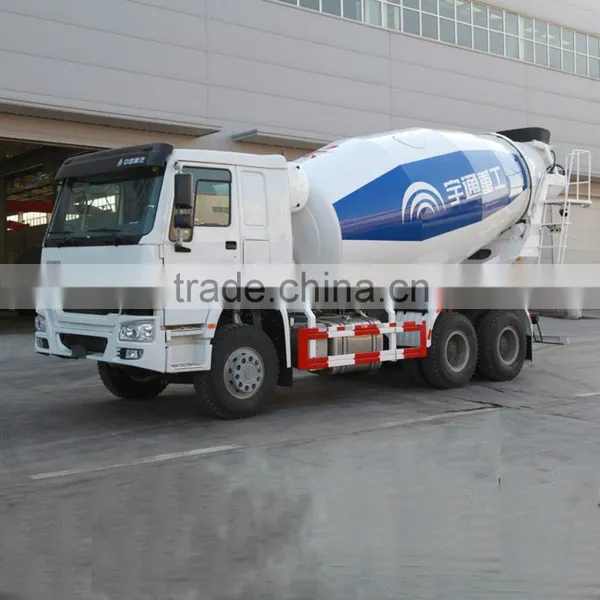

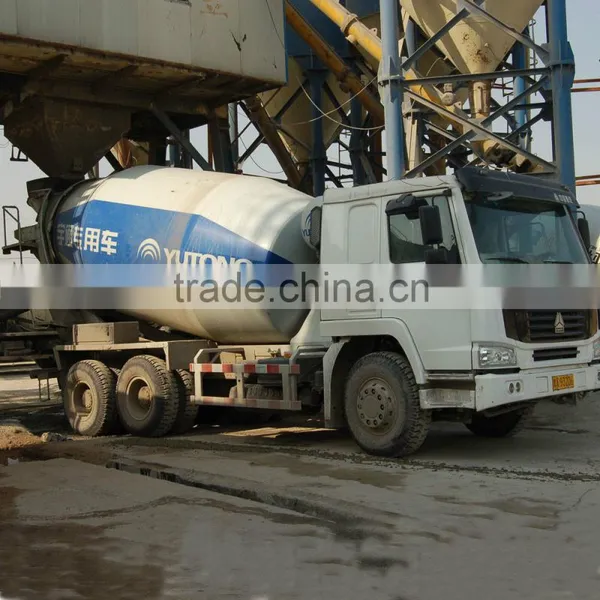

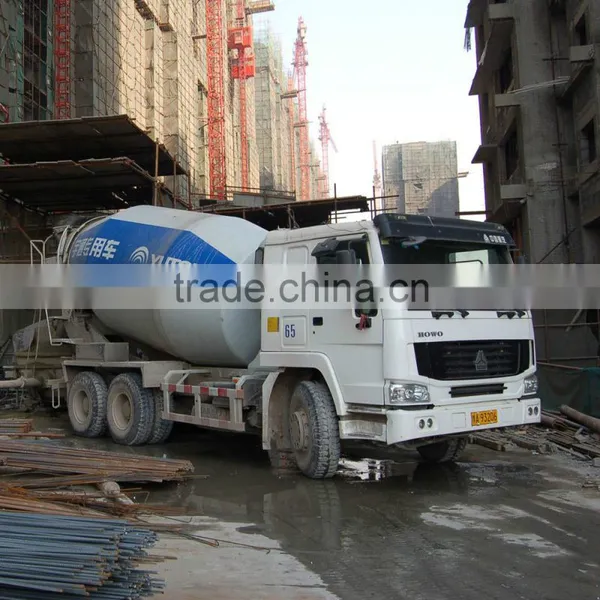

YUTONG 8 Cubic Meters Concrete Mixer Truck
Main Technical Parameters of Concrete Mixer Truck
Declared external dimension of concrete mixer truck (mm) |
9400×2500×3990 |
Actual external dimension of concrete mixer truck (mm) |
8930×2500×3910 |
Chassis model of concrete mixer truck |
ZZ1257N3847C |
Curb weight of complete crane (kg) |
Actual: 14400 (Declared: 15050) |
Rated load of concrete mixer truck (Kg) |
9820 |
Maximum vehicle speed of concrete mixer truck (km/h) |
90/102 |
Wheelbase of concrete mixer truck (mm) |
3625+1350 |
Front suspension / rear suspension of concrete mixer truck (mm) |
1500/2725 |
Approach angle/ departure angle of concrete mixer truck (°) |
16/19 |
Wheel track of front wheel (mm) |
2022,2041 |
Wheel track of rear wheel (mm) |
1830/1830 |
Tire of concrete mixer truck |
12.00-20 Common tire |
Agitating volume of concrete mixer truck (cubic meter) |
10 |
Feed rate of concrete mixer truck (cubic meter/minute) |
≥2.7 |
Discharge rate of concrete mixer truck (cubic meter/minute) |
≥0.65 |
Discharging residual ratio of concrete mixer truck (%) |
≤0.5 |
Rotating speed of mixing drum (r/min) |
0—14 |
Main Configuration of Concrete Mixer Truck
Engine model of concrete mixer truck |
WD615.95E |
Rated power of engine (kw/hp) |
247/336 |
Rated speed of engine (rpm) |
2200 |
Torque of concrete mixer truck (N.m) |
1350/1300-1600 |
Air intake way of concrete mixer truck |
Supercharging, inter-cooling |
Clutch of concrete mixer truck |
Φ430mm Single-sheet dry type |
Transmission of concrete mixer truck |
HW15710 |
Front axle of concrete mixer truck (t) |
HF9 |
Middle and rear axles of concrete mixer truck (t) |
HC16 axles |
Front suspension of concrete mixer truck |
Non-independent leaf spring |
Rear suspension of concrete mixer truck |
Non-independent leaf spring |
Cab of concrete mixer truck |
HW76 flat-roofed and extended cab, equipped with single sleeping berth |
Service brake of concrete mixer truck |
Dual-circuit air brake |
Parking brake of concrete mixer truck |
Air brake braking by spring energy storage chamber |
Auxiliary braking of concrete mixer truck |
Engine exhaust brake |
|
|
|
|
|
|
Performance characteristics of Concrete Mixer Truck
1.Yutong concrete mixer truck introduces the foreign advanced upper-car technology and it can match with the hydraulic systems imported from internationally renowned manufacturer. |
2.The concrete mixer truck has high performance and reliable quality. At present, there are a series of products of different cubic meters, which can match with the chassis manufactured by China National Heavy Duty Truck, Shaanxi Automobile Group, Dongfeng and other well-known domestic manufacturers, so as to meet customer needs in different regions. |
3.Tank body of concrete mixer truck is assembled and connected by using specialized fixtures to ensure the correct concentricity of the tank body and stable operation of mixing tank. |
4.Subframe of concrete mixer truck adopts high-grade anti-bending and torsion resistant longitudinal beams (formed as rectangular tubes). |
5.Longitudinal beams of concrete mixer truck are connected by using the national advanced diagonal bridging structure, which effectively increases the rigidity of the entire upper-car and improves the quality stability and operation safety of the entire vehicle. |
6.The tank body and main structure of concrete mixer truck are made of low alloy steel with high strength and great wear resistance. |
| 7.Concrete mixer truck has dual sealing head structure. Reinforcing plates are added outside the heads and stiffeners are added inside the heads, greatly increasing tank body rigidity. |
8.Double helical blades with optimal design are used in the tank body to realize unloading at a low rotation speed and a high displacement. |
9.Front cone of the tank body is fitted with two forced stirring blades to enhance mixing function and effectively prevent dilution. |
| 10.The concrete mixer truck adopts HOWO series chassis manufactured by China National Heavy Duty Truck and it introduces foreign advanced upper-car technology. |
| 11.In addition, concrete mixer truck can match with hydraulic systems imported from internationally renowned manufacturer and the operation of operating system is flexible and easy. |
| 12.The concrete mixer truck has unique and beautiful modeling, advanced welding technology of tank body, high performance, reliable quality and highly cost-effective. |
|
|
|
|
|
|
|
|
|
|
|
