Five Axles Road-block removal truck

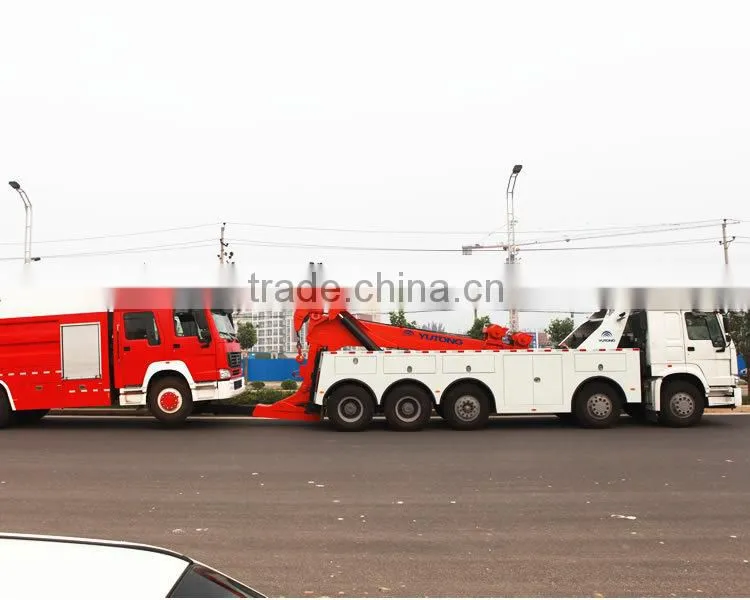

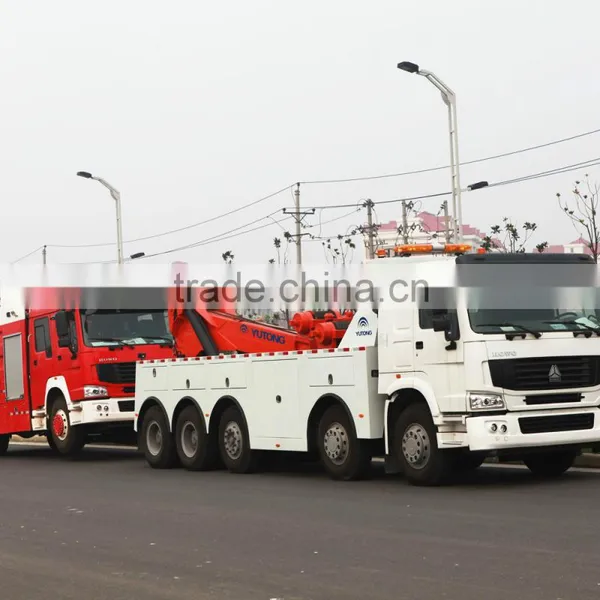

Picture of Road-block removal truck
Major technical parameters of YTZ5197TQZ40EN
Overall dimension of complete vehicle (mm) |
11185×2500×3290 |
Wheelbase (mm) |
1950+3075+1375+1350 |
Wheel track of front wheel (mm) |
2022 |
Wheel track of middle and rear wheels (mm) |
2022/1830 |
Maximum under-pulling capacity (kg) |
50000 |
Maximum hoisting-pulling capacity (kg) |
45000 |
Furthest hoisting-pulling capacity (kg) |
15000 |
Telescopic stroke of boom (mm) |
3500 |
Maximum hoisting height (mm) |
7000 |
Maximum lift angle (°) |
35 |
Rated tractive force of winch (kN) |
150 |
Number of winch |
2 |
Maximum under-hoisting capacity (kg) |
18000 |
Maximum under-hoisting capacity in full-extension condition (kg) |
12800 |
Maximum efficient under-hoisting length (mm) |
3560 |
Telescopic stroke of support arm (mm) |
940×2 |
Folding angle of support arm (°) |
-7~+92° |
Kerb mass of entire vehicle (Kg) |
32400 |
Maximum vehicle speed (km/h) |
90 |
Maximum gradeability (%) |
≥35 |
Maximum turning diameter (m) |
≤24 |
Minimum ground clearance (m) |
≥243 |
Approach angle (°) |
16 |
Departure angle (°) |
14 |
Main configurations of YTZ5197TQZ40EN
Chassis model |
ZZ5507N31b7C1 |
Engine model |
W615.96C |
Rated power of engine (kw/hp) |
276/375 |
Rated speed of engine (rpm) |
2000 |
Maximum torque (N.m) |
1500(1200~1500rpm) |
Engine type |
Compression-ignition type, high-pressure common-rail, in-line 6-cylinder, supercharged inter-cooled diesel engine |
Clutch |
Single-sheet dry type, pull-type diaphragm clutch φ430 |
Transmission |
HW19710 |
Front axle (t) |
HF7 |
Middle and rear axles (t) |
STR |
Front suspension |
Non-independent leaf spring |
Rear suspension |
Non-independent leaf spring |
Cab |
HW76 flat-roofed and extended cab, equipped with single sleeping berth |
Tyre |
12.00-20 |
Service brake |
Dual-circuit air brake, equipped with load sensing proportional valve to adjust the braking force |
Parking brake |
Air brake braking by spring energy storage chamber |
Auxiliary braking |
Engine exhaust brake |
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Welcome to consult us any question you have !
