YTZ5160GQX20E - Performance Features
The high-pressure water circuit adopts the pneumatic actuator to control the high-pressure ball valve switch, and the auxiliary air tank at the chassis is used for air supply, which is environmental protection and energy saving, avoiding secondary pollution due to oil leakage by using the hydraulic cylinder control switch. The high-pressure water circuit system is equipped with a safety valve and pressure relief valve (pressure regulating valve) for double protection.

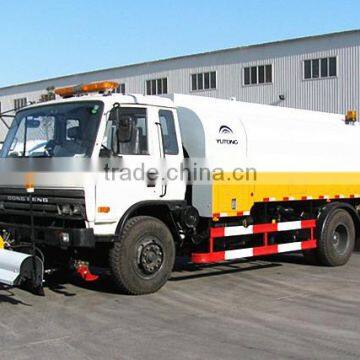

The front cleaning device is installed with the main spray lance and left and right telescopic spray lance. In addition, the end of the left and right telescopic spray lance is mounted with the clearance lamp, which is able to indicte the working width during operation to play a role in warning.
The rear atomization mechanism adopts the imported atomizing nozzle, characterized by long service life, resistance to wear, and the flow of the selected nozzle is two times higher than that of the general nozzle. In addition, its spray scope is wider than the general cleaning truck, which can be used for spray and aspirating, regulating air humidity, improving air quality and spraying air disinfectant.
.
The low pressure water circuit is supplied air by the pneumatic valve control switch and chassis auxiliary air tank, which is environmental protection and energy saving, avoiding secondary pollution due to oil leakage of the cylinder control switch.cleaning truck, which can be used for spray and aspirating, regulating air humidity, improving air quality and spraying air disinfectant.
The cabinet of the water tank is made of and welded by high-quality carbon steel materials, and its inner surface is subject to pickling, phosphating treatment, so as to avoid corrosion on the cabinet due to water storage, thus prolonging its service life.
The hydraulic system is constituted by the international imported or domestic well-known brand products to ensure excellent performance and reliable operation; the hydraulic piping uses the German standard "cone- O" seal structural form, characterized by superior seismic effects and high sealing reliabilityg air humidity, improving air quality and spraying air disinfectant.
YTZ5160GQX20E - Main Technical Parameters
Item |
Unit |
YTZ5160GQX20E |
Dimensions (L × W × H) |
mm |
8040,8890*2480*3090 |
Chassis model |
|
Dongfeng EQ1168KJ (State III) |
Chassis-mounted engine output |
kW /r/min |
132/2500 |
Auxiliary engine output |
kW /r/min |
57 /3600 |
Maximum total mass in full load |
kg |
16000 |
Maximum speed |
km/h |
90 |
High-pressure waterway system |
Maximum pressure MPa |
13 |
|
L/min Flow L/min |
153 |
|
Cleaning width m |
2.5~3.5 |
|
Volume of water tank |
m3 |
10 |
Low-pressure water circuit system |
Range of sprinkler monitor m |
≥36 |
Flow L/min |
400~800 |
|
Flushing width m |
≥24 |
|
High-pressure waterway system |
Rated pressure MPa |
13 |
Rated flow L/min |
153 |
|
Cleaning width m |
2.5~3.5 |
