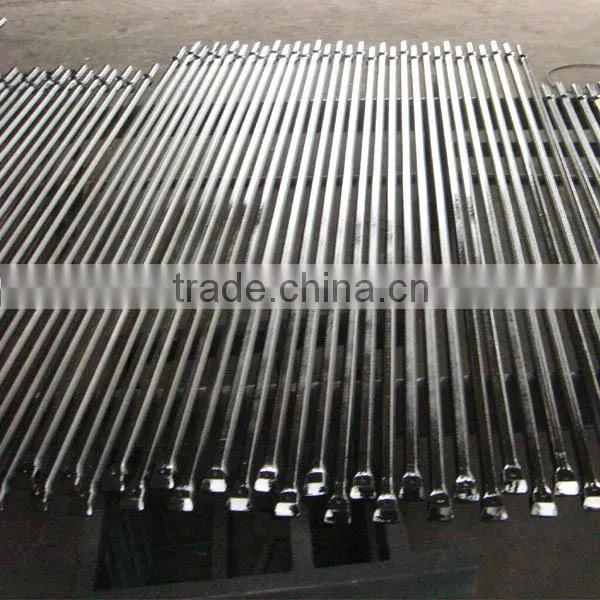

H25 Hex 25 mm Rock Drill Rod

H25 Hex 25 mm Rock Drill Rod thumbnail-1
H25 Hex 25 mm Rock Drill Rod photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
DR25-H25-305 to DR25-H25-4270
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number DR25-H25-305 to DR25-H25-4270
Type Other, H25 Hex 25 mm Drill Rod, Shank 108 mm
Material High Carbon Steel
Use PCB Drilling

Specifications

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Product Description



Drill rod using H25 thread system. Suited for drills capable of receiving Hex 22 mm x 82 mm shank.

• H25 thread system
• Suitable for small hole range


Color: Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: H25 Hex Drill Rod



Applications


• Underground Mining
• Tunneling



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


specification

<

Part Number

Product Code and

Brief Description

Length

 (mm)

Length

(ft/inch)

Diameter

(mm)


Diameter

(inch)


Weight

 (kg)

4148300342

DR22-H25-305-1,

Hex  22 mm Drill Rod,

Shank 82 mm


 305 1 22  6/7 1.2
4148300343

DR22-H25-455-1,

Hex  22 mm Drill Rod,

Shank 82 mm


 455 1 1/2 22  6/7 1.67
4148300344

DR22-H25-610-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 610 2 22  6/7 2.15
4148300345

DR22-H25-762-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 762 2 1/2 22  6/7 2.62
4148300346

DR22-H25-915-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 915 3 22  6/7 3.1
4148300347

DR22-H25-1220-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 1220 4 22  6/7 4.04
4148300348

DR22-H25-1525-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 1525 5 22  6/7 4.99
4148300349

DR22-H25-1830-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 1830 6 22  6/7 5.93
4148300350

DR22-H25-2440-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 2440 8 22  6/7 7.82
4148300351

DR22-H25-3050-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 3050 10 22  6/7 9.71
4148300352

DR22-H25-3660-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 3660 12 22  6/7 11.6
4148300353

DR22-H25-4270-1,

Hex  22 mm Drill Rod,

Shank 82 mm

 4270 14 22  6/7 13.49





Packaging & Shipping

  Packaging: Wooden Box



Our Services

KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due o physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
  • H25 Hex 25 mm Rock Drill Rod





Company Information



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
