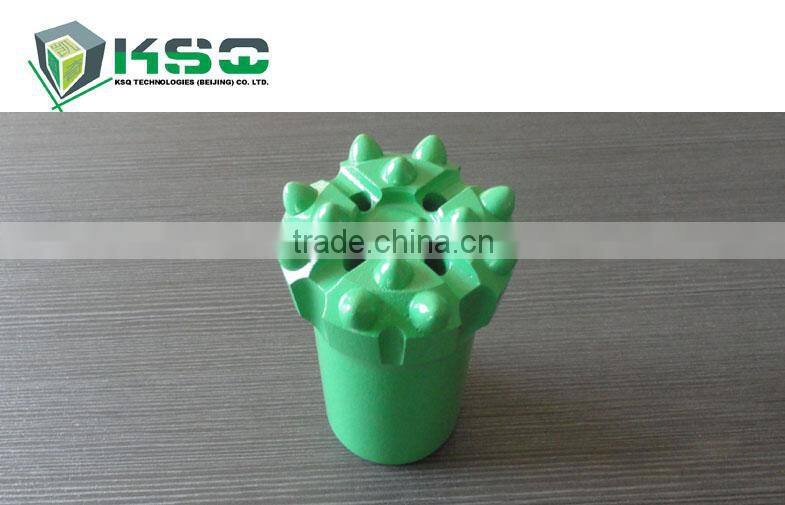

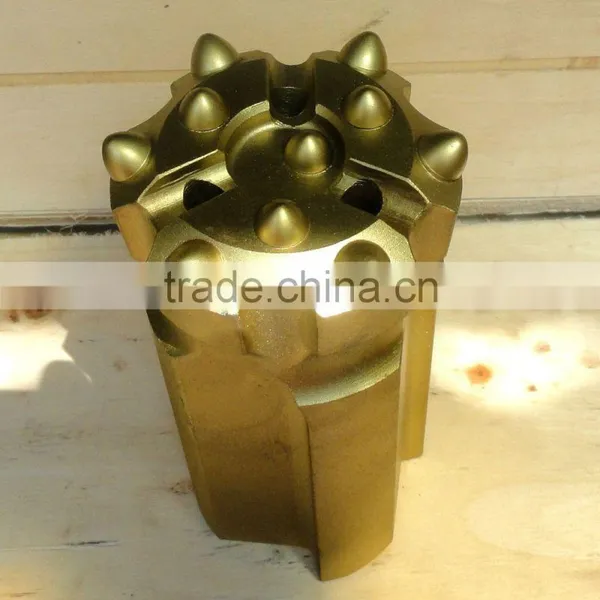

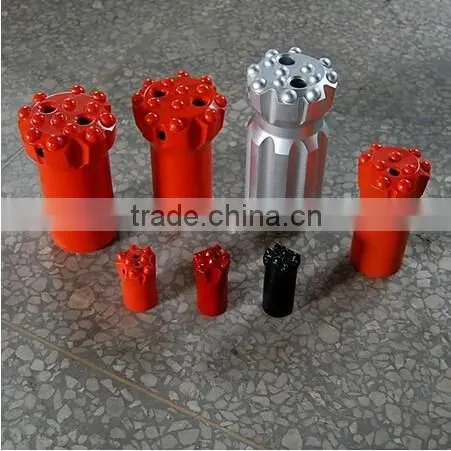

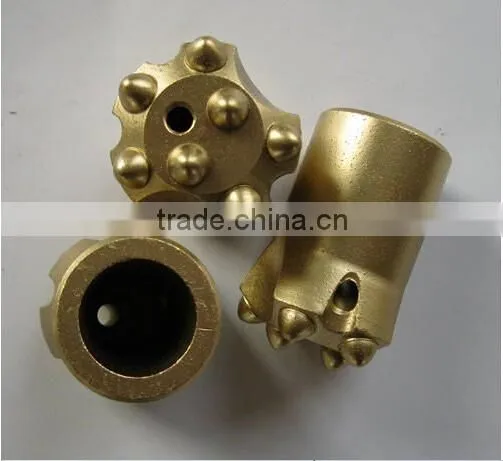

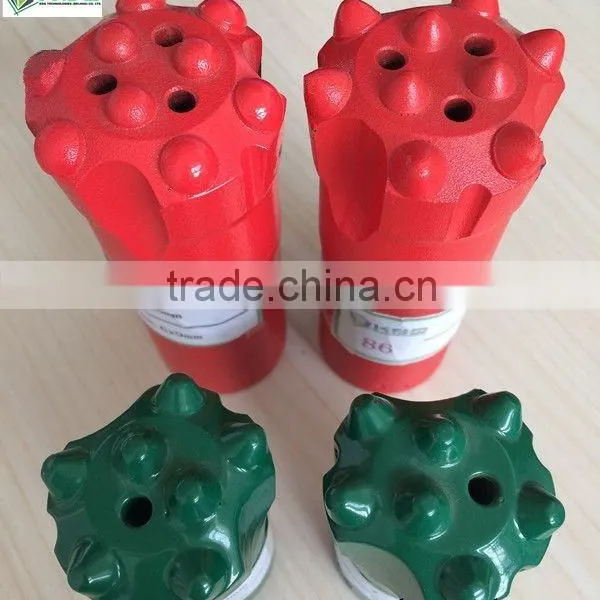

China tungsten carbide drill button rock bit
- Tianjin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | carbide drill bit | Type | Other, Drill Bit, carbide drill bit | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, Carbide, Tungsten carbide | Processing Type | Forging | |
| Use | Other, tunneling, mining,quarrying, Well drilling,mining drilling,ore drilling |
Product Description
Specifications
1.taper ,thread and retrac button bit2.7,11,12 degree,T51,T45,T38,R32,R28
3.Button type:spherical or ballistic
Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock
Product Name: | different rock hardness drilling button bit |
Description: | For different rock hardness mining,tunneling,quarrying button bit Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment. |
Material: | Alloy steel bar and tungsten carbide bit |
MOQ: | trial order 1-5pcs |
Body Type | Normal type and retract type |
Thread type | R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
Diameter | 32mm-152mm |
Button bit shape | Spherical and Ballistic |
Face shape | Flat shape and Drop-center shape |
Applications
• Underground mining
• Tunneling,quarrying
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
| Part Number | Product Code and Brief Description | Bit Diameter (mm) | Bit Diameter (inch) | Front Buttons (No. x mm) | Gauge Buttons (No. x mm) | Angle | Front Flushing Holes | Side Flushing Holes | Weight (kg) |
| 4148300385 | BS733-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 33 | 1 2/7 | 2x7 | 5x7 | 35° | 1 | 1 | 0.4 |
| 4148300386 | BS735-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 35 | 1 3/8 | 2x7 | 5x9 | 25° | 1 | 1 | 0.4 |
| 4148300387 | BS738-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 38 | 1 1/2 | 2x7 | 5x9 | 40° | 1 | 1 | 0.5 |
| 4148300388 | BS741-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 41 | 1 3/5 | 2x8 | 5x9 | 40° | 1 | 1 | 0.6 |
| 4148300389 | BS745-R25-B, R25 Button Bit, Short Skirt, Ballistic Buttons | 45 | 1 7/9 | 2x9 | 5x10 | 35° | 1 | 2 | 0.6 |
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
