R32 High Stell Drill Bit With Ballistic Button for Rock Drilling Tools

R32 High Stell Drill Bit With Ballistic Button for Rock Drilling Tools thumbnail-1
R32 High Stell Drill Bit With Ballistic Button for Rock Drilling Tools photo-1
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
B741-R32-B to B957-R32-B-2
Contact Supplier Request Quote Chat Now
KSQ Technologies (Beijing) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name MIROC
Model Number B741-R32-B to B957-R32-B-2
Type Other, H-thread Button Bit
Material Tungsten Carbide
Use Metal Drilling

Specifications

High grade tungsten carbide inserts
Bit bodies manufactured from high grade steel and processed using state-of-the-art CN



Product Description

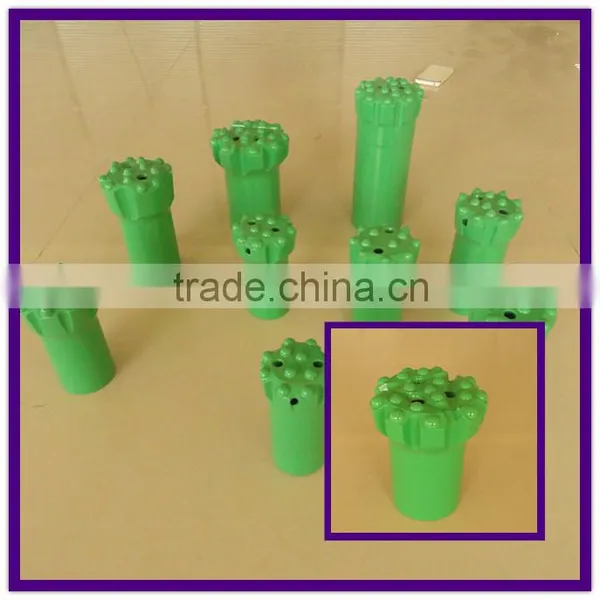

  R32 High Stell Drill Bit with Ballistic Button for Rock Drilling Tools



Description

This type of bit is a high speed drilling bit for soft to medium rock formations (between 50 Mpa to 150 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R32 Button Bit Ballistic Buttons

Applications

• Underground mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Part Number Product Code and Brief Description Bit Diameter (mm) Bit Diameter (inch) Front Buttons (No. x mm) Gauge Buttons (No. x mm) Angle Front Flushing Holes Side Flushing Holes Weight (kg)
4148300506 B741-R32-B, R32 Button Bit, Ballistic Buttons 41 1 3/5 2x8 5x9 40° 1 1 0.7
4148300507 B743-R32-B, R32 Button Bit, Ballistic Buttons 43 1 2/3 2x9 5x9 40° 1 2 0.7
4148300508 B843-R32-B, R32 Button Bit, Ballistic Buttons 43 1 2/3 2x9 6x9 40° 2 - 0.7
4148300509 B943-R32-B, R32 Button Bit, Ballistic Buttons 43 1 2/3 3x8 6x8 40° 3 1 0.7
4148300510 B745-R32-B, R32 Button Bit, Ballistic Buttons 45 1 7/9 2x9 5x11 30° 1 2 0.8
4148300511 B845-R32-B, R32 Button Bit, Ballistic Buttons 45 1 7/9 2x9 6x9 40° 2 2 0.8
4148300512 B945-R32-B, R32 Button Bit, Ballistic Buttons 45 1 7/9 3x8 6x9 40° 3 1 0.8
4148300513 B748-R32-B, R32 Button Bit, Ballistic Buttons 48 1 8/9 2x9 5x11 35° 1 1 0.9
4148300514 B848-R32-B, R32 Button Bit, Ballistic Buttons 48 1 8/9 2x9 6x10 40° 2 - 0.9
4148300515 B948-R32-B, R32 Button Bit, Ballistic Buttons 48 1 8/9 3x8 6x10 40° 3 - 0.9
4148300516 B851-R32-B, R32 Button Bit, Ballistic Buttons 51 2    2x10 6x10 40° 2 - 1
4148300517 B951-R32-B, R32 Button Bit, Ballistic Buttons 51 2    3x9 6x10 40° 3 1 1
4148300518 B954-R32-B, R32 Button Bit, Ballistic Buttons 54 2 1/8 3x9 6x10 40° 3 1 1
4148300519 B957-R32-B, R32 Button Bit, Ballistic Buttons 57 2 1/4 3x9 6x11 35° 3 - 1.3
4148300520 B1264-R32-B, R32 Button Bit, Ballistic Buttons 64 2 1/2 4x10 8x10 40° 2 - 1.6
4148300607 B957-R32-B-2, R32 Button Bit, Ballistic Buttons 57 2 1/4 3x10 6x11 35° 3 - 1.3









Packaging & Shipping

  Packaging:Carton or Wooden Box
