H25 Thread System affords drillers the ability to change drilling bits whilst still using the same drilling rod for small hole drilling. Button bits are cost-effective on medium to hard rock formations, offering faster penetration rates. Used in drifting and tunneling.
Specification:
H25 Cross Type Bit
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | HxW | Front | Side | kg | |||
| 45 | 1 7/9 | - | - | - | 1 | 4 | 0.3 | 4148300314 |
| 48 | 1 8/9 | - | - | - | 1 | 4 | 0.4 | 4148300315 |
| 51 | 2 | - | - | - | 1 | 4 | 0.42 | 4148300316 |
| 57 | 2 1/4 | - | - | - | 1 | 4 | 0.51 | 4148300317 |
| 64 | 2 1/2 | - | - | - | 1 | 4 | 0.58 | 4148300318 |
| 70 | 2 3/4 | - | - | - | 1 | 4 | 0.63 | 4148300319 |
| 76 | 3 | - | - | - | 1 | 4 | 0.69 | 4148300320 |
| 83 | 3 1/4 | - | - | - | 1 | 4 | 1.08 | 4148300321 |
| 89 | 3 1/2 | - | - | - | 1 | 4 | 1.18 | 4148300322 |
| 102 | 4 | - | - | - | 1 | 4 | 1.39 | 4148300323 |
| 35 | 1 3/8 | 12x8 | 1 | 4 | 0.22 | 4148300324 | ||
| 38 | 1 1/2 | 12x8 | 1 | 4 | 0.26 | 4148300325 | ||
| 41 | 1 3/5 | 12x8 | 1 | 4 | 0.3 | 4148300326 | ||
| 45 | 1 7/9 | 14x8 | 1 | 4 | 0.38 | 4148300327 | ||
| 48 | 1 8/9 | 14x8 | 1 | 4 | 0.42 | 4148300328 | ||
| 51 | 2 | 14x8 | 1 | 4 | 0.5 | 4148300329 | ||
| 54 | 2 1/8 | 14x8 | 1 | 4 | 0.5 | 4148300330 | ||
| 57 | 2 1/4 | 16x10 | 1 | 4 | 0.61 | 4148300331 | ||
| 64 | 2 1/2 | 16x10 | 1 | 4 | 0.71 | 4148300332 | ||
| 70 | 2 3/4 | 16x10 | 1 | 4 | 0.88 | 4148300333 | ||
| 76 | 3 | 20x12 | 1 | 4 | 1.25 | 4148300334 | ||
Features:
1. Stale and mature welding technology ensure good quality of bits
2. Accurate dimension of thread perfectly matches the rods
3. Work reliable and very cost-effective
Applications:
• Underground mining
• Dimensional stone industry
• Tunneling, quarrying

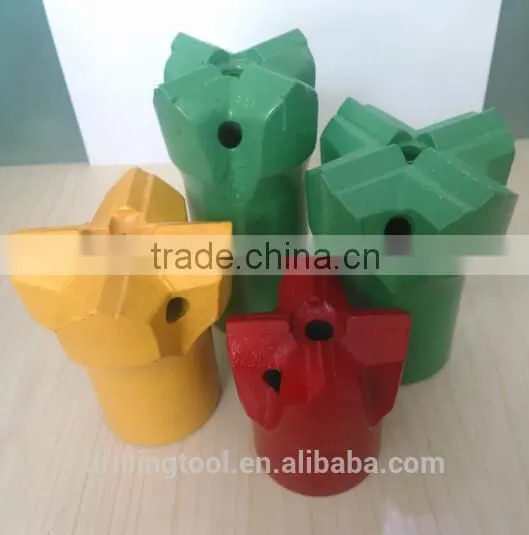

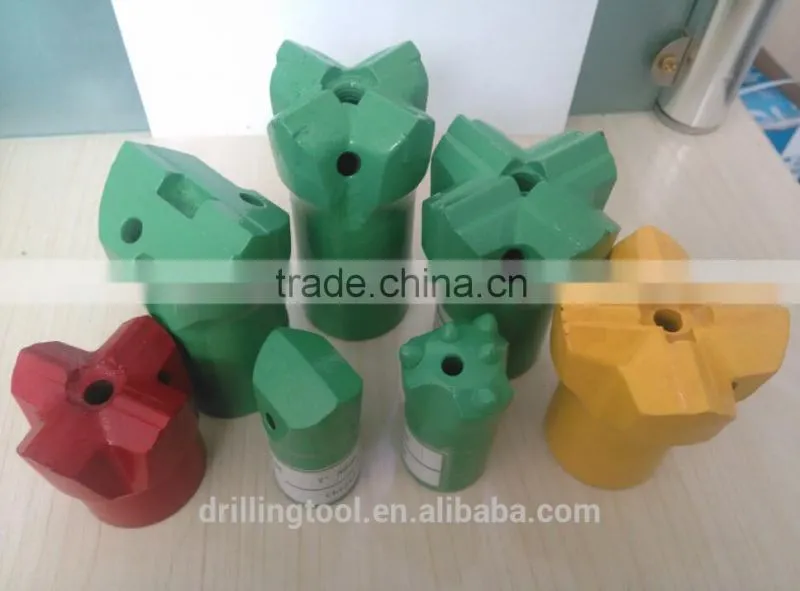

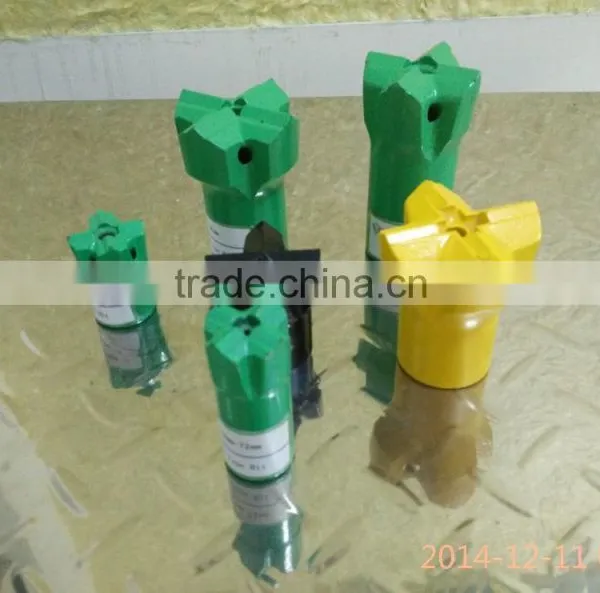

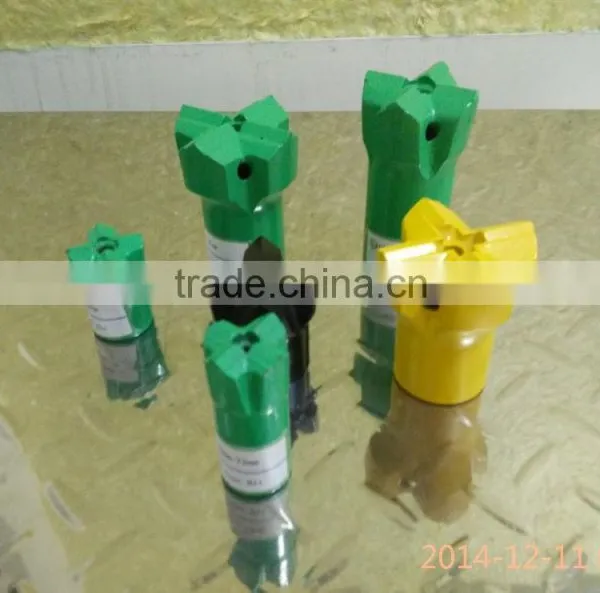

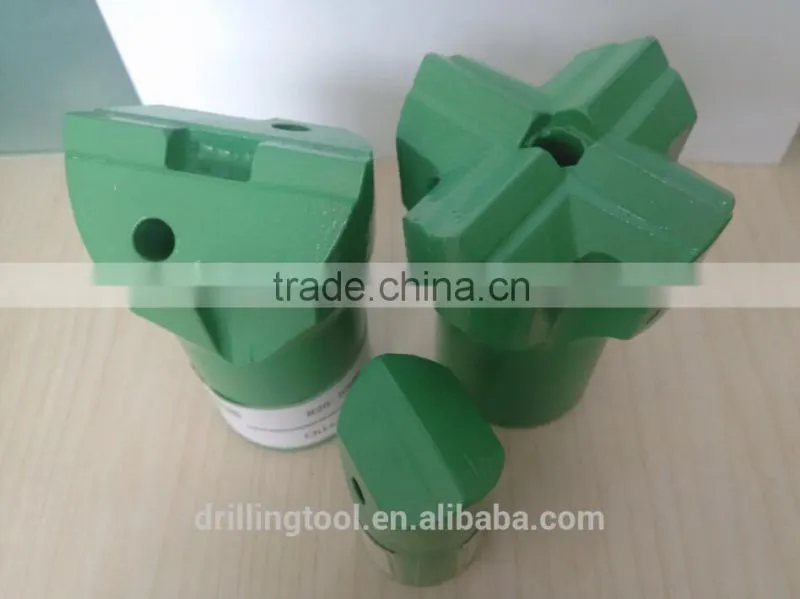

Product Pictures:
Cross Bit order information:
Thread + Bit diameter
(1) Thread: R25 R28 R32 R38 T38
(2) Bit diameter: 45mm - 76mm( Can design and manufacture as your special requirements)
1. Carton or wooden box
2. Package pictures
Main rock drilling tools:
Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel, Shank H19 x 108mm and H22 108mm.
Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7 degree, 11 degree, 12 degree.
Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod,
MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68.
Shank Adapters (Striking Bars) - equivalent to Atlas Copco, Sandvik, Furukawa, Gardner Genver, Ingersoll Rand etc.
Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)
Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
